Chapter 4: Using Your Washer
Product Service 1-800-522-7658
34

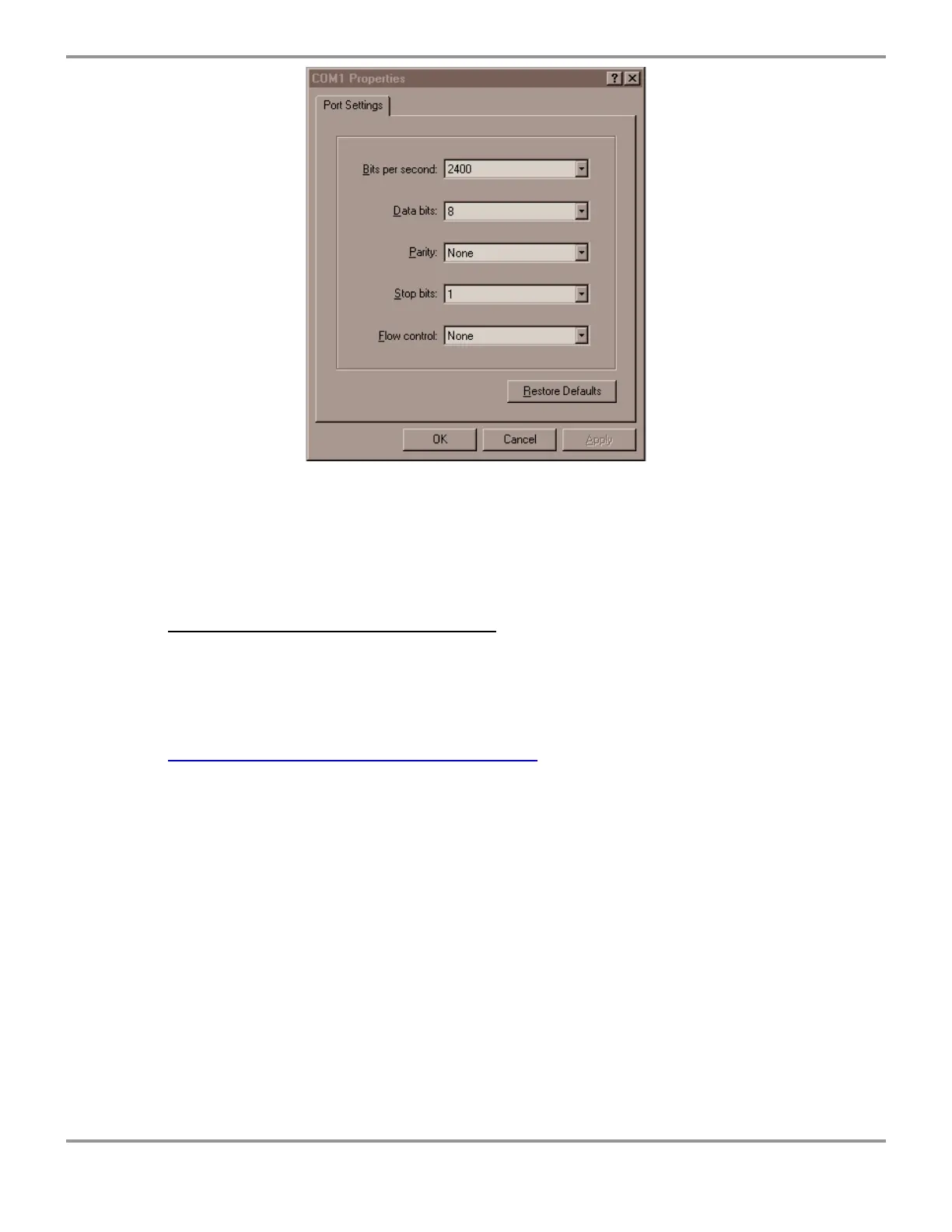

6. When the door is latched on the Washer, the data will be transmitted and
updated whether a washer cycle is running or not.
See the previous paragraph of this chapter in this manual for details on exactly
what RS-232 data is transmitted and in what order.
Connection for a stand alone printer:
The RS-232 output from the Vantage Glassware Washer can communicate
directly with a printer. One such printer is a Seiko brand Model DPU-3445-20A.
Go to the following web site for distributors:
http://www.seikoprinters.com/htm/salesreps.htm
To connect to the Labconco RS-232 connector, use a 6-wire telephone cable
connection such as a Radio Shack #279-422. Simply insert one end into the
washer RJ-25 connector (labeled RS-232) and connect the other end to the printer.
Make sure the necessary power pack supplied with the printer is connected and
the printer is on.
A sample printer output from the Labconco Vantage Washer is shown below:
Min : Sec Mode Temp. Factor Cond. Cycle Alarm
06:35 Wash 1 36 43 558 3
06:36 Wash 1 36 43 565 3
06:37 Wash1 36 43 559 3
06:38 Wash 1 36 43 556 3
06:39 Wash 1 36 43 552 3
06:40 Wash 1 36 43 560 3
06:41 Wash 1 36 43 555 4
06:42 Wash 1 36 43 553 4
06:43 Wash 1 36 43 562 4
