H50/150 Smart – User Manual
18

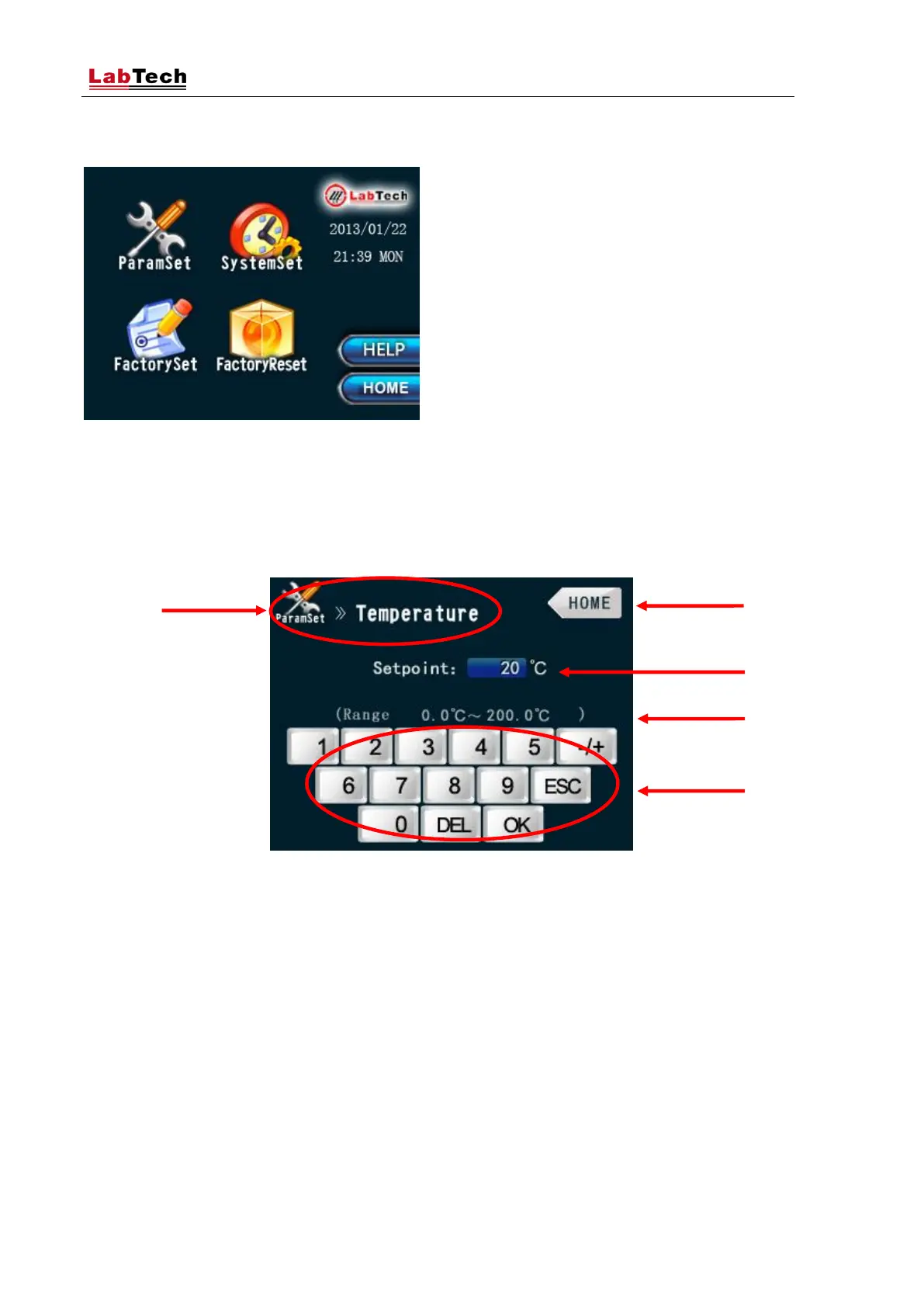

4.2.2 MAIN MENU
a) HOME: touch HOME button to return to the MAIN INTERFACE WINDOW
b) HELP: touch HELP button to show the USER MANUAL
PARAMETER SETTING
a) Page Switching: touch the area to change page under PARAMSET
b) Parameter Setpoint: touch the value to activate the area (numbers will become yellow). Use
the numeric keypad to modify it. To confirm the new value touch OK button.
c) Parameter Range: parameter setting range.
d) Numeric Keypad: keypad can only be used when the value area is activated (yellow). For
negative values touch the -/+ button in advance. Once the new value is displayed press OK to
confirm (numbers will become white). Touch ESC button to cancel modifications and display
the default value. Touch DEL button to delete the last digit selected.
e) HOME: touch HOME button to return to the MAIN INTERFACE WINDOW
