4.2 TOUCH CONTROLLER

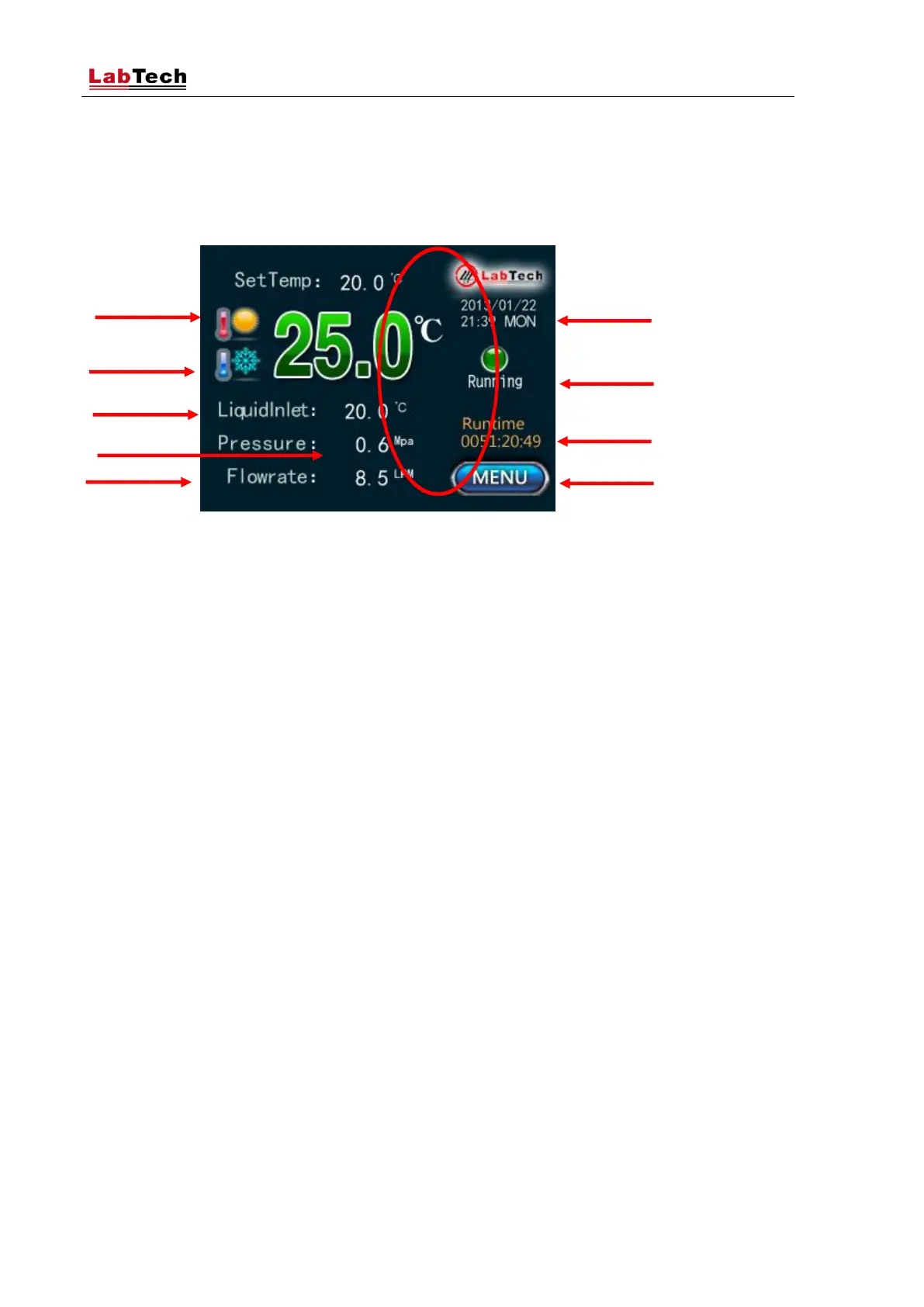

4.2.1 MAIN INTERFACE
a) Heating output indicator: the icon is switched ON when the unit is heating
b) Cooling output indicator: the icon is switched ON when the unit is cooling
c) Real time measurements: process parameters are shown on real time. Liquid InLet and
Flowrate parameters are options and can be removed from the display from FACTORY
SETTING
d) Date and time: date and local time. Enter the SYSTEM SETTING window menu to modify
them.
e) Running/Alarm status: shows the unit status between Running and Alarm. Available alarms:
Temperature Over-range > Liquid Level > Gas Pressure > Liquid Pressure > Flow Rate >Self
Testing > High Temperature > Low Temperature. Running mode indicates the unit is working
properly.
f) Running time: partial running time from the unit switch ON. When the unit is switched OFF
the timer is reset. Maximum time period: 10.000 hours.
g) Menu: enter the main MENU
h) Set temperature: shows the temperature setpoint value. Touch it to show the
TEMPERATURE SETTING window.
Heating Output Value
Settable Function
Measurements
Settable Function
Cooling Output Value
Date and Time
Menu
Running Time
Running/Alarm status
