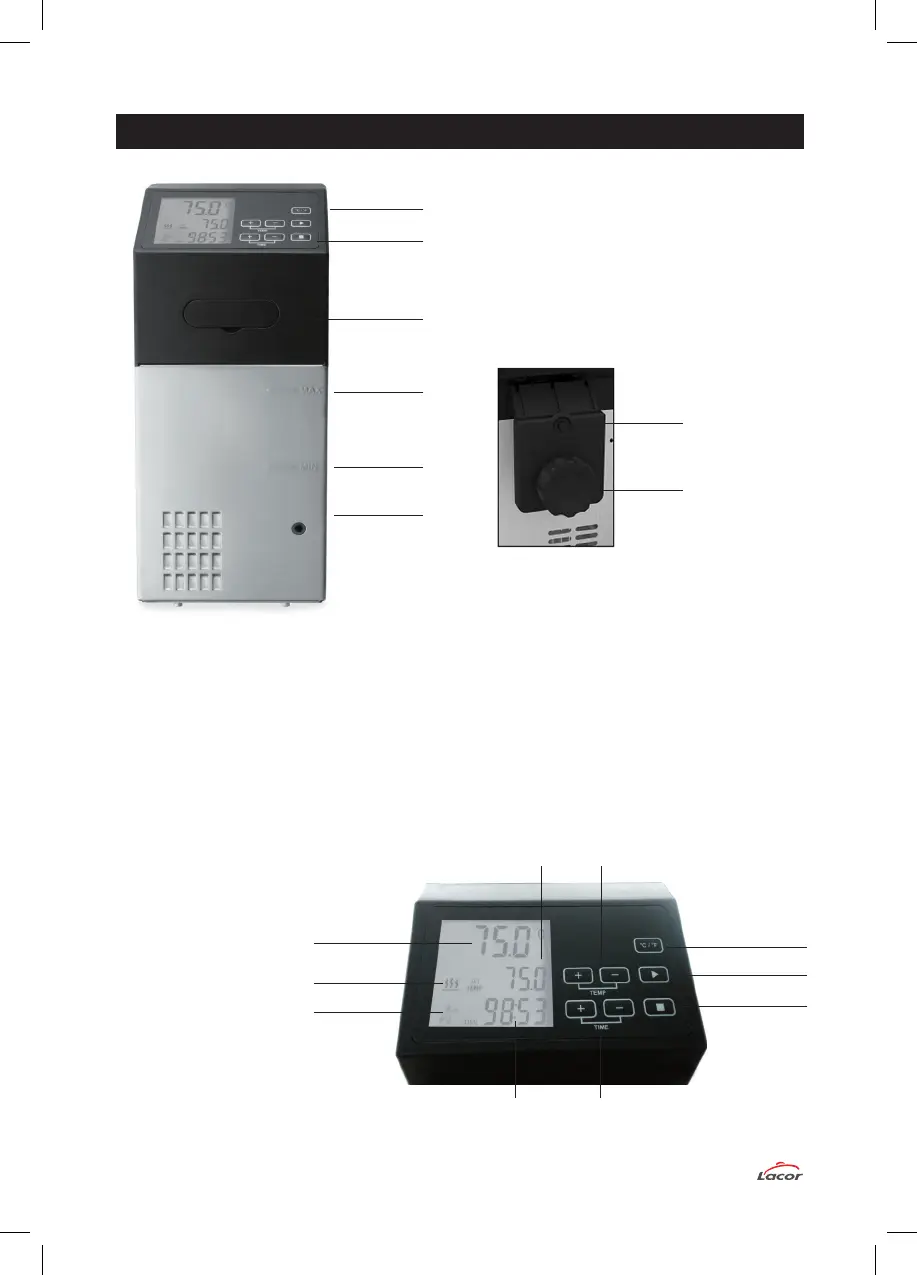

PARTS LIST
1.- ON/OFF button
2.- Body
3.- Marks the lling level (MIN - MAX)
4.- Width adjustment knob
5.- Height adjustment button
6.- Lid (The reset button is inside)
7.- Control panel
5
4
2
3
3
6
1
7
1.- ºC / ºF button: To change the measuring unit
2.- TEMP button: To select the desired temperature
3.- TIME button: To programme the cooking time
4.- START button: To start the work cycle
5.- CANCEL button: To cancel the work cycle
6.- Current temperature indicator
7.- Selected temperature indicator
8.- Time indicator
9.- Heating indicator
10.- Liquid circulation indicator
