LAE electronic CDC122T1R2 - Page 4

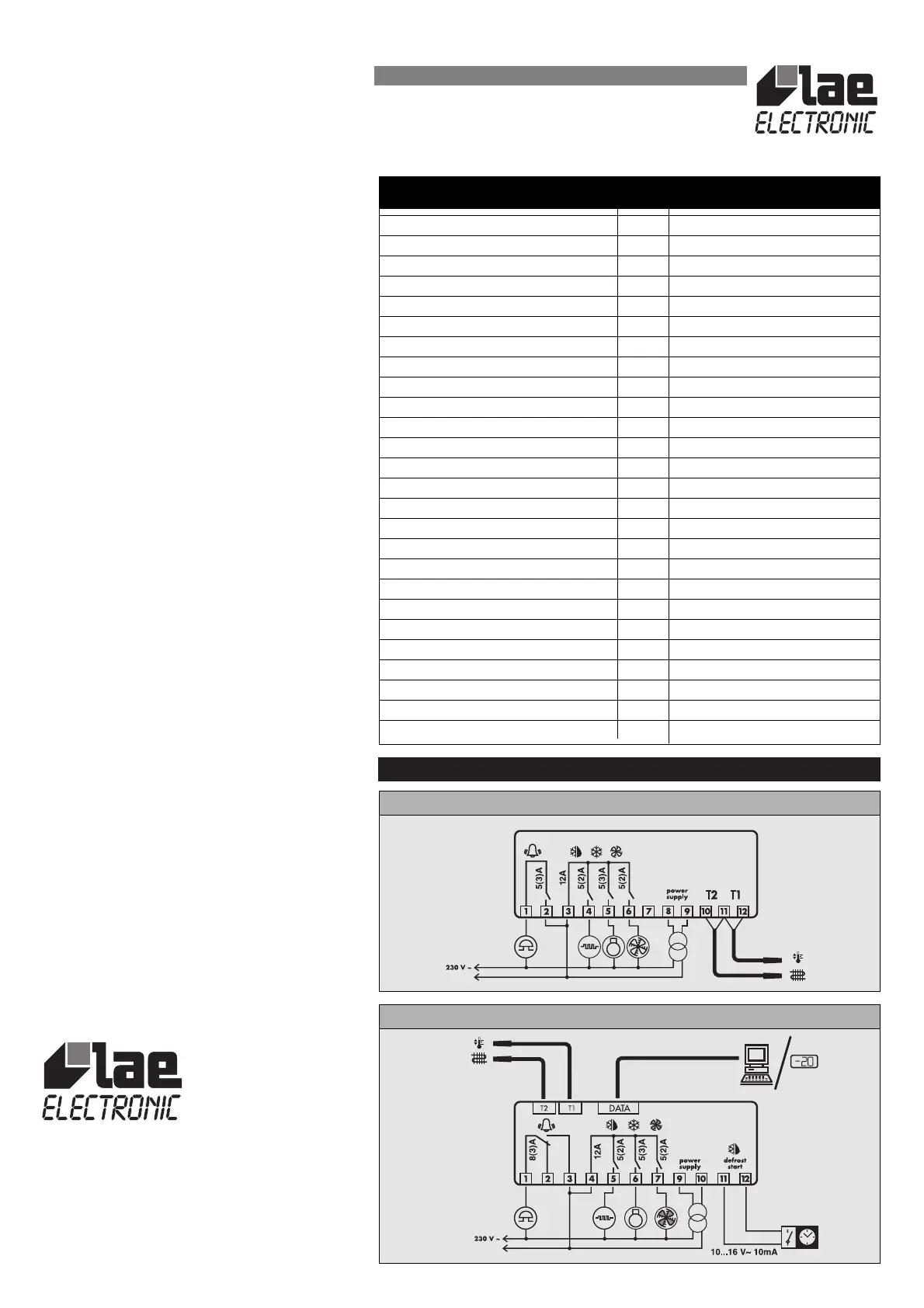

WIRING DIAGRAM
VIA PADOVA, 25
31046 ODERZO /TV /ITALY
TEL. 0422 815320 - 815303
TELEFAX 0422 814073
www.lae-electronic.com
E-mail: info@lae-electronic.com
PARTNER VENEZIA • 041 5460713
INSTRUCTIONS FOR INSTALLATION AND USE.
SETUP
1 SPL -50 ... 150 -30
2 SPh SPL ... 150 20
3 hyS 01 ... 20 02
4 coF 00 ... 10 00
5 con 00 ... 10 00
6 cdc 00 ... 10 05
7 crS 00 ... 120 00
8 drE 01 …. 99 06
9 dLi 01 ... 70 10
10 dto 01 ... 120 30
11 drP 00 ... 10 03
12 diS -01 ... 30 10
13 dty FAn; ELE; GAS ELE
14 doP con; Acc con
15 Fct -01; 00... 10 01
16 FrS -50 ... 150 -10
17 Fid 00; 01; 02 00
18 Alo -50 ... 150 -32
19 Ahi Alo ... 150 22
20 AdL -01; 00... 120 10
21 Ain 1; 2; 3 01
22 oS1 -20 ... 20 00
23 oS2 -20 ... 20 00
24 oS3 -20 ... 20 00
25 SiM 00 ... 200 00
26 Adr 00 ... 255 01
CDC122T1R3B
CDC122T1R3J - CDC122T1R3G
