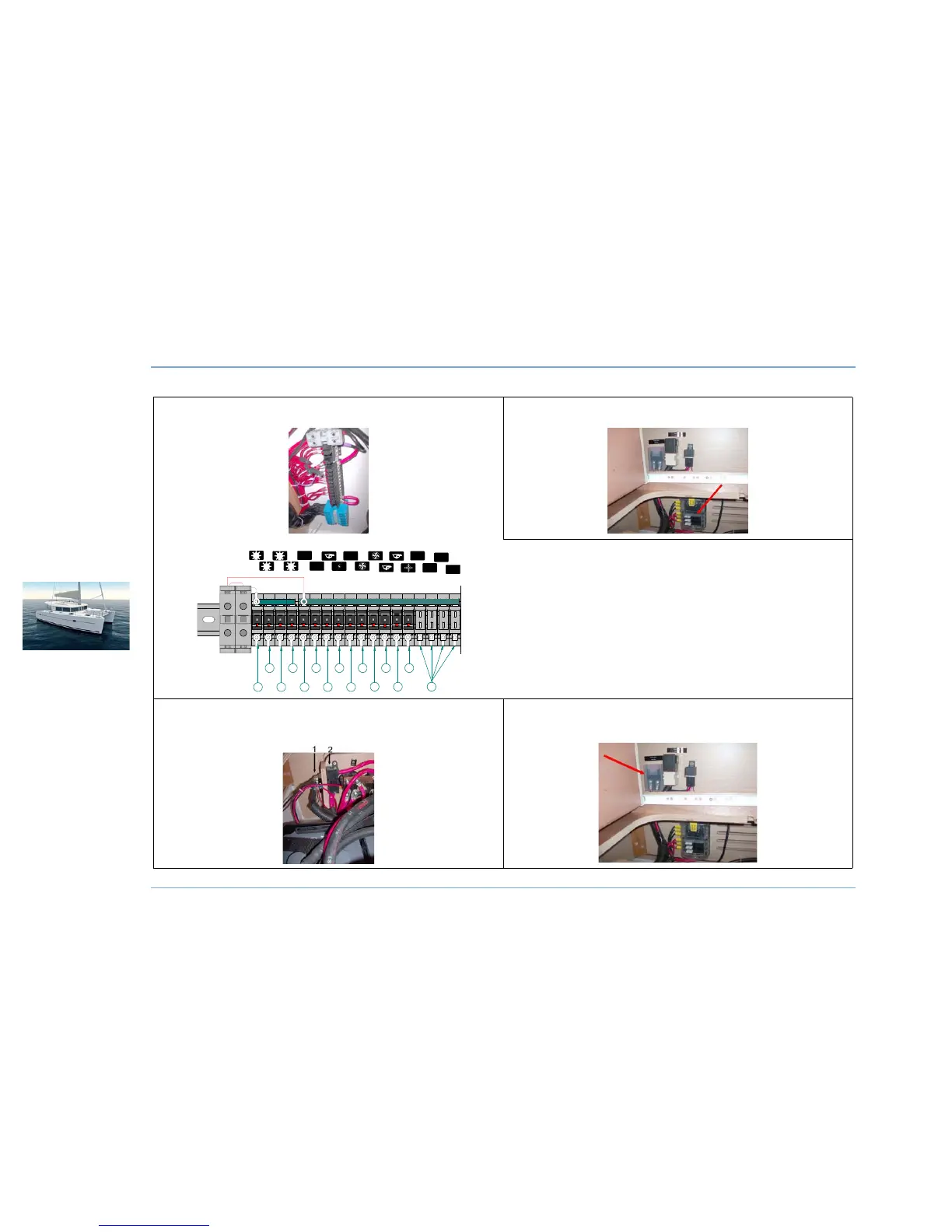

Lay out of: Back of electrical panel Lay out of: Port aft cabin (Under the bed)
Pump - (25A) electric toilet
1. Interior lighting
2. Interior lighting
3. Interior lighting
4. Interior lighting
5. Shower pump - To port
6. Shower pump - To starboard
7. Automatic bilge pump - Port
and starboard
8. 12V socket
9. VHF - Hifi
10. Square cabin fan - To star-
board
11. Square cabin fan - To port
12. Electric bilge pump - To port
13. Electric bilge pump - To star-
board
14. Fridge
15. Available ( x 4)
Lay out of: Port aft cabin
1. SHUNT - 100A
2. General fuse 12V - 100A
Lay out of: Port aft cabin
Auto pilot - (60A)
          
VHF
HIFI
douche
AUX 2
AUX 3
AUX 4
AUX 1



douche















FUSES
