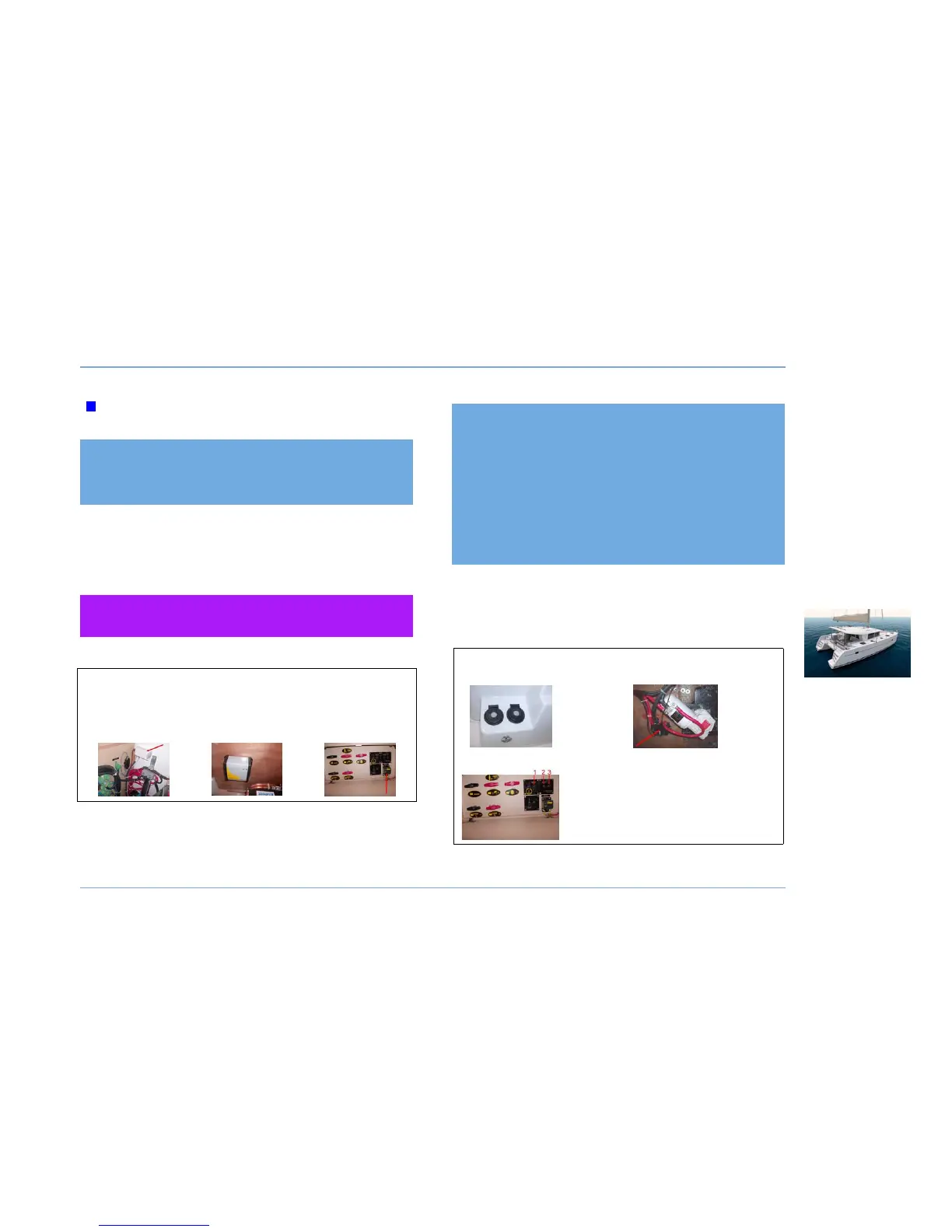

LAGOON 400
6
ELECTRICITY
57
In case an electric appliance is not energized, check:
- The main power supply.
- The switches and circuit breakers on the line.
- the relevant electrical unit.
ELEMENTS 12V
Use of 12 V circuit
RECOMMENDATION
Never leave the boat unattended when the electric fitting is on
(except the safety equipments directly connected to the battery
and protected by a circuit breaker).
WARNING
Never work on a live electric fitting.
TELEVISION
TV aerial amplifier
Lay out of:
Technical room
Inverter
Lay out of:
under berth - Port aft
cabin
30A breaker
Port aft cabin
RECOMMENDATION
- Never modify an electric fitting and relevant diagrams
yourself.
- Call in a technician skilled in marine electricity to carry out
any electric modification.
- Never change the breaking capacity (amperage) of the
overcurrent safety devices.
- Never install or replace the electric appliances (or any elec-
tric equipement) by components exceeding the capacity
(amperage) of the circuit (Watt for bulbs).
ELECTRIC WINCH
Contactors Operation relay
Circuit breakers
Lay out of: Port aft cabin
1. Electric winch - Davit - 100A
2. Electric winch - Mainsail (classic) -
125A
3. Electric winch - Genoa - 125A
ELECTRICITY
