LAGOON 400
PLUMBING
66

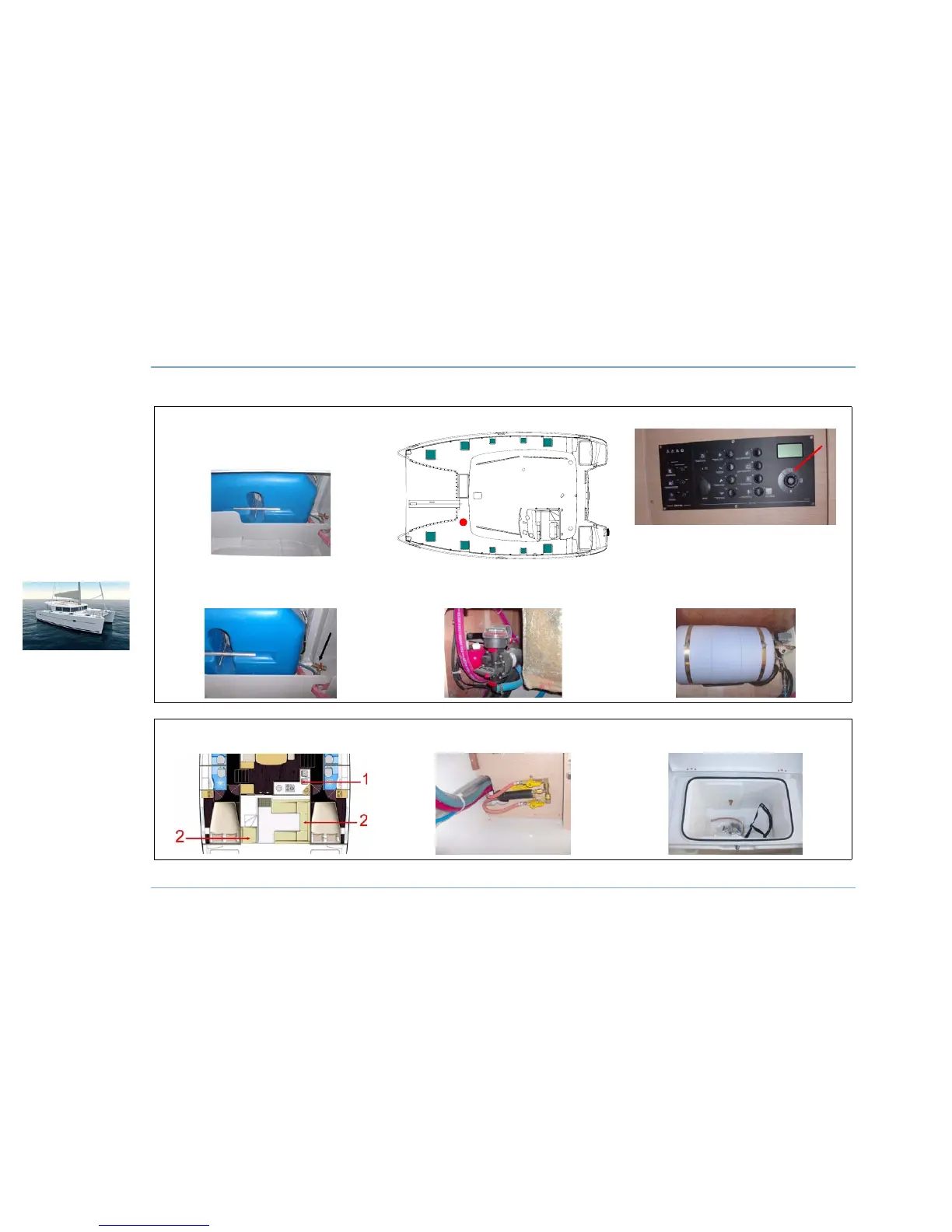

FILLING CIRCUIT
Water tank
Lay out of: Compartment - Forward
Capacity: 300 l
Extra tank: 300 l
Deck filler Gauge: on the electrical panel
Supply valve - House water
Lay out of: Cockpit locker - Forward
Water pump 12V
Lay out of: Port forward cabin
Water heater 40L 220V
Lay out of: Starboard aft cabin
Gas:
Position of elements
Supply valve - Gas
(Reference 1)
Gas cylinder locker
(Reference 2)
FRESH WATER AND GAS
