LAGOON 400
PLUMBING
70
2 - Stuffing box.
3 - Non-return valve.
4 - Electric bilge pump.
5 - Collector.
6 - Waste water drainage from bathroom.
8 - Sump.
9 - Drainage outlet.
Electric bilge pump 12V
Lay out
of: Passageway
Port and starboard
Bilge pump system
watertight compartment
Manual bilge pump ( x 2)
Lay out of: Cockpit
Operation

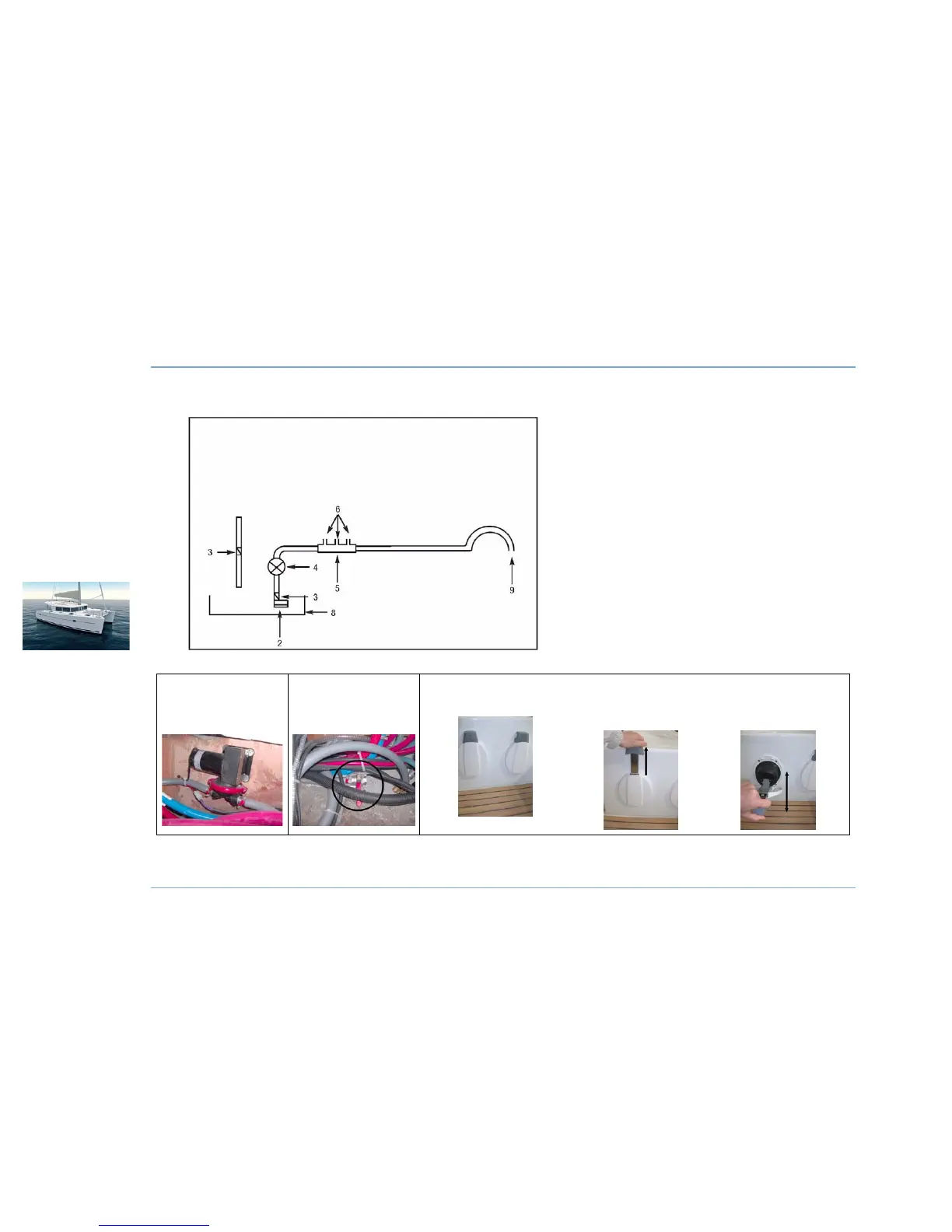

SCHEMATIC DIAGRAM DRAINAGE SYSTEM & BILGE PUMP SYSTEM
