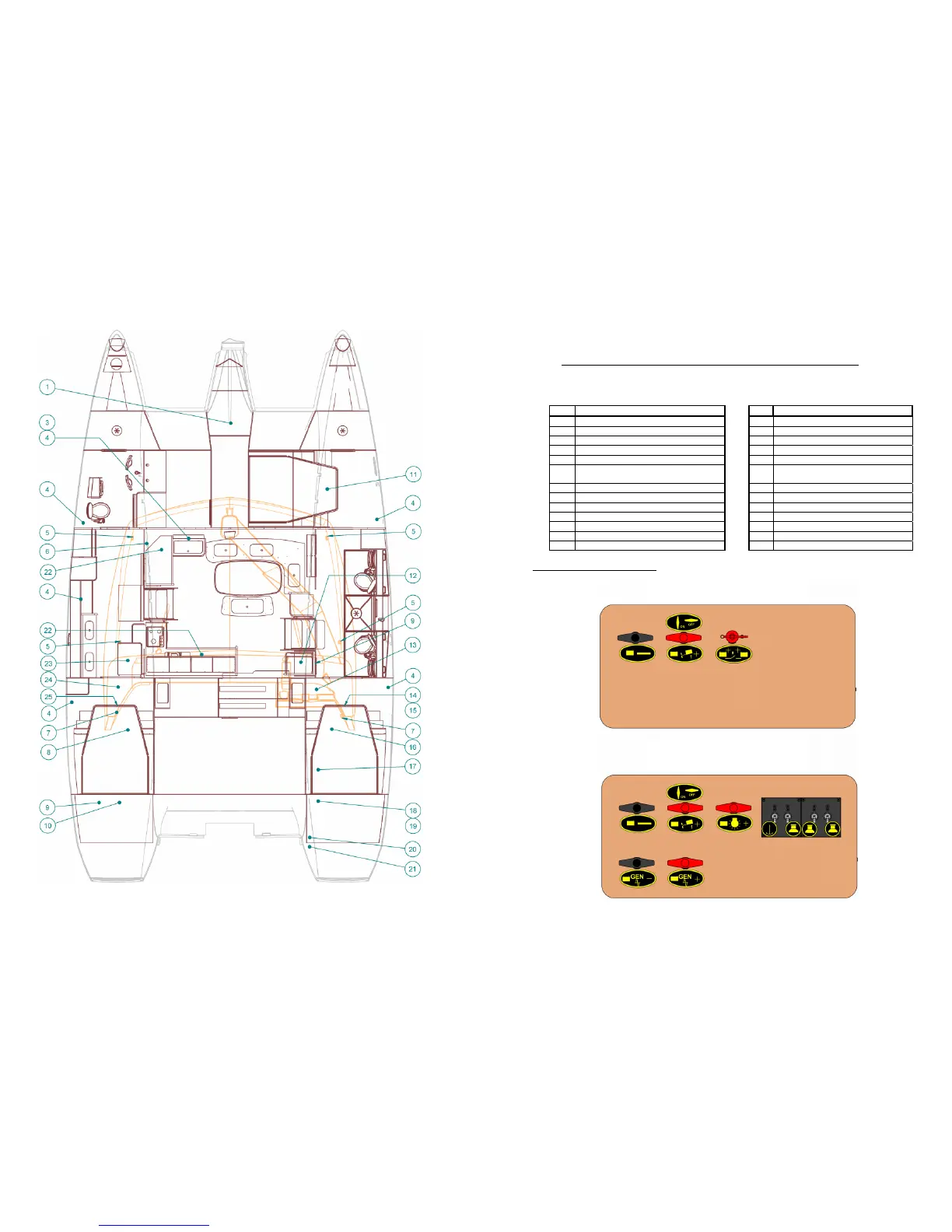

4.3.3 Location of battery switches, switchboards and electrical appliances…
- Before changing a fuse, switch off the battery switches.
REF DESCRIPTION REF DESCRIPTION
1 Windlass 14 Windlass circuit breaker
2 Forward port cabin air conditioning 15 Battery switch
3 Car radio 16 Aft port cabin air conditioning
4 220/110V socket 17 Battery charger
5 Saloon speaker 18 Shore supply circuit breaker
6 Saloon air conditioning 19 Air conditioning shore supply circuit
breaker
7 Cockpit speaker 20 Air conditioning shore supply
8 Aft port cabin air conditioning 21 Shore supply
9 220/110V circuit breaker 22 Refrigeration compressor
10 Automatic pilot computer 23 Microwave oven
11 Forward starboard cabin air conditioning 24 Water heater
12 Electrical switchboard 25 Battery switch
13 Winch relay
Operation of battery switches
Por
t
Starboard
