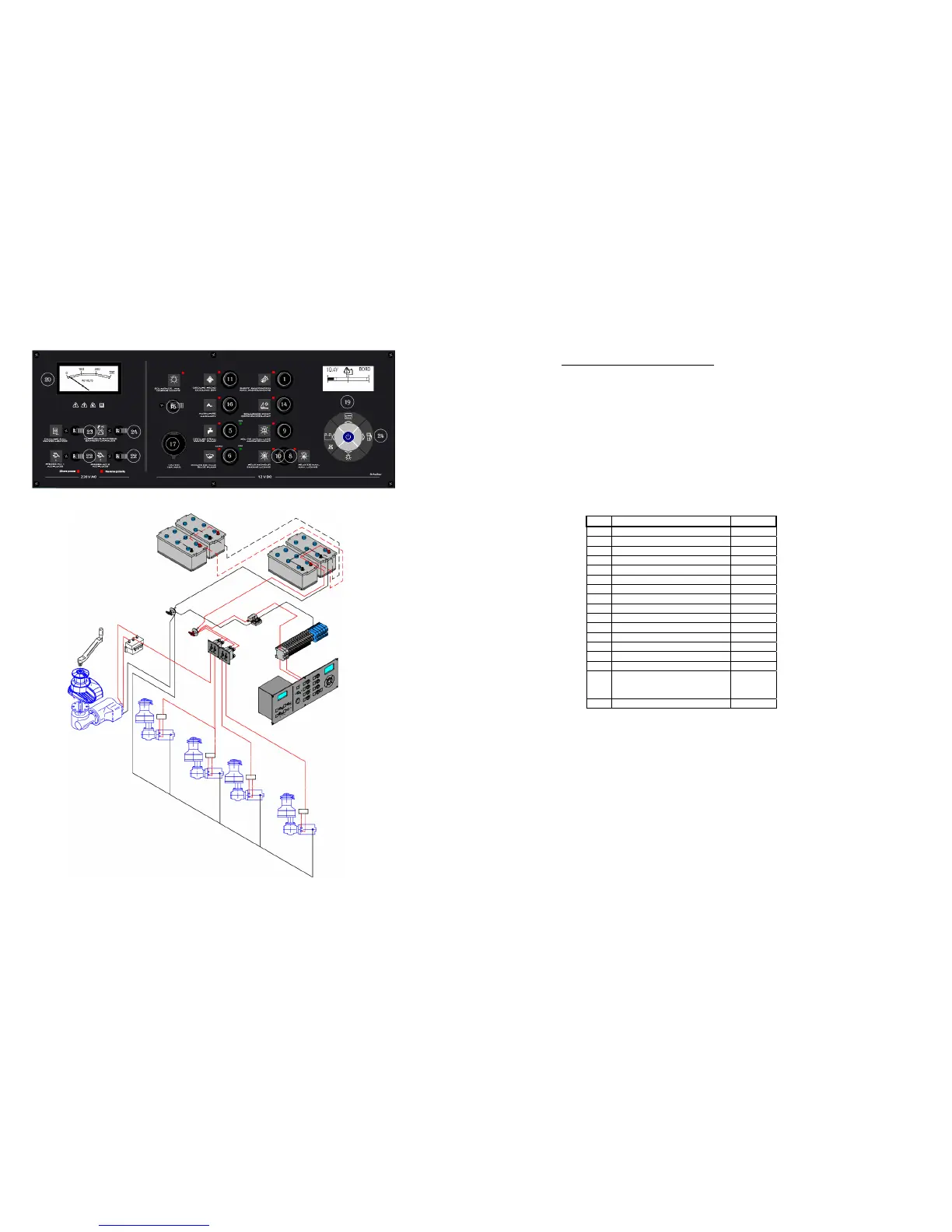

4.3.4 Switchboard and electrical systems
- Before changing a fuse, switch off the battery switches.
The fuses of functions presented on the switchboard are found behind it.
Some equipment could be on option.
REF FUNCTION FUSE
1 Navigation equipment 10A
5 Water pump 10A
6 Bilge pump 15A
8 Navigation lights 10A
9 Mooring lights 10A
10 Steaming light 10A
11 Refrigerator 10A
14 Deck light 10A
15 Below decks lighting 10A
16 Comfort 15A
17 12V socket 15A
18 Fuel gauge
19 Water gauge
20 Voltmeter
22 220V sockets
23 Water heater 10A (220V)
or
15A (110V)
24 Charger 10A
