Lagoon 46 - Electrical Panel Layout

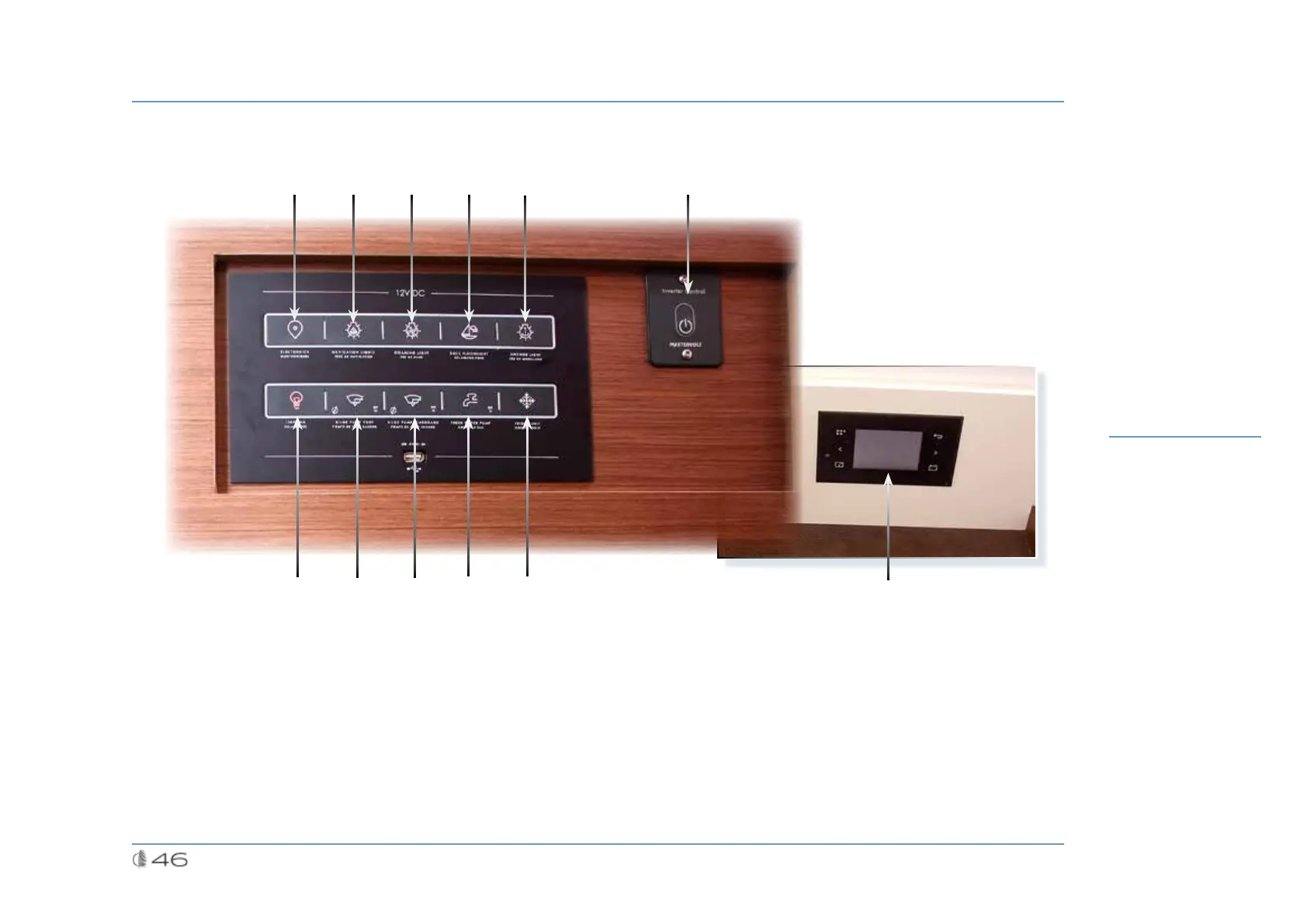

ELECTRICAL PANELS
13
1
SPECIFICATIONS
7 - Internal lighting.
8 - Port bilge pump
9 - Starboard bilge pump.
10 - Water pump.
11 - Refrigerated unit.
1 2
3 4
5
6
7
8 9
10
11
12
1 - Electronics.
2 - Navigation lights.
3 - Steaming lights.
4 - Deck searchlight.
5 - Mooring light.
6 - 12 V / 220 V - 2000 Va inverter
control (optional).
12 - Control touch screen
Screen used to:
- check the levels of charge and voltage in the battery
banks, as well as the gauges for the freshwater and fuel
tanks.
- control the boat’s 220 V power supplies (generator and
shore socket).
- switch the generator on and off.
