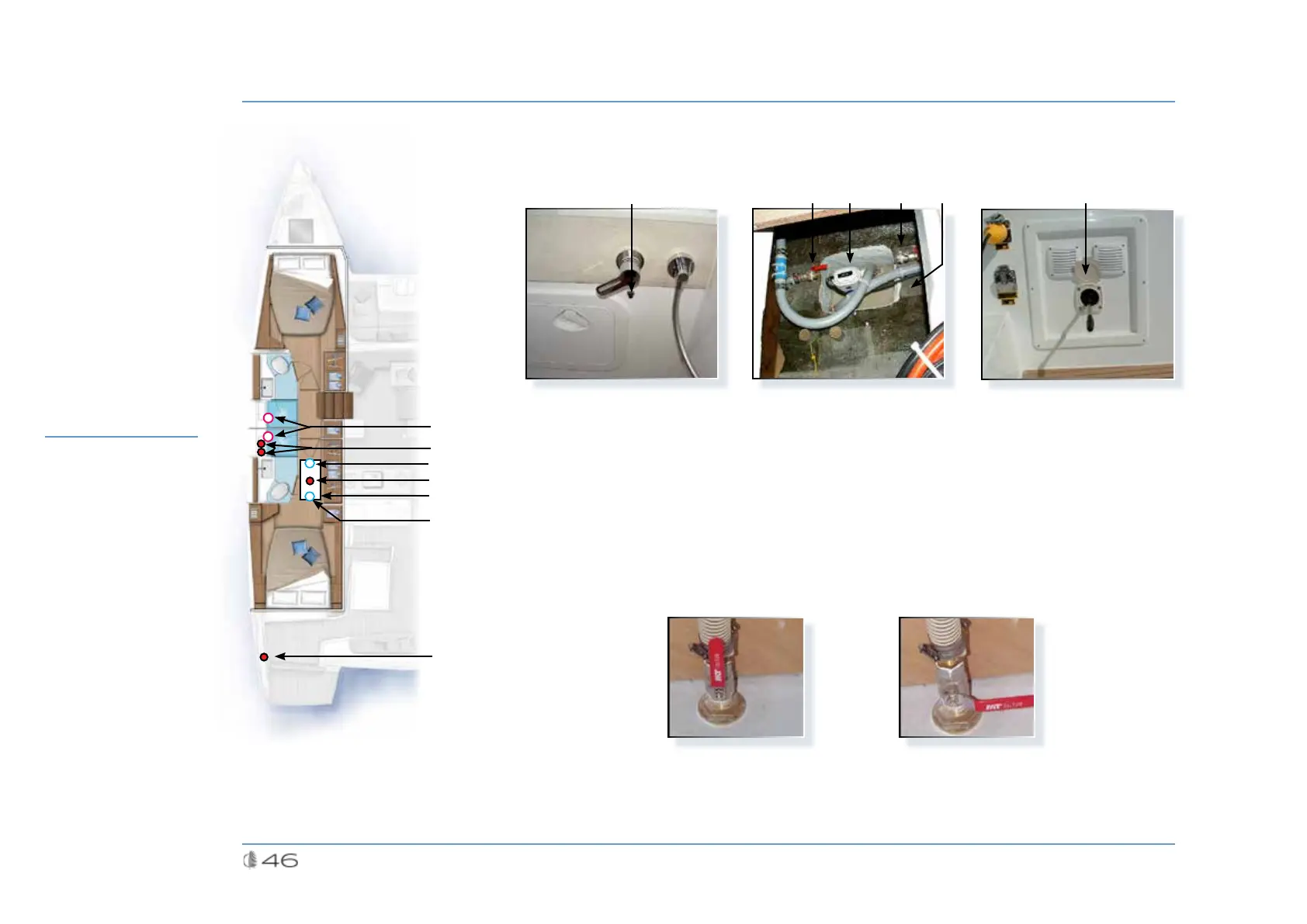

BILGE PUMP SYSTEM - GREY WATERS
60
WATER SYSTEMS
1 - Shower pump switch.
2 - Shower drain pump.
3 - Front / aft compartment outlet valve.
4
3
5
3
6
4 - Electric bilge pump.
5 - Hull sump.
6 - Manual bilge pump.
Nota: each valve in the boat is identified.
6
1
3 4 3
5
SEA-COCK
OPEN
SEA-COCK
CLOSED
1
2
Note: each hull has the same components.
The same layout can be observed
in the other version.
