Please note: you can find the same locations
in the other accommodation version.

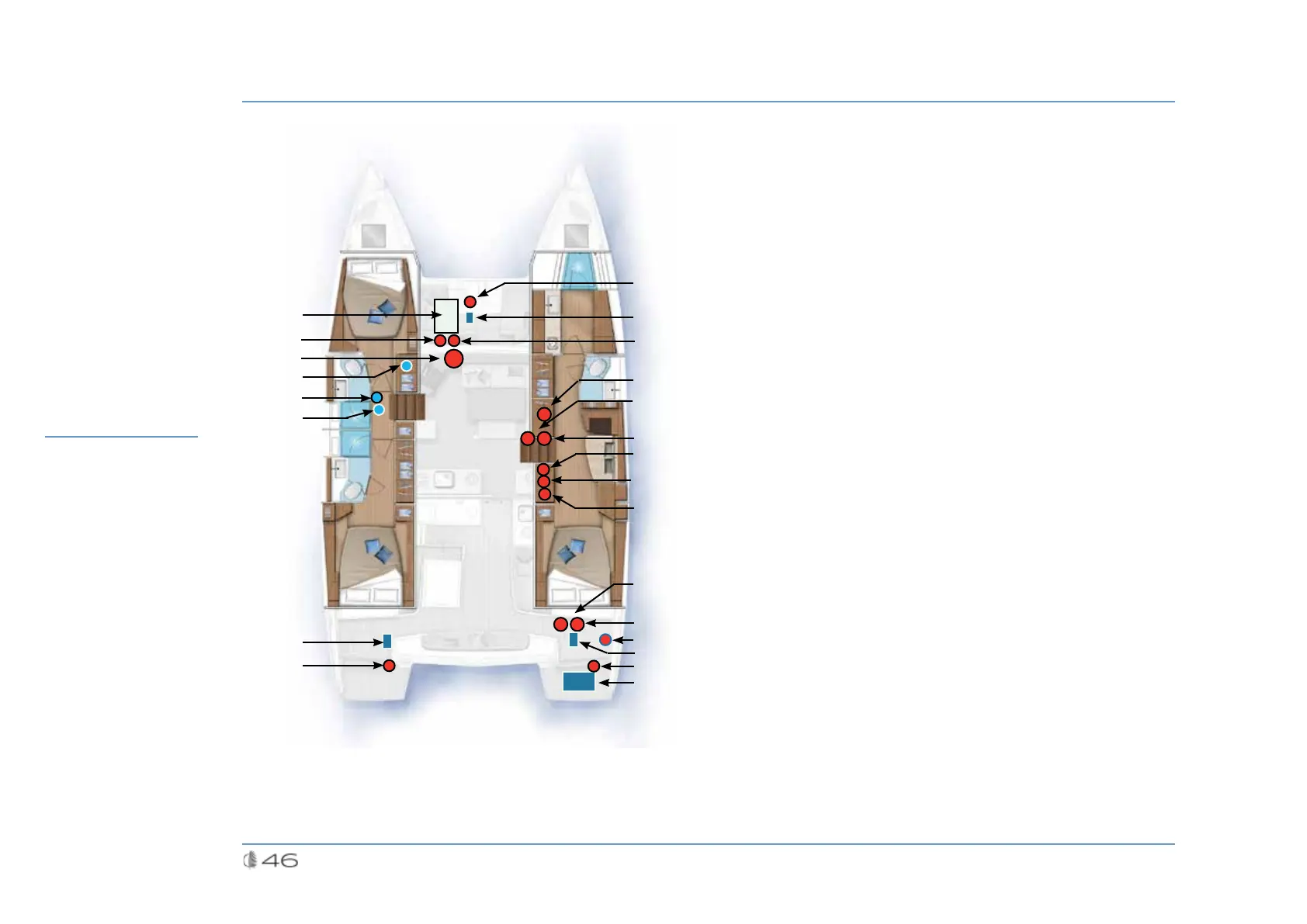

ELECTRIC LAYOUT
80
ELECTRICITY
1 - Generator.
2 - Generator automatic breaker.
3 - Touch screen.
4 - Drain valve of generator.
5 - Generator water filter.
6 - Generator water inlet valve.
7 - Engine battery.
8 - Port engine cut-out +
coupling / engine batteries cut outs.
9 - Generator cut outs.
10 - Generator battery.
11 - Generator battery charger.
12 - Manual emergency switches.
13 - Electrical panel.
14 - Inverter switch.
15 - 12 V / 110 V - 220 V inverter.
16 - Inverter automatic breaker.
17A - Circuit breakers - air conditioning + domestic 110 V - 220 V.
17A - Circuit breakers - equipment 12 V.
18 - Battery chargers.
19A - Automatic breaker of the shore power socket - Board.
19B - Automatic breaker of the shore power socket - Air conditioning.
20A - 110 V - 220 V shore power socket / Board.
20B - 220 V shore power socket / Air conditioning.
21 - On board and starboard engine cut-outs.
22 - 12 V domestic batteries.
20
19
18
7
12
13
15
17
11
2
3
4
6
5
8
7
21
22
14
16
1
10
9
