Laguna Tools Laser EX - Unboxing & Inventory

12
2. Setup
CO2 Laser Machine © 2018 Laguna Tools 8/27/2018
2. SetupEN
2.3 Unboxing & Inventory
The Laser Machine will arrive in an insulated wooden crate to prevent shipment
damage. Use the appropriate tools to remove the lid and four vertical sides of the
wooden crate. Do not unpack the laser tube until prompted in the setup procedures.

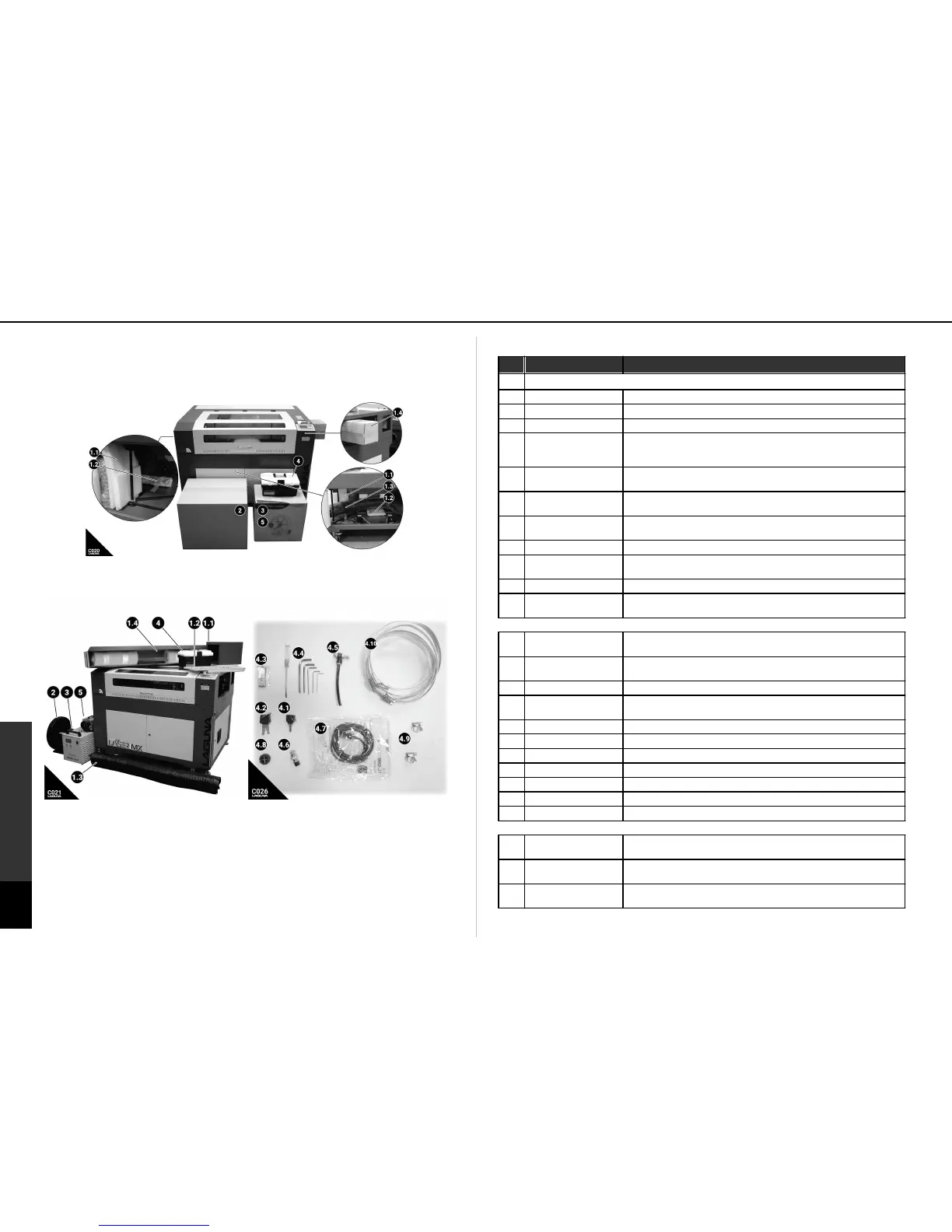

Fig C020: MX (MLTX6011) Receiving (1.1) Laser Tube Cover. (1.2) Right Side upper Panel.
(1.3) Exhaust Tubing. (1.4) FRAGILE C02 Glass Laser Tube. (2) Water Chiller. (3) Exhaust
Fan. (4) Small Parts Box. (5) Air Pump.
Fig C021: MX (MLTX6011) Inventory. (1.1) Laser Tube Cover. (1.2) Right Side Upper Panel.
(1.3) Exhaust Tubing. (1.4) FRAGILE C02 Glass Laser Tube. (2) Water Chiller. (3) Exhaust
Fan. (4) Small Parts Box. (5) Air Pump.
Fig C026: Toolbox contents. (4.1) Ignition Keys - smaller of the three sets. (4.2) Locking
keys. (4.3) USB Thumb Drive - Software and Help Files. (4.4) Tools. (4.5) Air Valve (4.6)
Universal Connector. (4.7) Spare Limit Switch. (4.8) Alignment Cross-hairs. (4.9) Water
Hose Clamps. (4.10) Exhaust Hose Clamps.
Inventory
Key
Name
Description
1
MX CO2 Laser Machine
1.1
Laser Tube Cover
Provides an enclosure for the extended length laser tube.
1.2
Right Side Upper Panel
Encloses machine - must be installed to operate laser machine.
1.3
Exhaust Tubing
Used in Exhaust System
1.4
FRAGILE C02 Glass Laser
Tube
USE EXTREME CAUTION WHEN HANDLING. The glass laser tube transfers
electrical energy into a light source that is concentrated and then directed
through the mirror assemblies to cut, engrave, or sinter materials.
1.5
Honeycomb Table
NOT SHOWN: The honeycomb table will arrive pre-installed and is used as a
platform for work pieces.
2
Water Chiller
Chills and pumps water through the glass laser tube to effectively cool the
machine.
2.1
Water Tubing x 2
NOT SHOWN: Connect Chiller to Laser Machine through inlet and outlet ports
on rear of laser machine.
2.2
Power Cable
NOT SHOWN: Power connection for Water Chiller.
2.3
Connection Cable
NOT SHOWN: Connection Cable From Laser Machine to Water Chiller. AKA
"Alarm Cable"
3
Exhaust Fan
Pulls fumes and polluted air from the laser machine to a safe location.
3.1
Metal Expanding Exhaust
Ducting
NOT SHOWN: Used from Exhaust fan outlet to direct polluted air away from
operator.
4
Small Parts Box
Contains all smart parts, including adjustment tools, spare parts, and
software installers.
4.1
Ignition Keys - smaller of
the three sets
Starts or stops the laser machine through the ignition switch.
4.2
Locking Keys
All four keys lock or unlock each panel on the laser machine.
4.4
USB Thumb Drive
Contains Ruida Laser Works Software package installer, Owner's Manuals,
and Setup Videos.
4.4
Tools
Setup and Adjustment Tools
4.5
Air Valve
Used to regulate air flow form the air pump
4.6
Universal Connector
Used with the purchase of rotary adapter accessory.
4.7
Spare Limit Switch
To repair a faulty limit switch in the x or y limit of the drive system.
4.8
Alignment Crosshair
Used in alignment procedure to help align laser beam to mirror center.
4.9
Water Hose Clamps
Used to fasten tubing to the chiller inlet and outlet.
4.10
Exhaust Hose Clamps
Used to fasten tubing to exhaust ports.
5
Compressor
Supplies compressed air through the laser head assembly to prevent fire and
damage to laser lens.
5.1
Air Hose Fitting
NOT SHOWN: Screws into the compressor and allows for air hose
attachments.
5.2
Air Hose
NOT SHOWN: Used to connect the compressor and the Air Inlet on Laser
machine.
