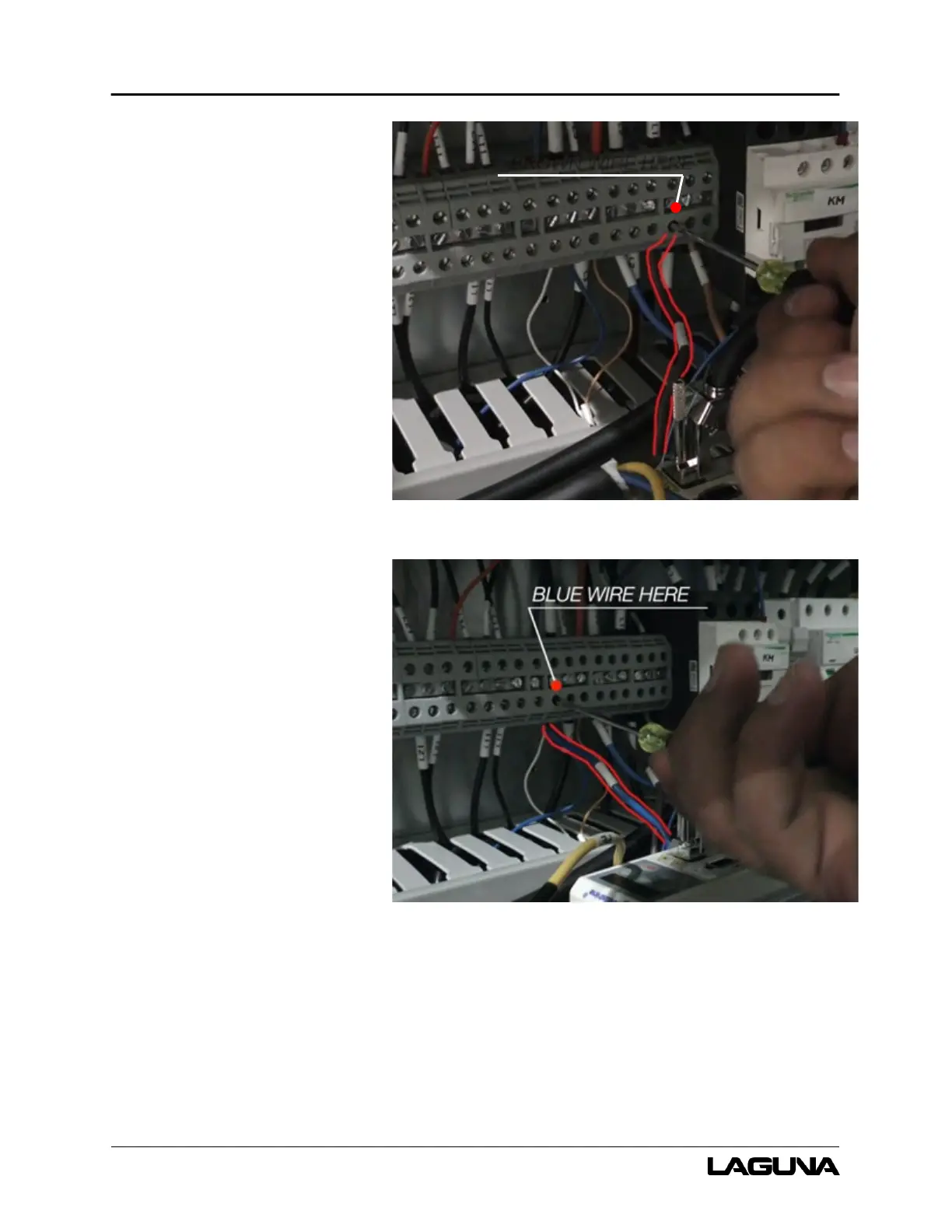

2. Insert the brown wire into the L2
block terminal.
a. Use a small flathead
screwdriver to tighten
the lead.
Figure 6–169
3. Insert the blue wire into the in
the area shown in Figure 6-171.
a. Use a small flathead
screwdriver to tighten
the lead.
Figure 6–170
BROWN WIRE HERE
