Tenioning attachment [optional]

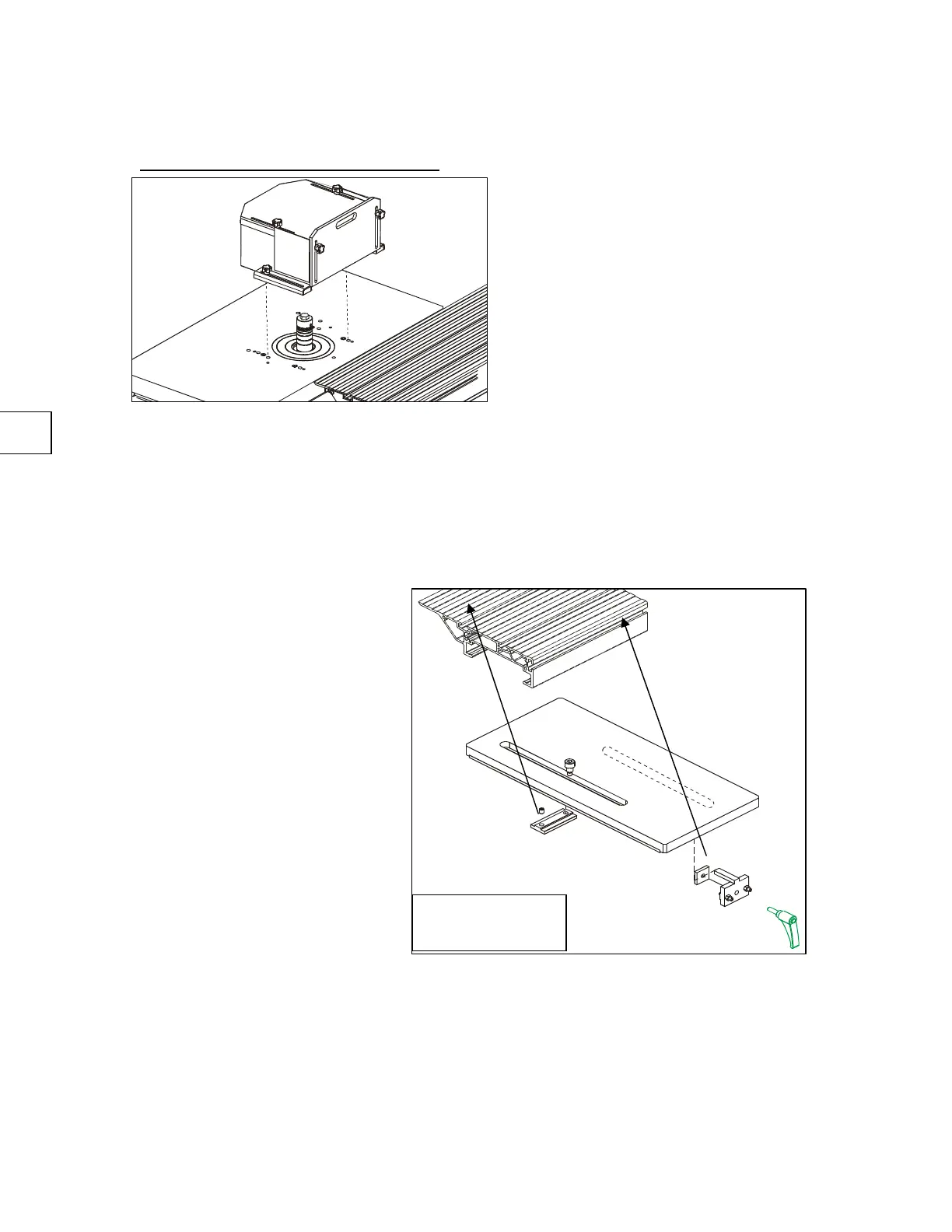

1. Fit the tenoning hood with the bolts as shown.
Note: Loosening the bolts, sliding to the required position and tightening the
bolts can adjust the hood forward and back.
2. To vertically adjust the front guard, loosen the clamping bolts, move the
panel to the vertical position required and tighten the bolts.
3. The “T” bolt fits into the “T” slot that is closest to the table. This will
locate the tenoning plate on the sliding table and its location is covered
later.
4. Fit the square nut into
the “T” slot on the front
of the sliding table and
attach the key with the
ratchet screw, but do
not fully tighten.
Fitting the
tenoning table
26
