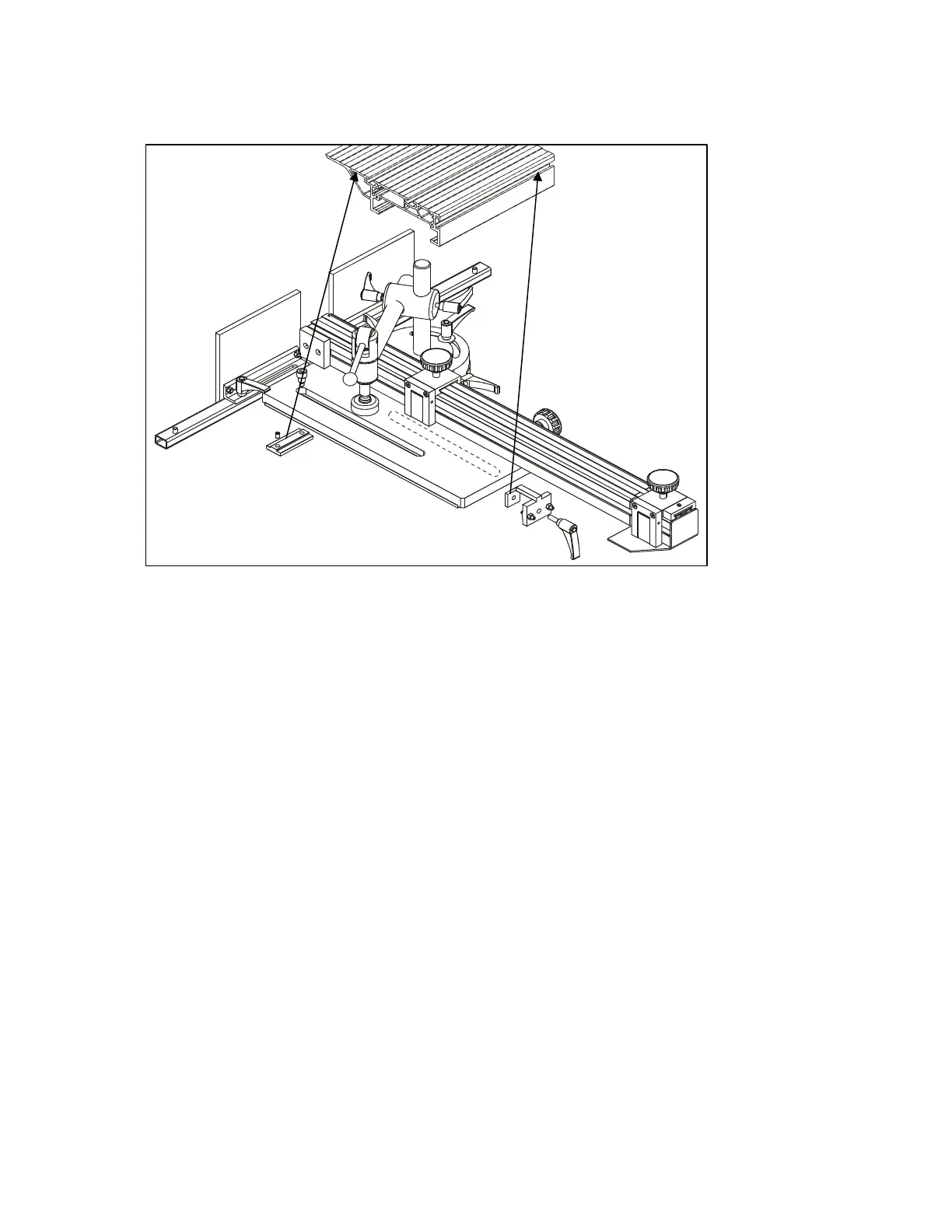

5. Fit the tenoning plate to the key and slide to the position that is
comfortable for the type and size of work that you intend to do.
6. Slide the “T” bolt so that the threaded hole locates under the slot in the
table. Fit the screw through the slot and tighten. Tighten the allen set
screw so that it clamps the “T” bolt in position in the “T” slot.
7. Check the movement of the tenoning plate by loosening the allen screw
that clamps the plate to the “T” bolt and slide the plate forward and back.
8. Check that the plate is square to the sliding table with an engineers
square. If adjustment is needed, loosen the allen screw in the table slot.
Loosen the ratchet clamp screw and the lock nuts on the key bracket.
Adjust the screws; only make only very small adjustments. Re-clamp the
ratchet screw, then the allen screw and re-check. Readjust if necessary.
9. Mount the miter fence, guards and clamp as shown.
10. The rule in the fence aluminum extrusion can be adjusted if required as
follows. Loosen the plastic screw in the aluminum strip that the rule
mounts too. Slide the rule to the correct position and re-tighten the
screw.
27
