Operator's Manual – Mega Stacker Lite
© LAI GAMES
Page 12
TICKET DISPENSER

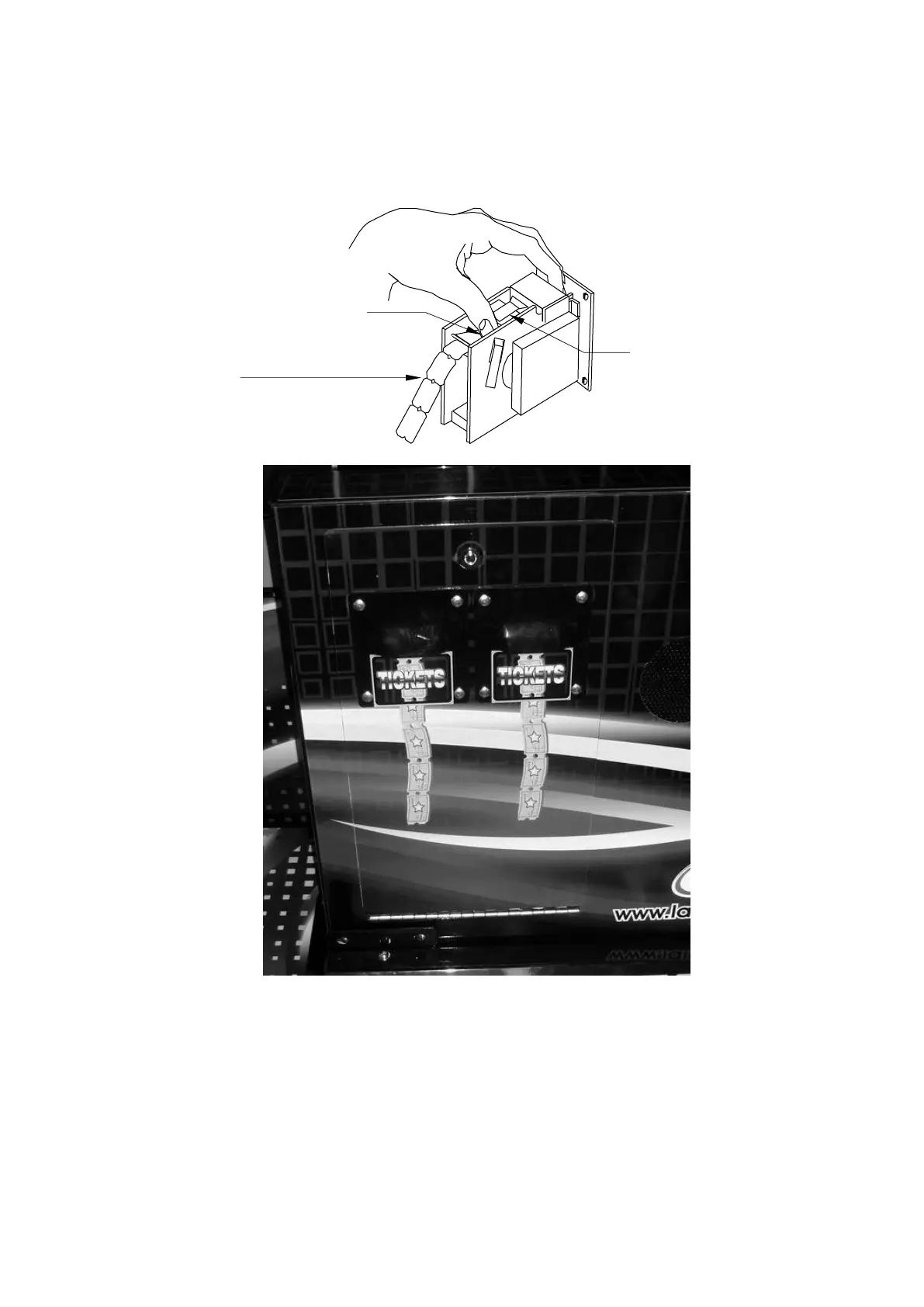

The Ticket Notch switch (C1) can be activated either from the Ticket Feed button on the Ticket
Dispenser PCB or by manually pushing the tickets from the ticket holder through the dispenser
after releasing the ticket tension roller.
To ensure that even the largest prizes are paid out quickly, Mega Stacker Lite has two
ticket mechs installed which can dispense tickets simultaneously.
ROLLER TENSION SPRING
TICKET PIVOT BRACKET
NOTCH
H
