Troubleshooting
− If the pump does not operate,
please check rst whether the
power supply is operating
correctly.
− If this does not resolve the
problem please unplug the
pump several times.
− If this still does not result in
the pump starting, it is
probably blocked by particles
or deposits in the system.
− Drain the system and remove
the pump.
− Open the pump by removing
the four housing screws at
the bottom.
− Remove the pump housing and
pull out the rotor.
− Clean the rotor and the stator
with a clean cloth and purge
all dirt from the pump housing.
− After reinserting the rotor into the stator perform a brief run test to make
sure that the rotor is spinning up. Caution: To avoid the introduction of
water into the electronics the pump should be completely dry before this
test is done.
− If the rotor is spinning in the above test, remove the o-ring from its seat
and clean it carefully.
− Re-insert the seal ring, place the pump housing on top of the motor and
screw it in place using the four screws.
− If the pump still won’t work or if the rotor does not run during the run test
the pump needs to be replaced.

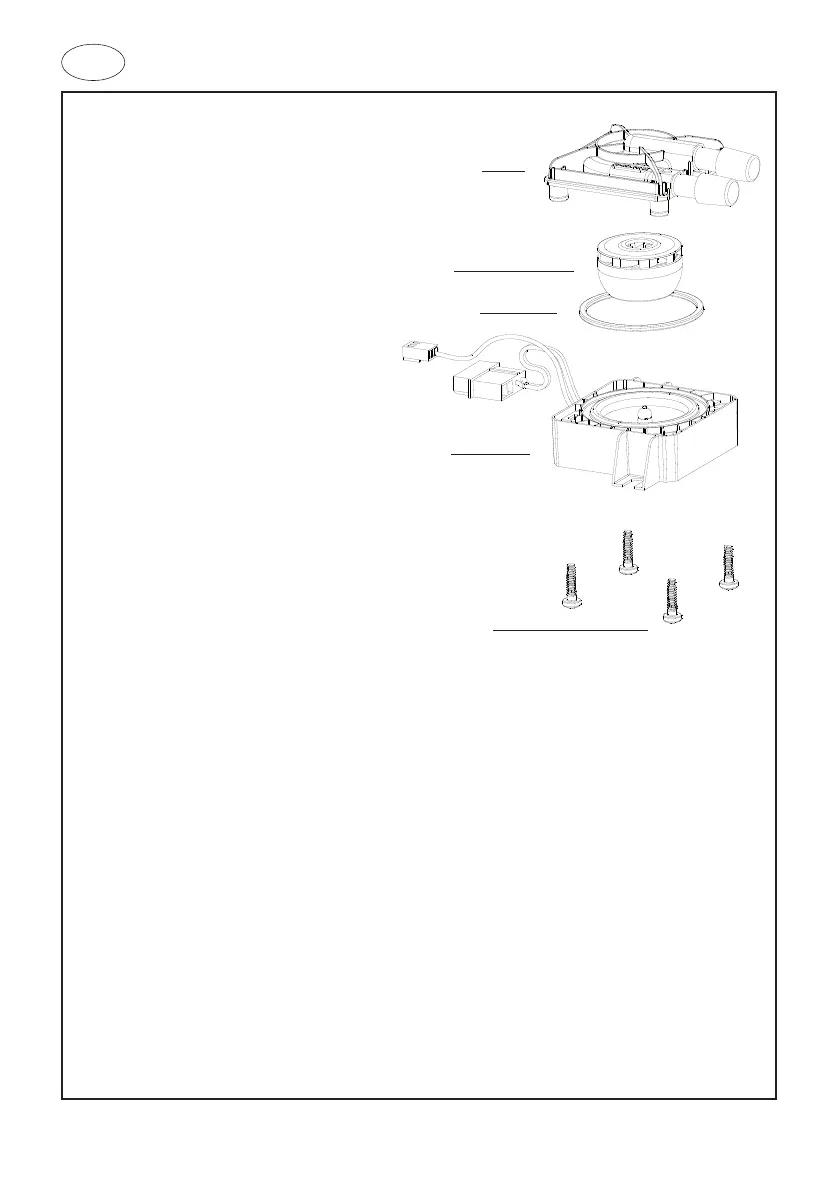

Pump
housing
Rotor
Seal ring
Stator
Housing
screws
