If the BL654 on the development board is powered from 1.8V supply, then you must use the 1.8V version of the FTDI USB-
UART cable. UART signal levels always need to match the supply voltage net VDD_nRF_SW of the BL654 development
board.

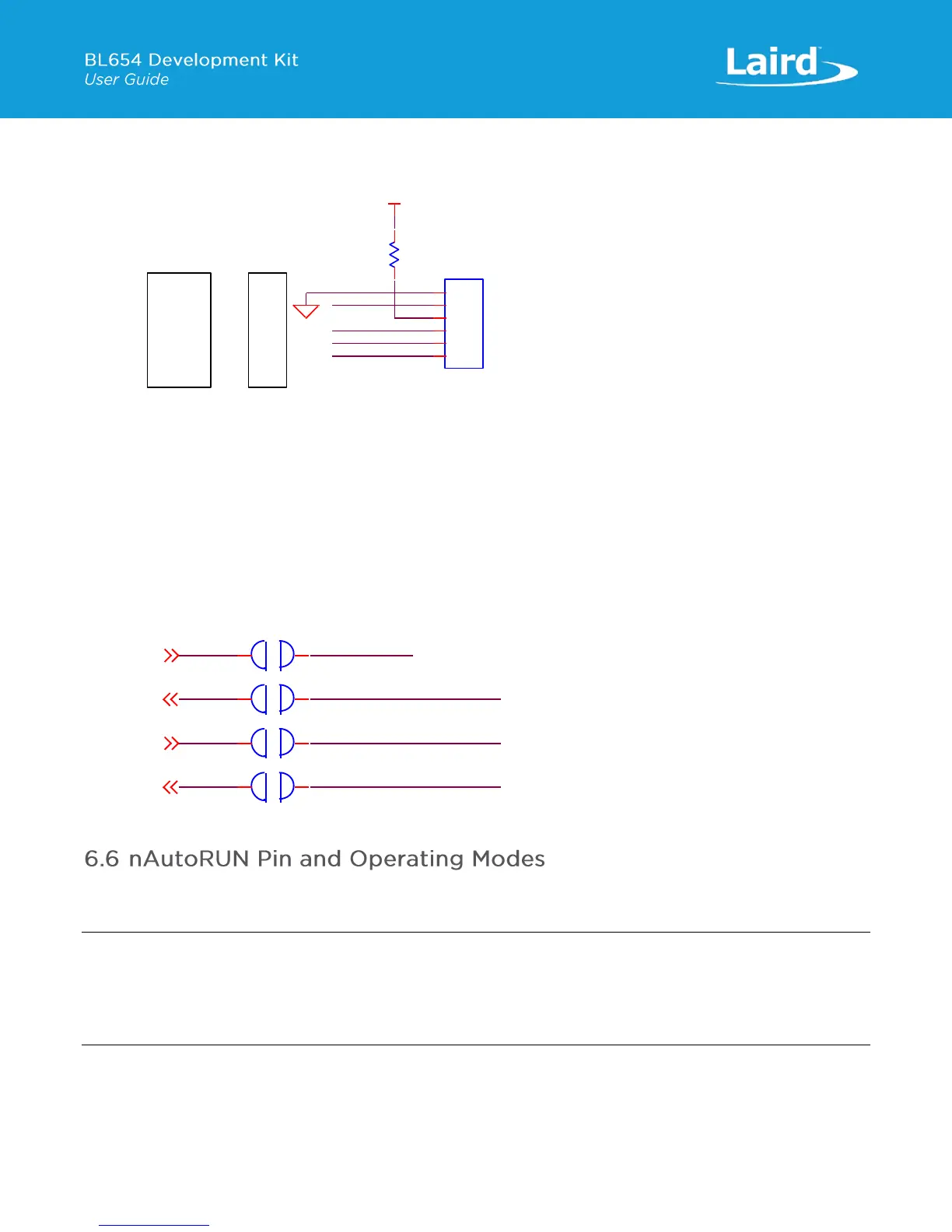

Figure 11: J1 wiring to match FTDI USB-UART cable (TTL-232R-3V3 cable)
Fit a jumper in J35 (to switch the Analog switch U15 and route BL654 UART to J1) when connecting an external FTDI USB-
UART TTL (3.3V) converter cable using J1.
Fitting a jumper in J35 also allows the BL654 UART to be routed to Atmel MCU UART (signal also on J19 and net names
beginning with IMCU_) via open solder bridges SB16 to SB19 shown in Figure 12. You must connect these bridges with
solder. This may be useful for those customers wanting to work with the Nordic SDK.
Figure 12: Open solder-bridges on the UART interface running from Atmel MCU (U4) to analog switch U15 (to BL654 ultimately)
On the development board, the USB_DTR output (FTDI chip U10) from the PC is wired to BL654 module pin SIO_35 (pin 5)
which is the nAutoRUN pin.
Note: smartBASIC runtime engine FW checks for the status of nAutoRUN during power-up or reset. The nAutoRUN pin
detects if the BL654 module should power up into Interactive/Development Mode (3.3 V) or Self-contained Run
mode (0V). The module enters Self-contained Run mode if the nAutoRUN pin is at 0V and an application called
$autorun$ exists in the module’s file system, then the smartBASIC runtime engine FW executes the smartBASIC
application script automatically; hence the name Self-contained Run mode.
