exceed reasonable power use, so we suggest that you mount the decoder with good access to external
ventilation, testing initially with the body off for a while to ensure that the decoder does not become overly
hot.
The decoder power ratings
860014/21/18/19 1 Amp rating, 2 amps peak, 4 x light or other device /
switchable functions, each 100mA
860012/13 0.5 Amp rating, 1 amp peak, 2x light or other device /
switchable functions, each 100mA
Addressing LaisDcc decoders are always supplied to you with address 3 preset into the decoder. All
models will accept any address between 1 and 9999.
If at any time you are unsure of the address that has been set in your LaisDcc decoder,
then
don’t worry - Just enter programming track mode with your controller and either “read”
the
address or reset the decoder to its default address of three by entering 2 into CV8.
Harnesses 860021:An 8 pin NEM652 plug with wires dressed to the UK standard (N-S or lengthwise)
orientation.The 4 Fn decoder will also have Fn4/Aux2 as a free purple wire.
860019: With 21MTC interface.
860014: 9 wires follow the color standard of NMRA and with two extra blue wire and black wire
for stay alive kit
860018: With NME652 plug build in board and free purple wires for Fn4/Aux2, and stay alive
wires also.
860012: With NEM651 6wire plug, and extra stay alive wires also.
860013: With NEM651 6Pin plug, and extra stay alive wires also.

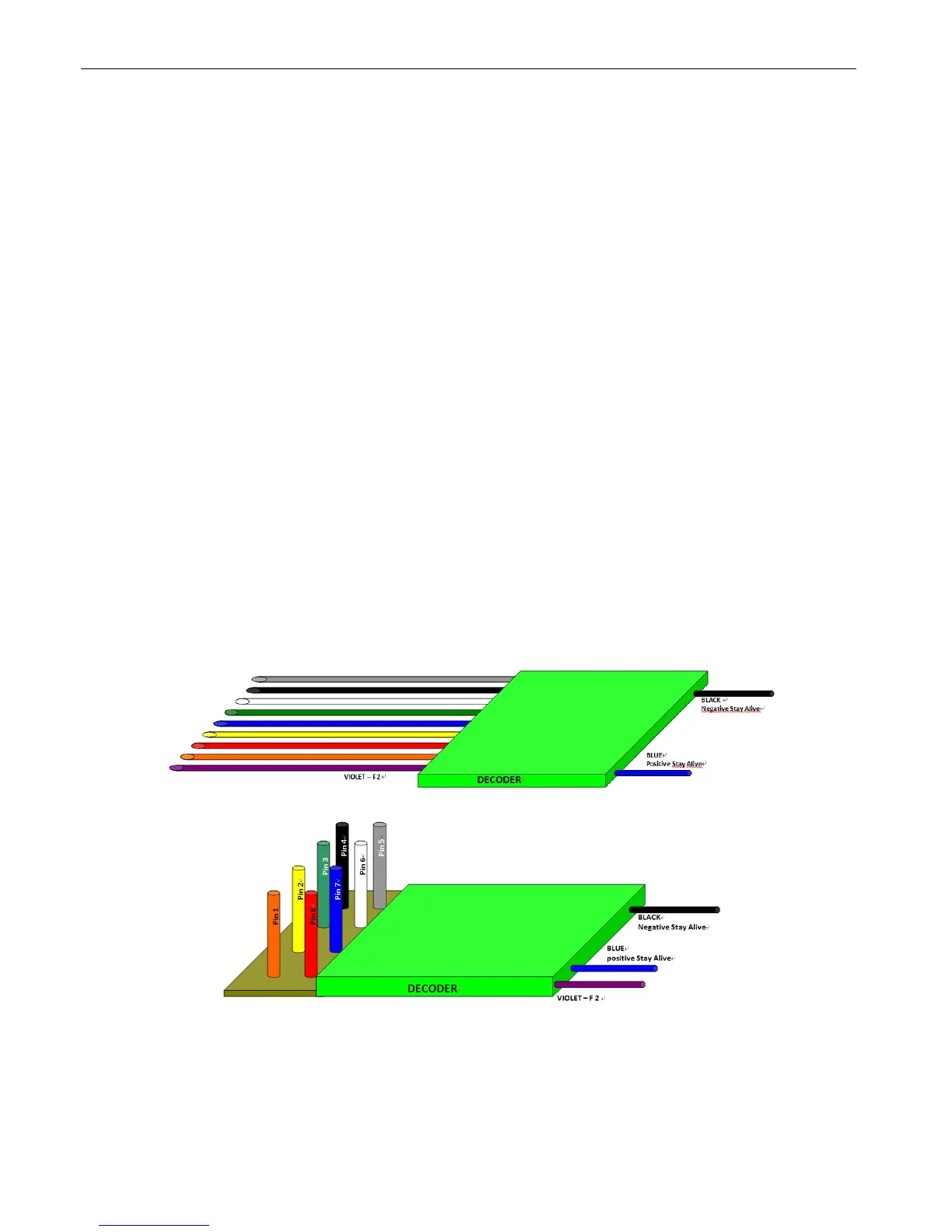

Stay alive wires
The extra blue wire and back wire are for stay alive kits. The Black wire is cathode(-), the
blue wire is positive(+), you will very easy to connect with our LaisDcc stay alive kit.
