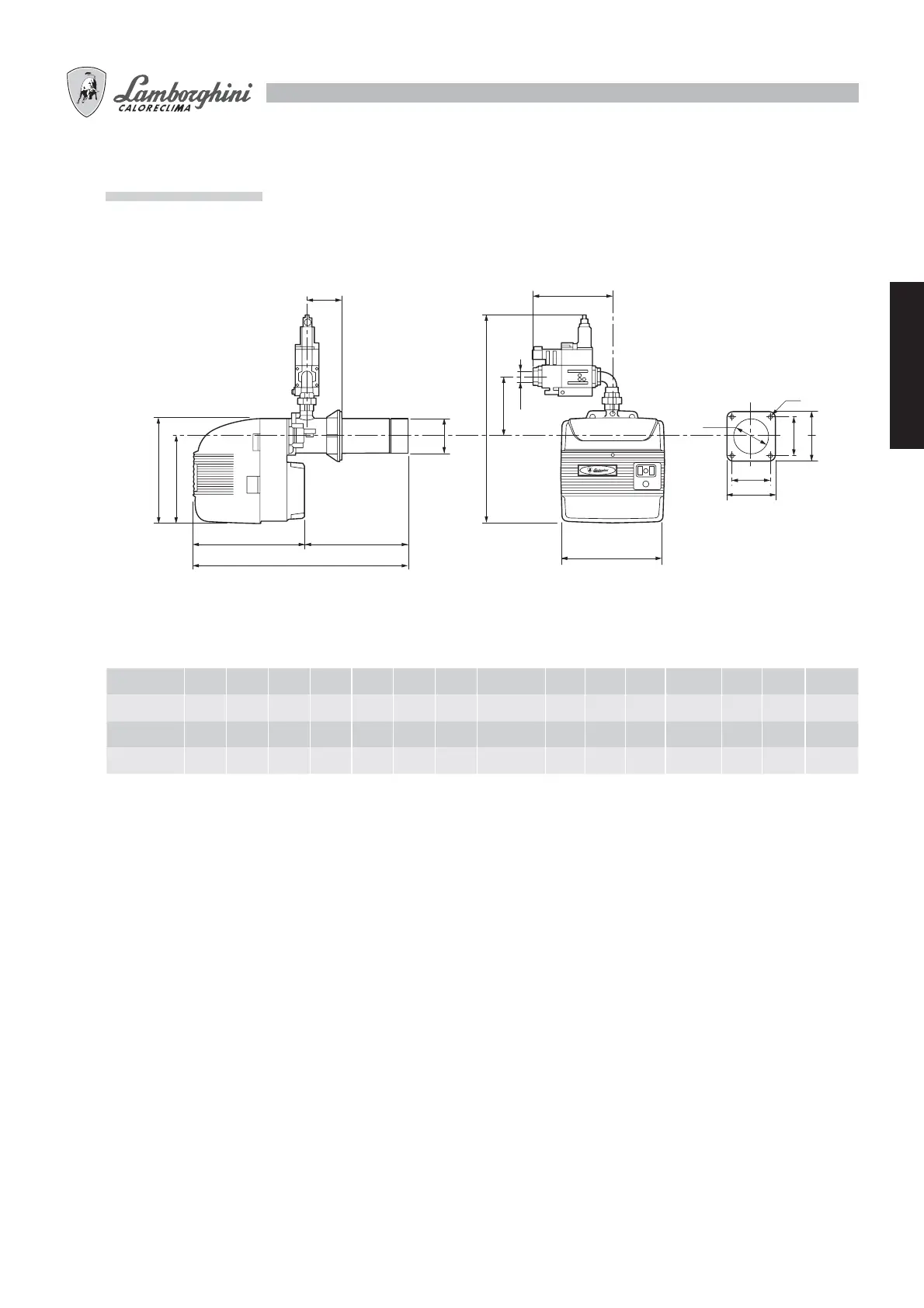

DIMENSIONS mm
* The dimensions refer to a burner with a 20 mbar “EC-approved” gas train fitted.
M
Ø L
H
H
N
N
B
X
I
U
Ø G
S
C
F
DE
Q
A
Model A B C D E F ØG H L N Q S T U X
EM 35-E 880 420 423 460 420 350 140 120÷160 150 200 740* Min.80 230* 260* 1”1/4*
EM 40/2-E 880 420 423 460 420 350 140 120÷160 150 200 835* Min.80 230* 260* 1”1/4
EM 40/M-E 880 420 423 460 420 350 140 120÷160 150 200 740* Min.80 230* 290* 1”1/4
