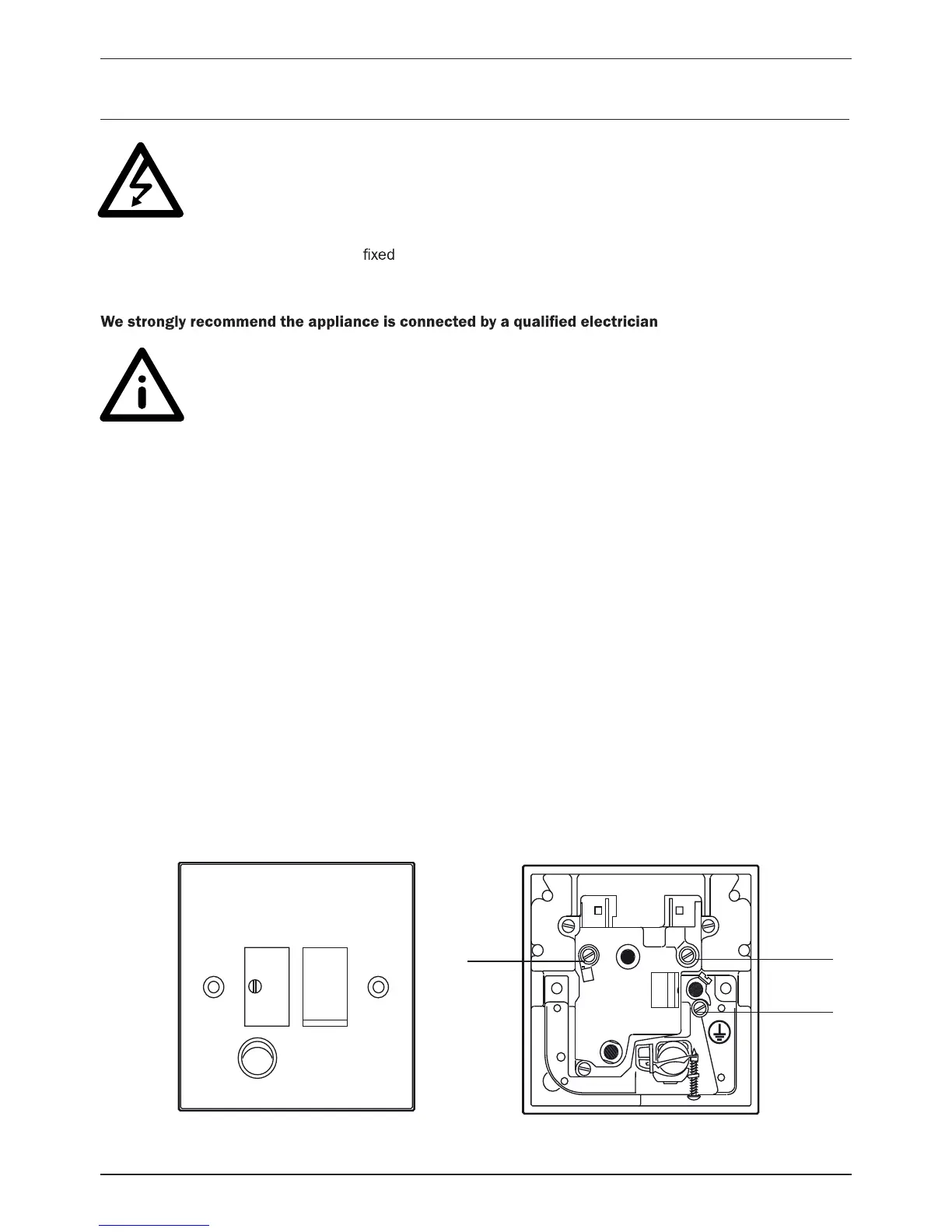

Electrical Connections
IMPORTANT: Ensure that the electricity
supply is switched off before connecting.
Your appliance must be connected to teltuo rups desuf dehctiws elop elbuod a fo esu eht aiv gniriw
with at least 3mm contact separation, The isolation switch must be accessible after installation. (See
technical data for fuse rating).
The terminology DOUBLE POLE -/+ means
that both the live and neutral supplies are
switched and disconnected at the same time.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue..........Neutral
Brown......Live
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which is
marked with the letter ‘L’ or coloured RED.
Fig 3. Fig 4.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
250V~
FUSE
ON
Blue.
(Neutral)
Brown.
(Live)
Green / Yellow.
(Earth)
The terminations labelled SUPPLY are the
connections for the internal house wiring and the
terminations labelled LOAD are for connection to
the appliance.
