7 Operating Control and Displays
7.2 Operation, Controls and Display with GUI607/610/615
The GUI (graphical user interface) is a touch-sensitive panel. The panel visualises the system
with the parameter and curve data from the devices on the LSB (LAMTEC SYSTEM BUS).
The GUI is used to access, edit and store values.

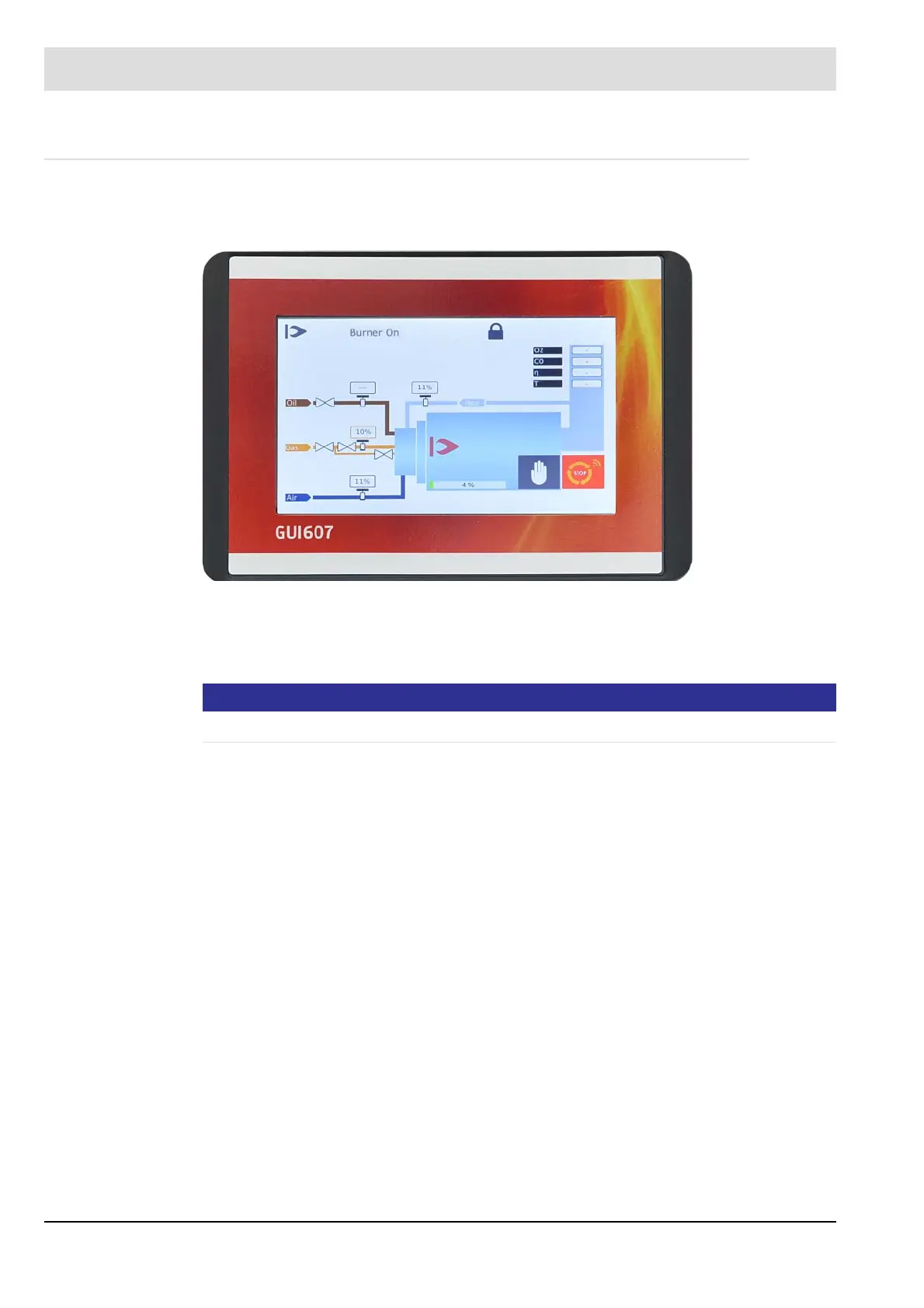

Fig. 7-3 GUI607 graphical user interface
By touching the panel, the menus and submenus can be navigated, and the system can be
configured and operated.
The GUI is available in 7", 10" and 15" options.
NOTICE
The GUI display may vary depending on the device, configuration and software version.
