176
7
Operating Control and Displays
Comparing datasets
1.
In the menu, click ’Compare dataset’.
2.
Proceed as shown below
.

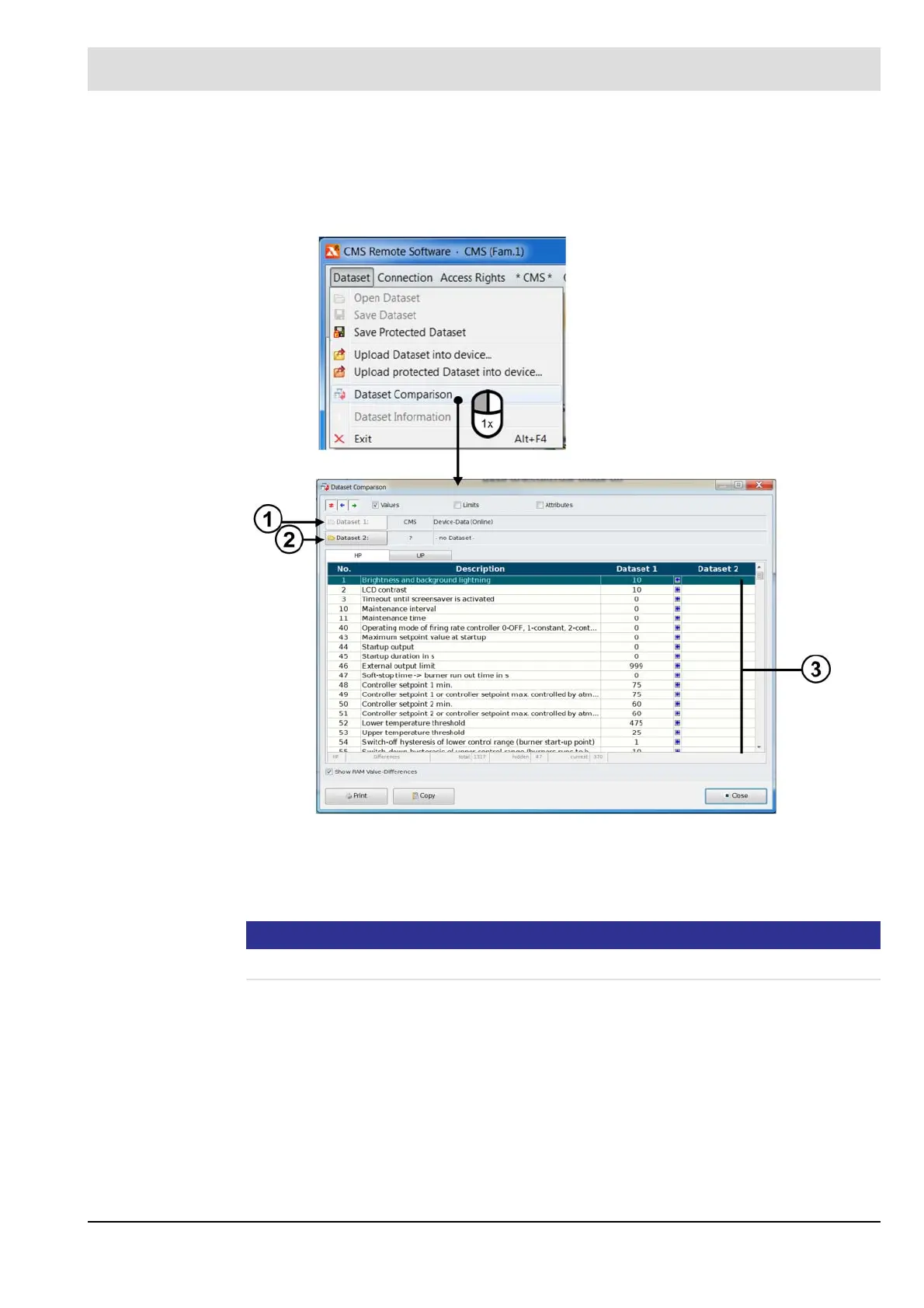

Fig. 7-50 Comparing CMS datasets
NOTICE
The dataset comparison feature is used for checking or troubleshooting.
1
Current dataset
2
Open the dataset to be com-
pared
3
The differences are shown
here
