67
4 CMS Components
NOTICE
3-wire pulse generators must be operated with the provided voltage of 12 V in order to avoid
destruction of the inputs. The functionality of the encoders is not limited by a specification of
10 - 30 V.
+24 VDC from MCC (e.g. X33 pin 2/4)
Pin 1 Ref+
SAI X11–X16
Pin 2 In+
Pin 3 In-
Pin 4 GND

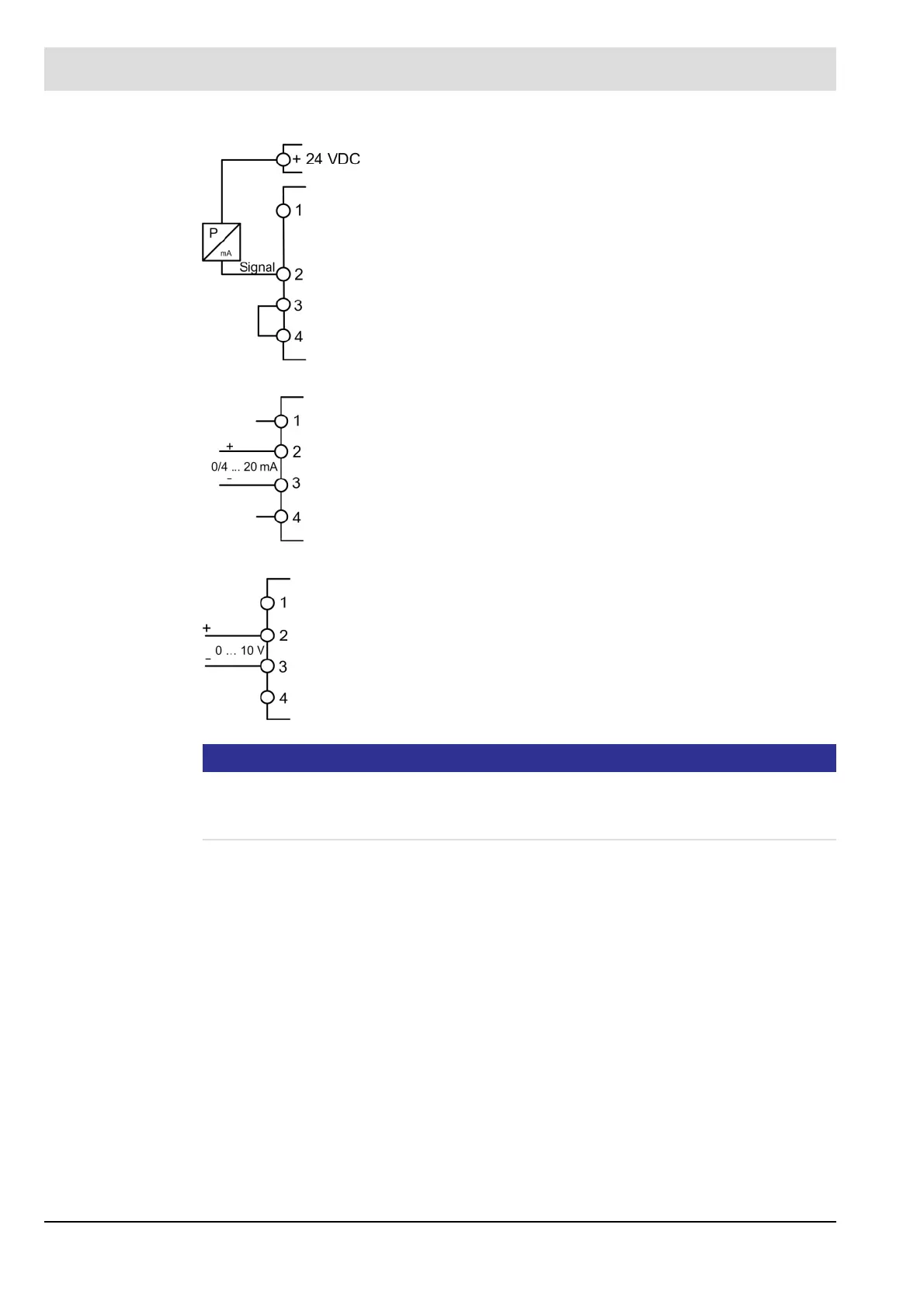

Fig. 4-32 0/4 … 20 mA signal transmitter, 2-wire
(here: pressure transmitter)
Pin 1 Ref+
SAI X11–X16
Pin 2 In+
Pin 3 In-
Pin 4 GND
Fig. 4-33 0/4 … 20 mA signal transmitter, active signal
Pin 1 Ref+
SAI X11 - X16
Pin 2 In+
Pin 3 In-
Pin 4 GND
Fig. 4-34 0 ... 10 V signal transmitter, active signal
