Landa HS-3000 - Exterior View

8.913-943.0 • LANDA HS • Rev. 4/13
OPERATOR’S MANUAL
PRESSURE WASHER
22
89139430-6

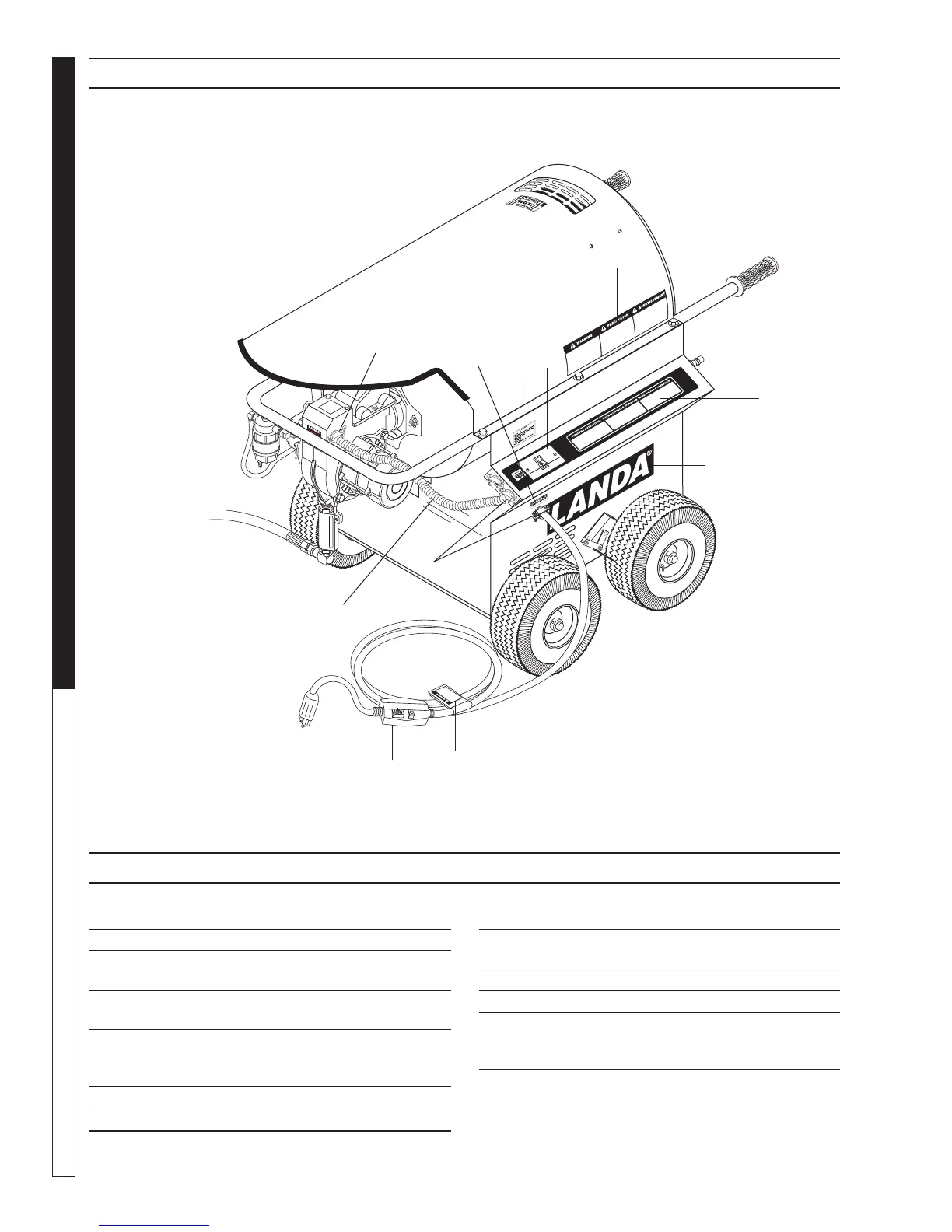

EXTERIOR VIEW
EXTERIOR VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 9.800-016.0 Label, Disconnect Power Supply 1
2 9.800-049.0 Label, Manufacturer’s
Cleaning Solution 1
3 8.900-336.0 Label, HS-3000
Control Panel 1
4 8.912-225.0 Switch Plate, HS-3000 1
8.900-337.0 Label, HS-3000
Switch Plate 1
5 8.916-090.0 Label, Landa Logo 2
6 8.932-969.0 Label, Warning Service Cord 1
ITEM PART NO. DESCRIPTION QTY
7 9.802-432.0 Cord, W/GFCI Plug,
120V 15A 1
8 9.802-519.0 Strain Relief, 1/2" Metal 4
9 9.800-033.0 Label, Warning Hot Water 1
10 8.716-006.0 Conduit, Flex, Alum, 3/8" 2 ft.
8.716-007.0  Conduit, Bushing,
Anti-Short 2
 Not Shown
