Landmann Brooke - Brooke Fire Pit Assembly Steps; Step 1: Base to Firebox Assembly; Step 2: Spark Guard Hook Assembly; Step 3: Positioning the Spark Guard

BROOKE ASSEMBLY INSTRUCTIONS
PAGE 4
1
STEP
ASSEMBLE THE SPARK
GUARD HOOK

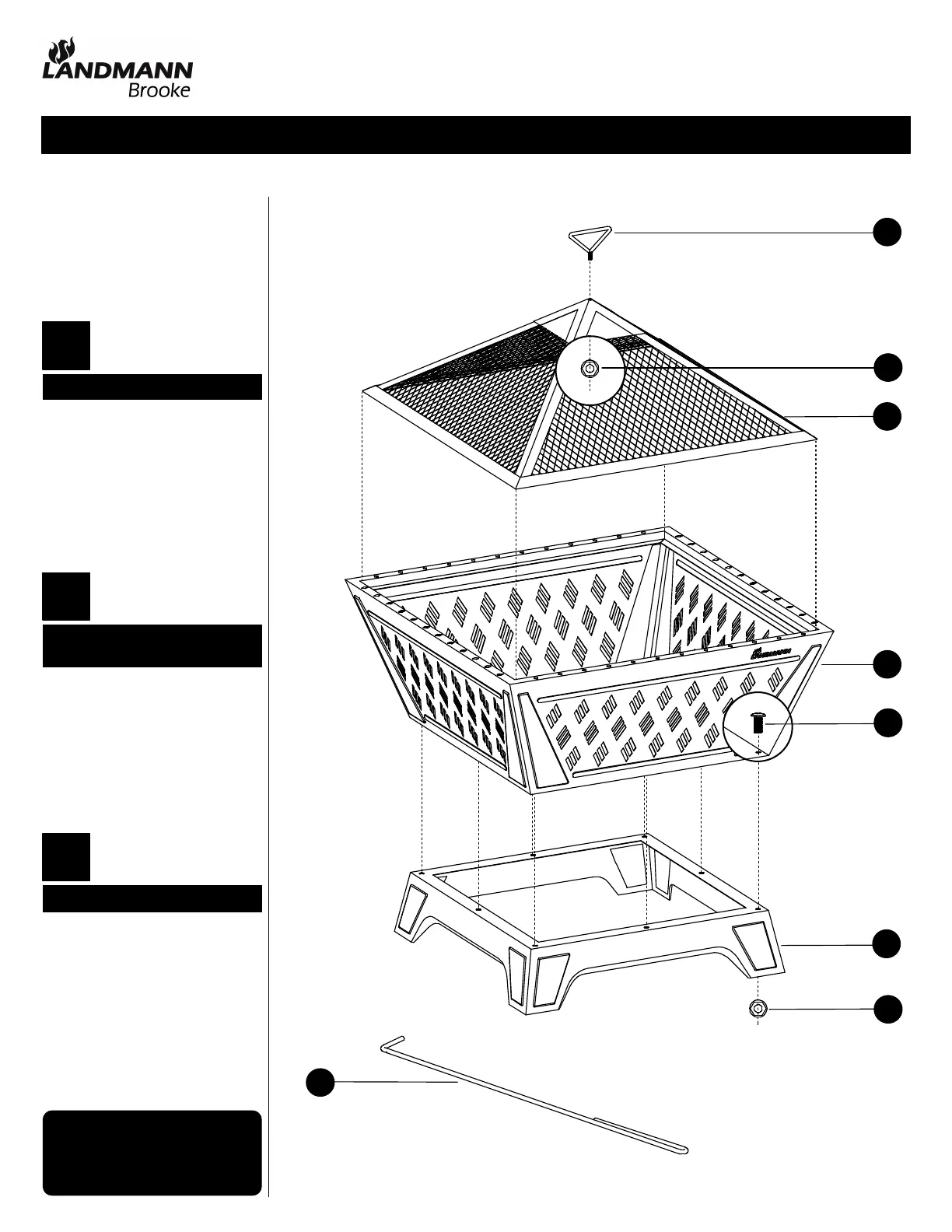

Assemble the spark guard hoop
[ D ] to the top of the spark
guard [ C ] using (1) hexnut
[ BB ]. Tighten securely.
2
STEP
DO NOT RETURN PRODUCT TO THE
STORE. IF YOU HAVE QUESTIONS
OR HAVE TROUBLE WITH
ASSEMBLY, PLEASE CALL
1-800-321-3473 FOR ASSISTANCE.
PLACE THE SPARK GUARD
Place the assembled spark guard
[ C ] onto firebox ledges.
3
STEP
ASSEMBLE THE BASE
Assemble the base [ B ] to the
firebox [ A ] using (8) bolts
[ AA ] and (8) hexnuts [ BB ].
Tighten bolts securely.
®
A
B
C
D
BB
AA
BB
F
