Landmann Heatwave 28051 - Assembling the bottom shelf; Assembling the wheel legs; Assembling the wheels; Assembling the firebowl handle shield

L1
F1
E1
F2
CC
5
Assembling the wheels
Assemble the two wheels (H1) to the bottom shelf axle
(Y) using two locknuts (EE). Tighten hexnuts securely.
6
Assembling the firebowl
handle shield
Assemble the firebowl handle shield (U) to
the handle (T1) using two bolts (AA)
and two hexnuts (BB).
DD
AA
BB
KEEP ROUND
EDGE TOWARDS
THE CENTER OF
FIREBOWL
Y
Y
EE
Y
H1
T1
AA
BB
U
6

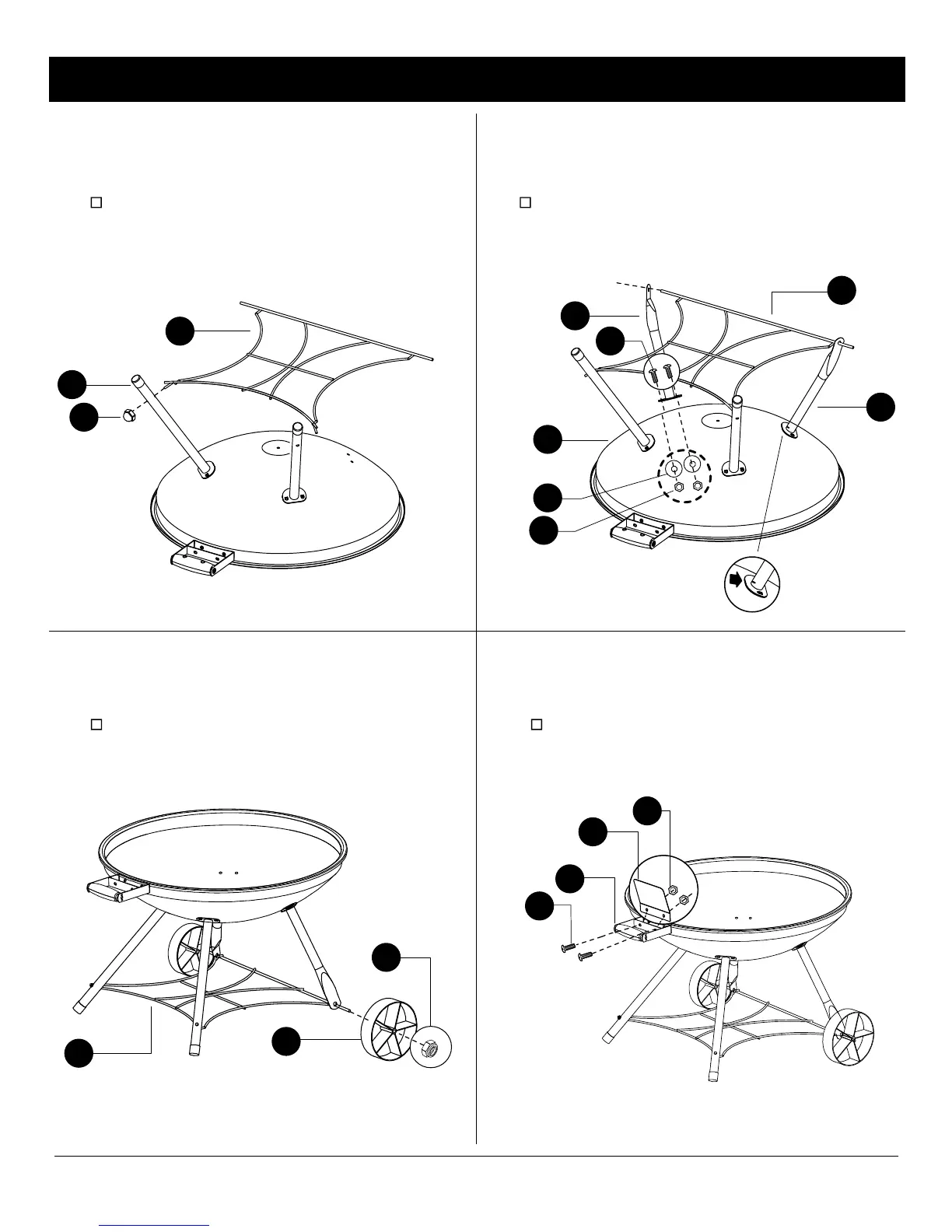

Assembly (continued)
3
Assembling the bottom shelf
Assemble the bottom shelf (Y) into the front legs (L1)
using two capnuts (CC). Finger tighten the capnuts
only at this time.
4
Assembling the wheel legs
Insert the right and left wheel legs into the bottom shelf axle.
Assemble each leg to the firebowl using two bolts (AA), two
washers (DD) and two hexnuts (BB). Tighten the bolts and
capnuts from Steps 2 and 3.
