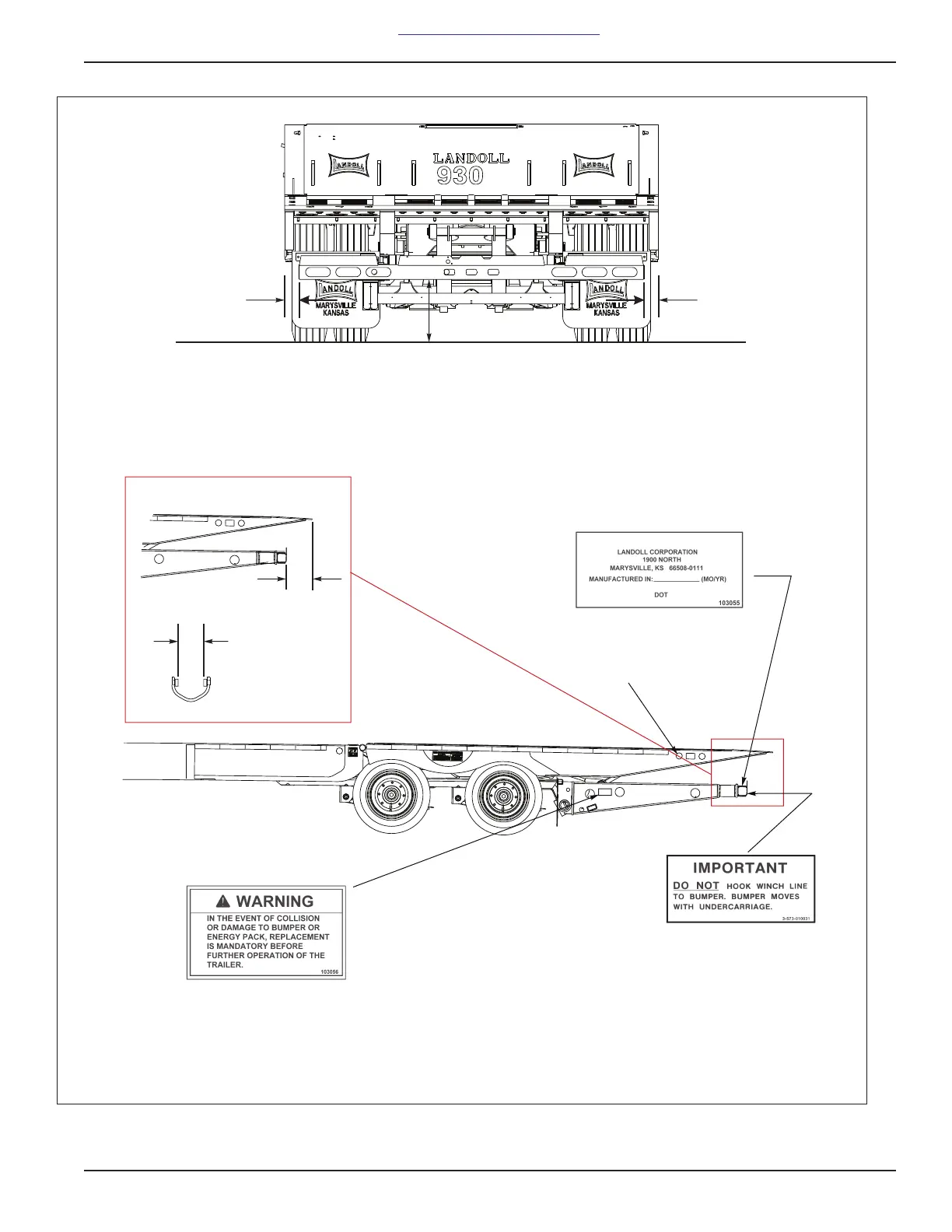

Figure 3-15: Rear Impact Guard and Anti-Lock Brake System
4”
(max.)
4”
(max.)
22” (max.)
REAR VIEW OF TRAILER
12”
(max.)
CERTIFICATION DECAL TO BE
LOCATED ON FORWARD FACING
SURFACE, 12 INCHES FROM
CURB END OF GUARD.
ABS LIGHT
ENERGY PAK
WARNING DECAL TO BE
LOCATED ON STREETSIDE
BUMPER ARM
5” (min.)
BETWEEN
BOLT HEADS
E
DECAL LOCATED ON
REARWARD CURBSIDE
OF REAR IMPACT
GUARD
