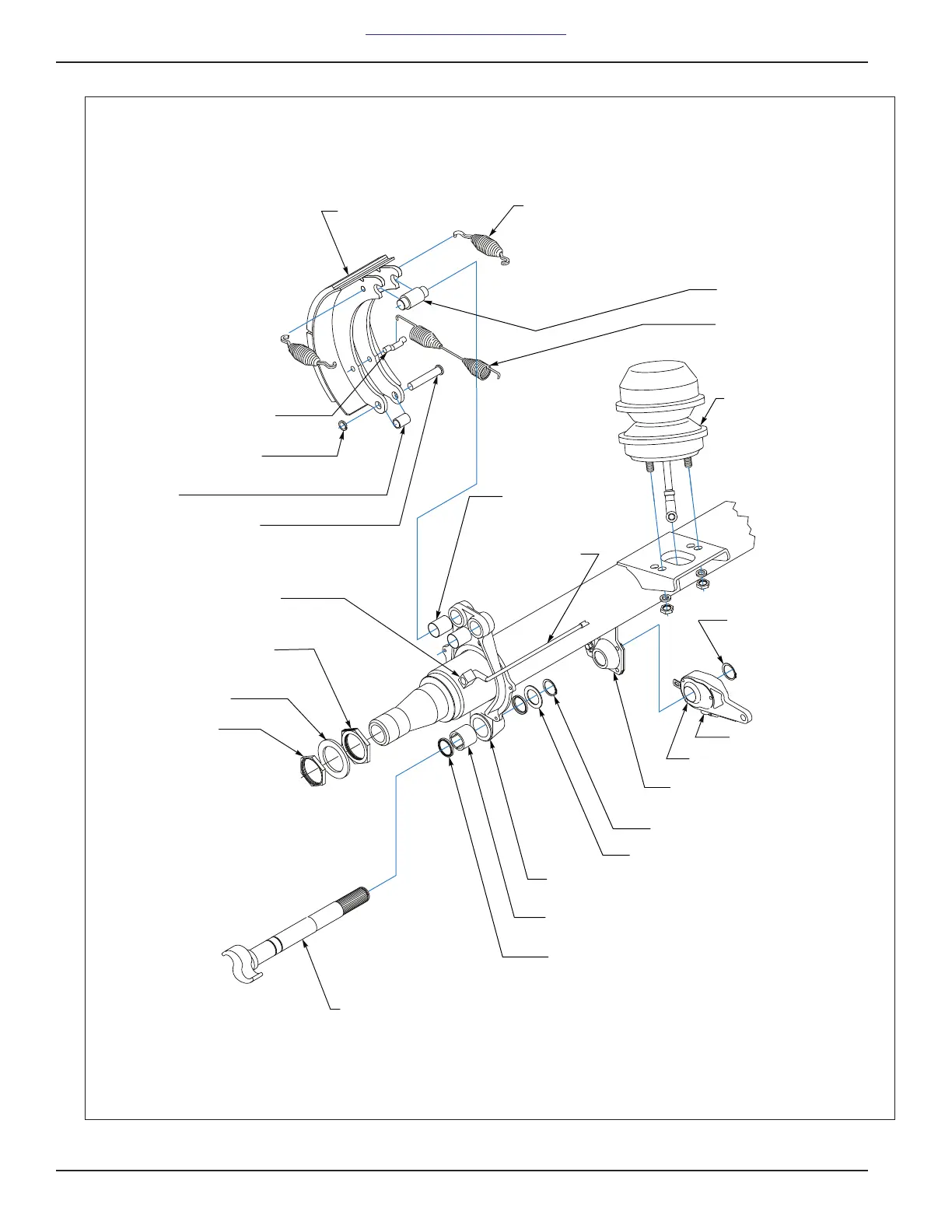

Figure 4-14: Axle and Brake Assembly
OUTER LOCK
NUT
LOCK WASHER
INNER ADJUSTMENT
NUT
ABS SENSOR BLOCK
(WELDED TO AXLE)
SHOE ROLLER PIN
ROLLER
RETAINER
ROLLER
PIN
RETRACTOR SPRING
RETAINER
BRAKE SHOES
SHOE KEEPER SPRING
ANCHOR PIN
SHOE RETRACTOR
SPRING
BRAKE CHAMBER
ANCHOR PIN
BUSHINGS
ABS SENSOR
CAMSHAFT SEALS
CAMSHAFT BUSHING
SPIDER
SPACER WASHER
CAMSHAFT LOCK RING
CAMSHAFT SUPPORT
BRACKET
ADJUSTER HEX
SLACK ADJUSTER
LOCK RING
SLACK ADJUSTER
CAMSHAFT
