Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel.
Cables: Never use shielded or microphone cable for any speaker connections as this will not be substantial enough to handle the
amplifier load and could cause damage to your amplifier system.

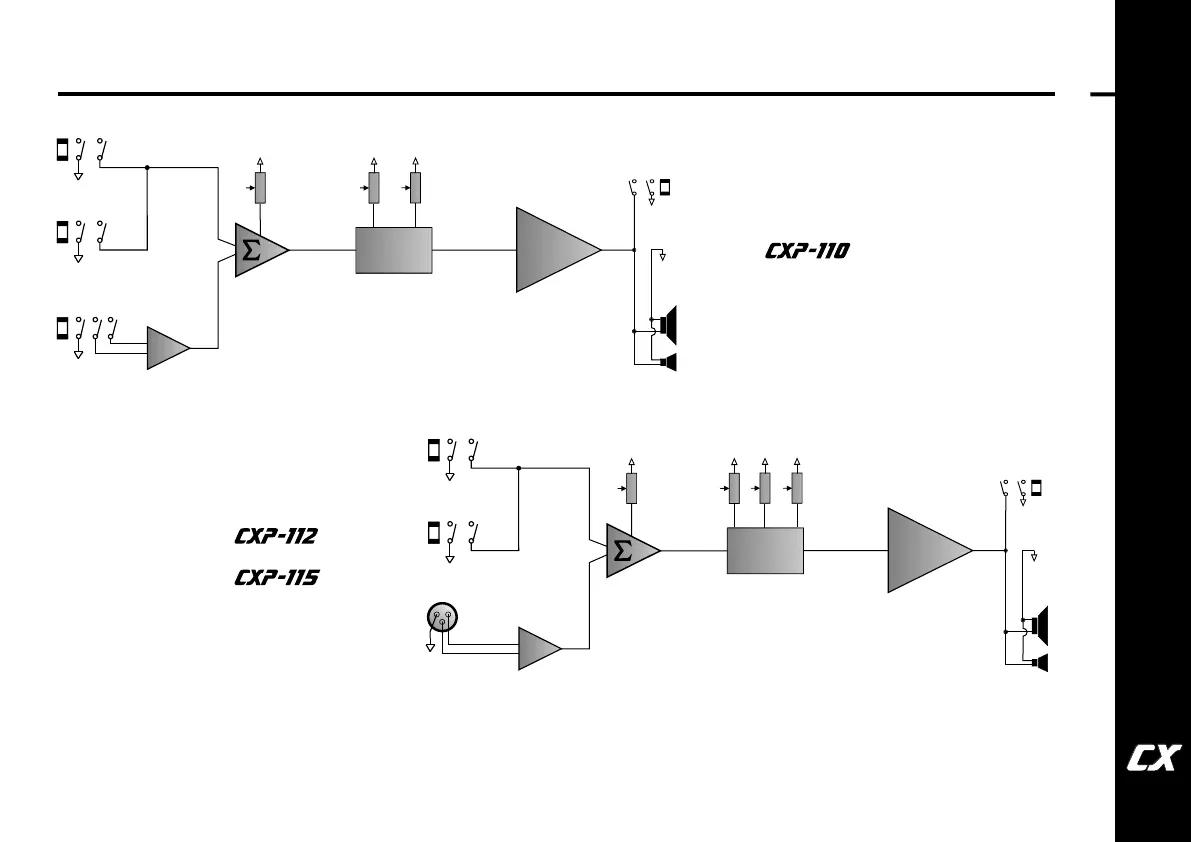

TECHNICAL SPECIFICATIONS & BLOCK DIAGRAM
This product conforms to the requirements of the following European Regulations, Directives & Rules:-
CE Mark (93/68/EEC), Low Voltage (72/23/EEC), EMC (93/68/EEC),
RoHS (EU2002/95/EC), WEEE (EU2002/96/EC)
In order to reduce environmental damage, at the end of its useful life, this product must not be disposed of along with normal
household waste to landfill sites. It must be taken to an approved recycling centre according to the recommendations of the
WEEE (Waste Electrical and Electronic Equipment) directive applicable in your country.
LINE IN
INTERNAL
LOUDSPEAKERS
LINK OUT
MIC
VOLUME
EQEQ
BASS
TREBLE
POWER
AMP
EXTERNAL
LOUDSPEAKERS
MID
1 2
3
LINE IN
INTERNAL
LOUDSPEAKERS
LINK OUT
MIC
VOLUME
EQEQ
BASS
TREBLE
POWER
AMP
EXTERNAL
LOUDSPEAKERS
Mains Fuse: ~100>~120V T2A L T2A L T5A L
~220V>~240V T1A L T1A L T2A L
Mic, Line (both 6.3mm Jacks) Mic XLR, 6.3mm Line jack Mic XLR, 6.3mm Line jack
2 band Active Shelving 3 band Active Shelving 3 band Active Shelving
Line In input impedance 10Kohms 10Kohms 10Kohms
Directly coupled to Line In Directly coupled to Line In Directly coupled to Line In
2Kohms Balanced 2Kohms Balanced 2Kohms Balanced
-10dBu -10dBu -10dBu
-20dBu -20dBu -20dBu
8 ohms minimum 8 ohms minimum 8 ohms minimum
8 ohms 8 ohms 8 ohms
10" + Piezo Tweeter 12" + HF Horn 15" + HF Horn
65W RMS, 120W PMPO into 4ohms 120W RMS, 240W PMPO into 4ohms 150W RMS, 300W PMPO into 4ohms
78hz to 20khz 65hz to 18khz 60hz to 18khz
97 dB/W@1M S98 dB/W@1M 97 dB/W@1M
14 Kg 19 Kg 24.5 Kg
274*468*347 330*591*437 343*667*462
Frequency Response
Sensitivity
Weight
Size (H*W*D)
Extension Loudspeaker
Speaker Nom Impedance
Speaker Size
Output Power
Link Out
Mic input impedance
Nominal Line input level
Nominal Mic input level
Inputs
EQ
Supply voltage on all models: - Factory Preset ~100V, ~120V, ~220V, ~230V, ~240V 50/60Hz
