L5-STUDIO USER MANUAL - EN

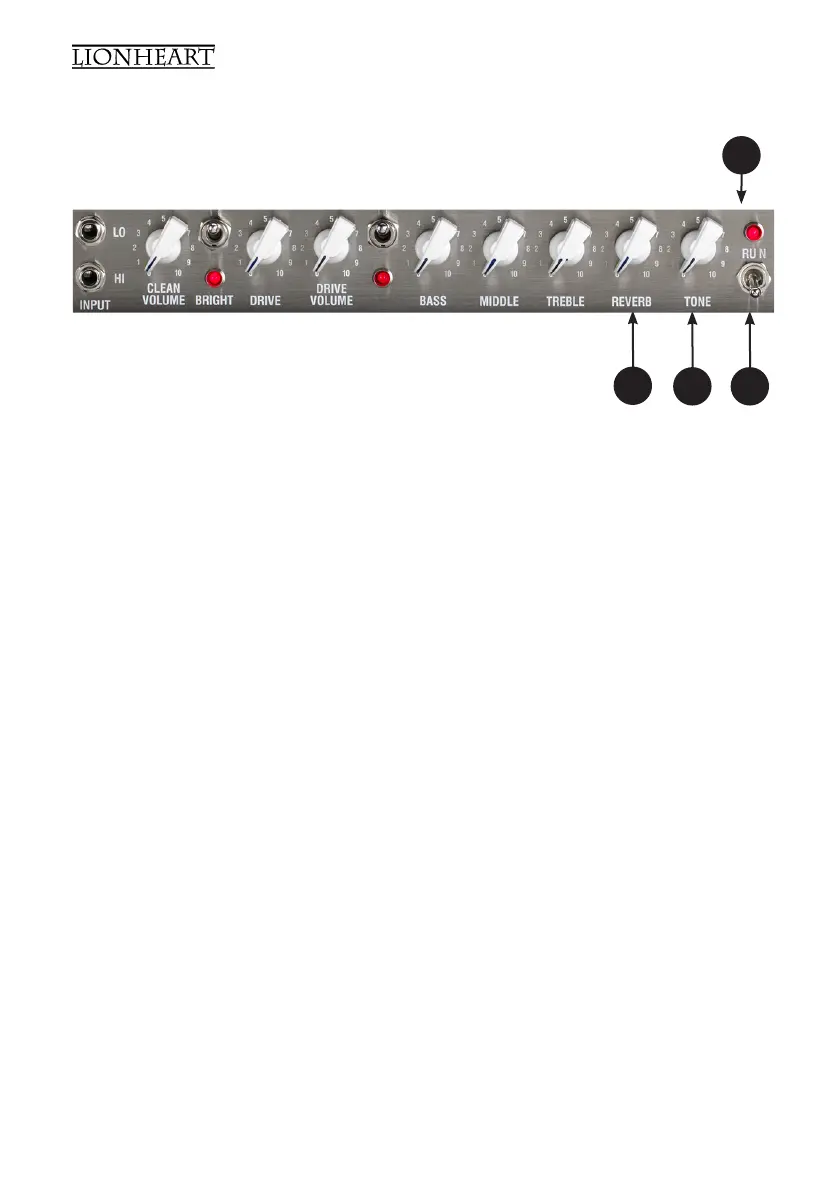

L5-STUDIO FEATURES
REVERB: Controls how loud the built in reverb sounds.
TONE: The tone control works in a similar fashion to the Tone control you probably have
on your guitar except that it uniquely works at the other end of the amplication chain. This
has the ability to not only control the overall top end response but also reduce upper end
harmonics on the output stage and preamplier overdrive sounds. This will give you bright
cutting sounds at high settings and smooth rounded sounds at lower settings. (Midway (5)
is a good starting point)
STANDBY SWITCH: Disconnects the main HT voltage from the tubes but keeps the tubes
warm so that they are ready to go instantly. Switch to standby for short breaks when you
don’t want to wait for the tubes to warm up again.
POWER LED: This led will be lit when the amplier is switched on. (Always switch off and
disconnect the power cord when not in use)
13
10
11 12
10 -
11 -
12 -
13 -
