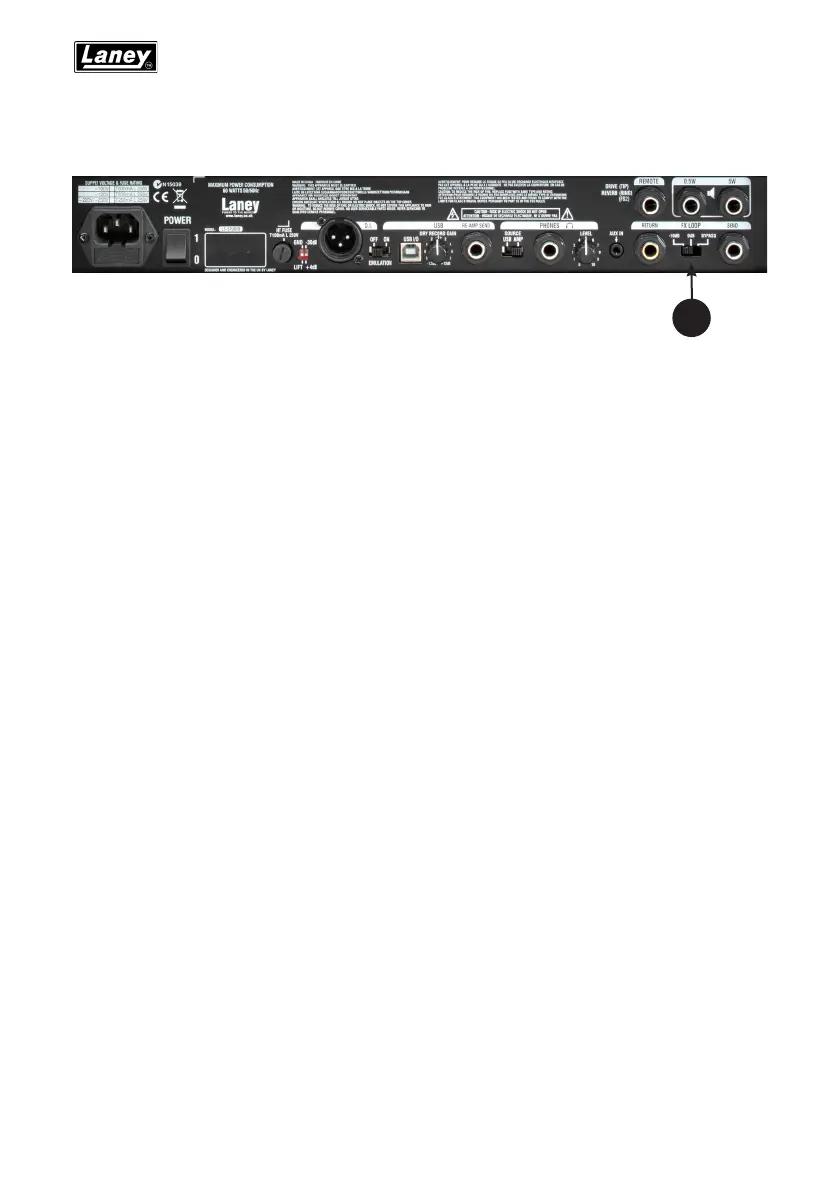

FX LOOP:
RETURN: A mono jack socket to connect to the output of an external FX unit. This can also
be used as a slave in for the power amp. As the FX Loop is an insert type, a connector in
the Return socket will mute the pre-amp signal.
ATTENUATION SWITCH: Selects the FX Loop mode of operation:
-10dBu - For connection of FX units with a -10dBu nominal output level. As this
is intended for devices with a lower output level, this switch increases the gain of
the FX Loop by 10dB.
0dBu - For connection of FX units with a 0dBu nominal output level.
Bypass - Removes the FX Loop from the signal path.
FX SEND: Mono jack socket for connection to the input of an external FX unit.
