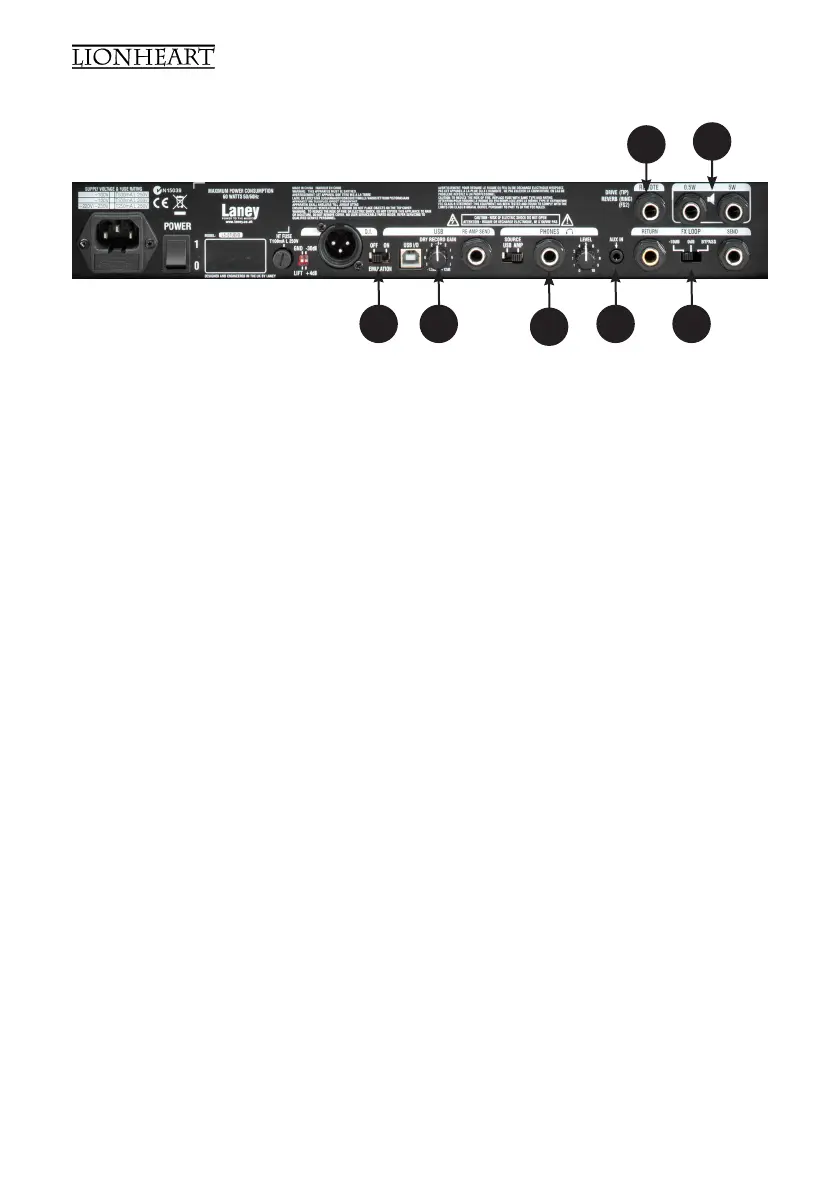

L5-STUDIO FEATURES
24
25
EMULATION: This provides continuous 4x12 cabinet emulation to the Phones and
switchable emulation for USB and the D.I. output.
USB: A standard USB 2.0 audio in/out connector is provided for recording purposes. For
further explanation of USB and associated controls, see page 9.
PHONES: A stereo jack is provided which can be used for headphones or a stereo feed to
a PA system. A Source switch allows you to listen to whatever is on the speaker outputs
or the stereo return from the USB. A level control is included for comfortable listening. In
‘amp’ mode, the level arriving at the phones is dependant on the pre-amplier controls as
well as the phones level; make sure you set the pre-amplier before setting the phones
level.
AUXILIARY INPUT: This input allows the connection of backing tracks (or any line level
audio signal) to be mixed in post FX loop.
FOOTSWITCH SOCKET: Provided for connection of the included Laney FS2-MINI
footswitch. This allows you to remotely switch between the clean/drive channel and switch
the built in reverb On/Off.
SPEAKER CONNECTORS: An 8-16 ohm cabinet can be connected directly to these
sockets. Please note mismatched impedance will reduce the ampliers performance and in
some cases may cause damage to your amplier. The 0.5W attenuated socket provides the
same sound and feel as the 5W output, but with the maximum output set to around 0.5W.
Unlike many valve ampliers, the L5-Studio is designed to run either with or without speak-
ers connected.
