Page 10 /12
OPERATING INSTRUCTIONS
General Notes
Amplifier connection: In order to avoid damage, it is advisable to establish and follow a pattern for turning on and off your
equipment. With all system parts connected, turn on source equipment, tape decks, cd players, mixers, effects processors etc.
BEFORE turning on your guitar amplifier. Many products have large transient surges at turn on and off which can cause damage to
your speakers. By turning on your guitar amplifier LAST and making sure its Volume controls are set to minimum any transients
from other equipment will not reach your loudspeakers. Wait until all system parts have stabilised; usually a couple of seconds.
Similarly when turning off your system always turn down the Volume controls on your guitar amplifier and then turn off its power
before turning off other equipment.
Cables: never use shielded or microphone cable for any speaker connections as this will not be substantial enough to handle the
amplifier load and could cause damage to your amplifier system.
Caution: These professional loudspeaker systems are capable of generating very high sound pressure levels. Use care with
placement and operation to avoid exposure to excessive levels that can cause permanent hearing damage. (Refer to guidelines on
page 2)
Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel.

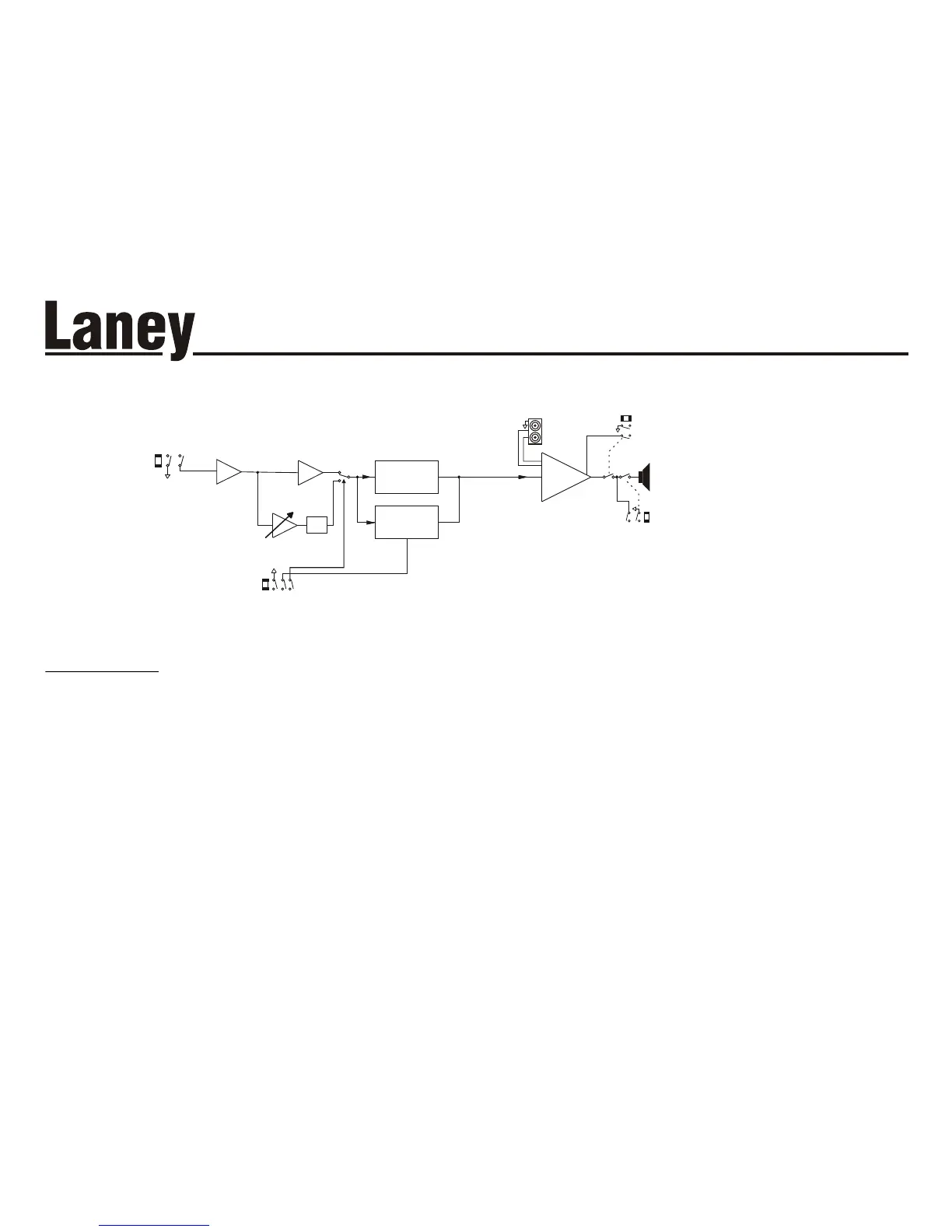

BLOCK DIAGRAM
INTERNAL
LOUDSPEAKER
INPUT
EQ SECTION
POWER
AMP
CD IN
HEADPHONES
DRIVE
CLEAN
XTS
REVERB /
EFFECTS
FOOTSWITCH
SPECIFICATIONS
Supply Voltage ~100V, ~120V, ~220V, ~230V, ~240V 50/60Hz Factory Option
Mains Fuse ~220V>~240V = T250mA L. ~100V>~120V = T500mA L
Power Consumption 50W
Output Power Rating 35W
Loudspeaker 10” Custom Designed Driver
Features Rugged construction
TEC Tube Emulating Technology
Headphone socket
CD In (10K Input impedance) (Nominal 300mV Input level)
XTS eXtreme Tone Shaping (Drive channel only)
External Loudspeaker socket (4 Ohms minimum)
Springline Reverb LX35R only
EQ Passive Bass, Middle and Treble
Input Impedance 1MOhm/47pF
Size 389*409*229 (H*W*D)
Unit Weight 10.0 Kg
Packing Weight 11.5 Kg
This product conforms to:
European EMC directive(2004/108/EC), Low Voltage Directive (72/23/EEC) and CE mark Directive (93/68/EEC)
Page 11 /12
OPERATING INSTRUCTIONS
EXTERNAL
LOUDSPEAKER
To Next Page
