Laney TT100C - Page 19

V1 ECC83 (High Grade) 1st Gain Stage Channel 1
V2 ECC83 (High Grade) 1st Gain Stage Channel 2
V3 ECC83 (Standard) 2nd Gain Stage Channel 2
V4 ECC83 (Standard) 1st Gain Stage Channel 3
V5 ECC83 (Standard) 2nd Gain Stage Channel 3
V6 ECC83 (Standard) Power Driver Stage
V7-10 EL34B-STR Output Tubes
(MATCHED SET)
EL34B
Grade Number
EL34B
Grade Number
Laney
OPERATING INSTRUCTIONS
Page 19/24
V4V4
V3V3
V5V5
V6V6
V7V7
V8V8
V1V1V2V2
TUBE AMPLIFIER SURVIVAL TIPS - continued
TT5 C
/T
T
1
0
C
0 0
TT50C

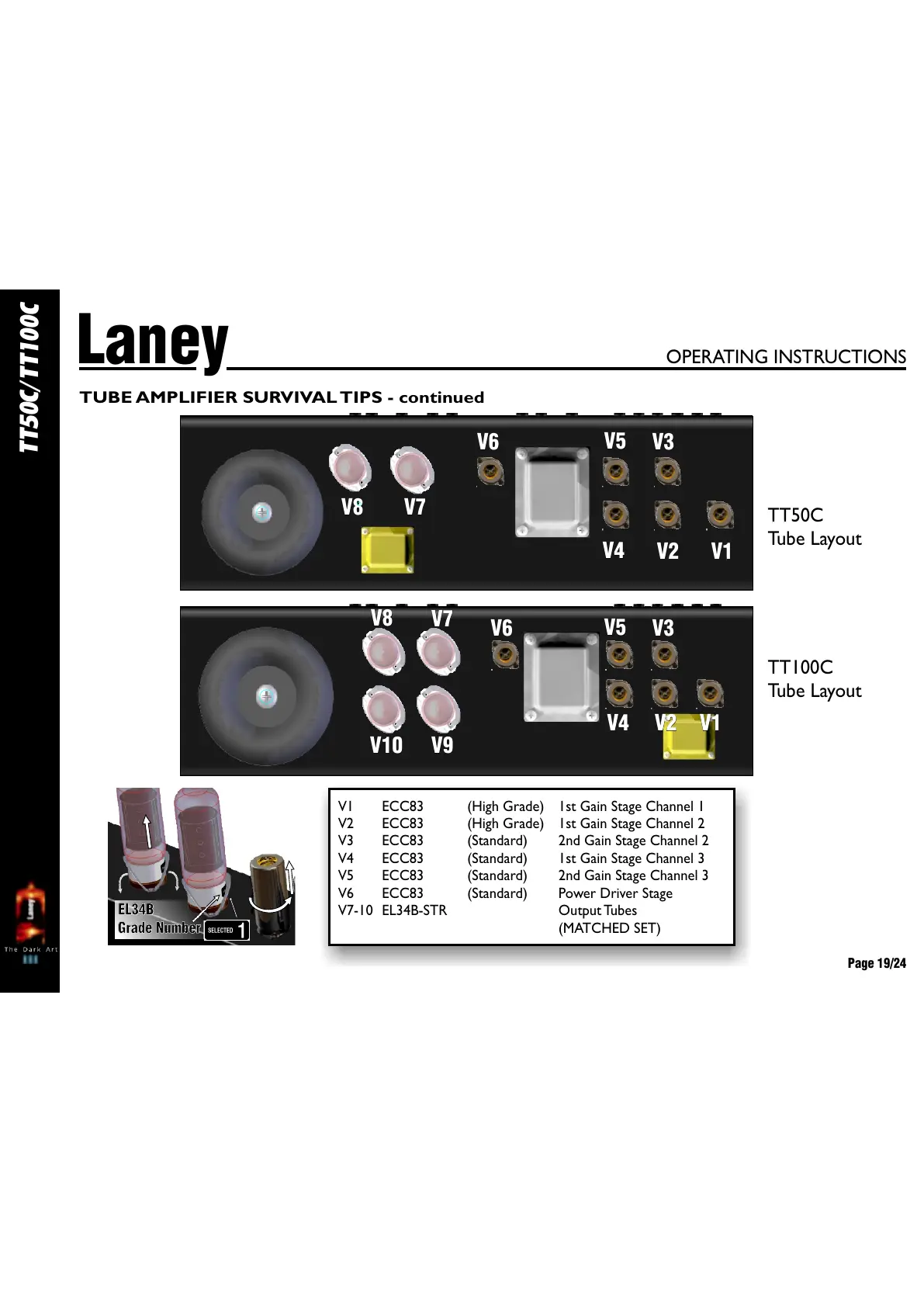

Tube Layout
TT100C
Tube Layout
V4V4
V3V3
V5V5
V6V6
V9V9
V10V10
V1V1V2V2
V7V7
V8V8
