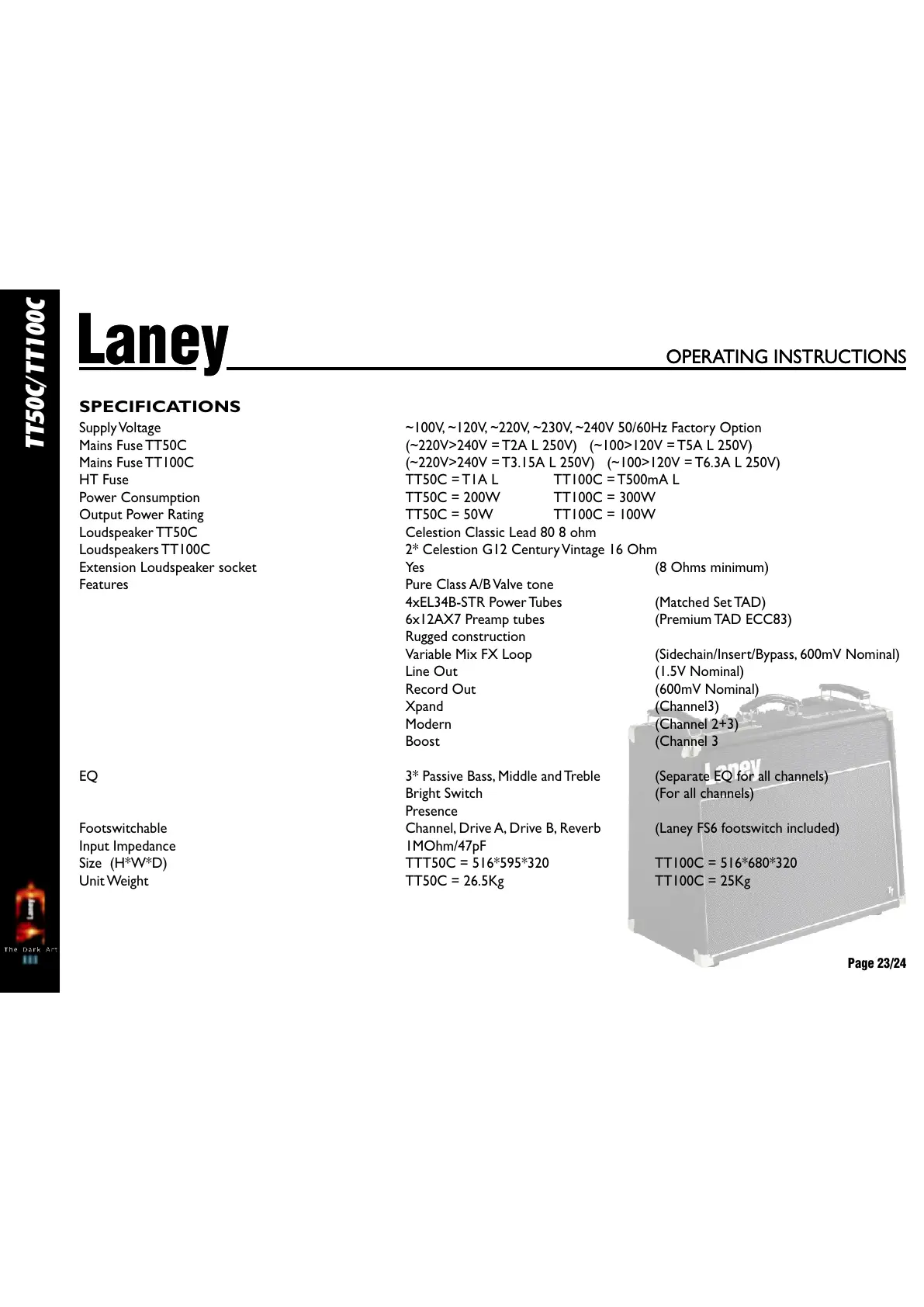

Laney TT100C - Page 23

Laney
OPERATING INSTRUCTIONS
Page 23/24
0V
H
1
0R
Laney
OPERATING INSTRUCTIONS
Supply Voltage ~100V, ~120V, ~220V, ~230V, ~240V 50/60Hz Factory Option
Mains Fuse TT50C (~220V>240V = T2A L 250V) (~100>120V = T5A L 250V)
HT Fuse TT50C = T1A L
Power Consumption TT50C = 200W TT100C = 300W
Output Power Rating TT50C = 50W TT100C = 100W
Features Pure Class A/B Valve tone
4xEL34B-STR Power Tubes (Matched Set TAD)
6x12AX7 Preamp tubes (Premium TAD ECC83)
Rugged construction
Variable Mix FX Loop (Sidechain/Insert/Bypass, 600mV Nominal)
Line Out (1.5V Nominal)
Record Out (600mV Nominal)
Xpand (Channel3)
Modern (Channel 2+3)
Boost (Channel 3
EQ 3* Passive Bass, Middle and Treble (Separate EQ for all channels)
Bright Switch (For all channels)
Presence
Footswitchable Channel, Drive A, Drive B, Reverb (Laney FS6 footswitch included)
Input Impedance 1MOhm/47pF
Size
Unit Weight TT50C = 26.5Kg TT100C = 25Kg
Mains Fuse TT100C (~220V>240V = T3.15A L 250V) (~100>120V = T6.3A L 250V)
TT100C = T500mA L
Loudspeaker TT50C Celestion Classic Lead 80 8 ohm
Loudspeakers TT100C 2* Celestion G12 Century Vintage 16 Ohm
Extension Loudspeaker socket Yes (8 Ohms minimum)
(H*W*D) TTT50C = 516*595*320 TT100C = 516*680*320
SPECIFICATIONS
T
T
5
C
/T
T
10 C
0
0
