Using the Lantronix SGX 5150 Serial Device Server
25
Wiring Changes
Wiring changes are needed when using SW12 to control power to the SGX-5150. The wire providing power to
the SGX-5150 is removed from the charge controller and connected into the CR300/CR6.

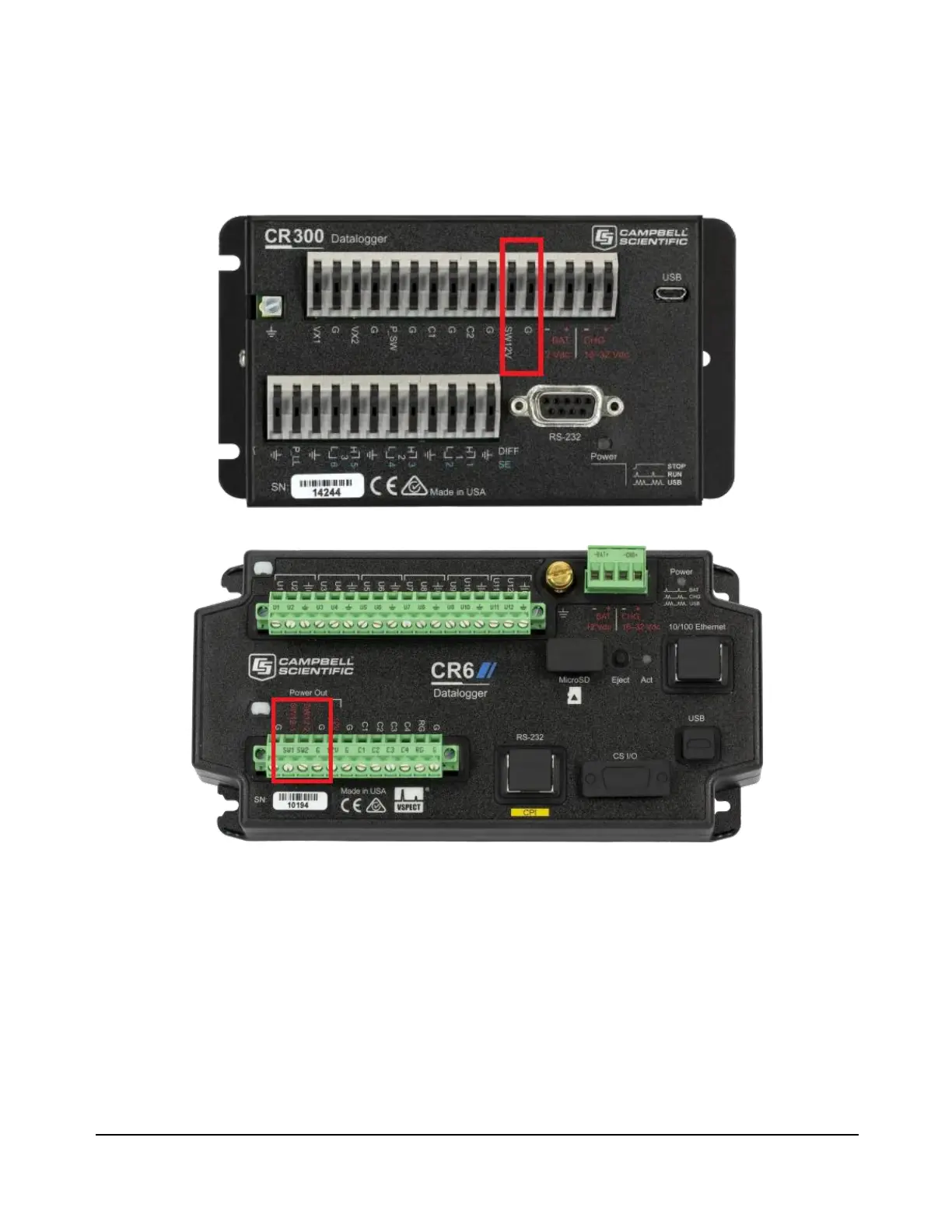

Below are images of both the CR300 and CR6 dataloggers for reference. The connected device will be
powered through the ports labeled as SW12 and G.
(Figure 36)
(Figure 37)
