Using the Lantronix SGX 5150 Serial Device Server
26
In the following examples the difference between the initial and updated wiring is shown for an MCLOG and a
MLDAQ.
Hint - These example uses a CH200 as the charge controller, however, this could also be a SunSaver.
MCLOG

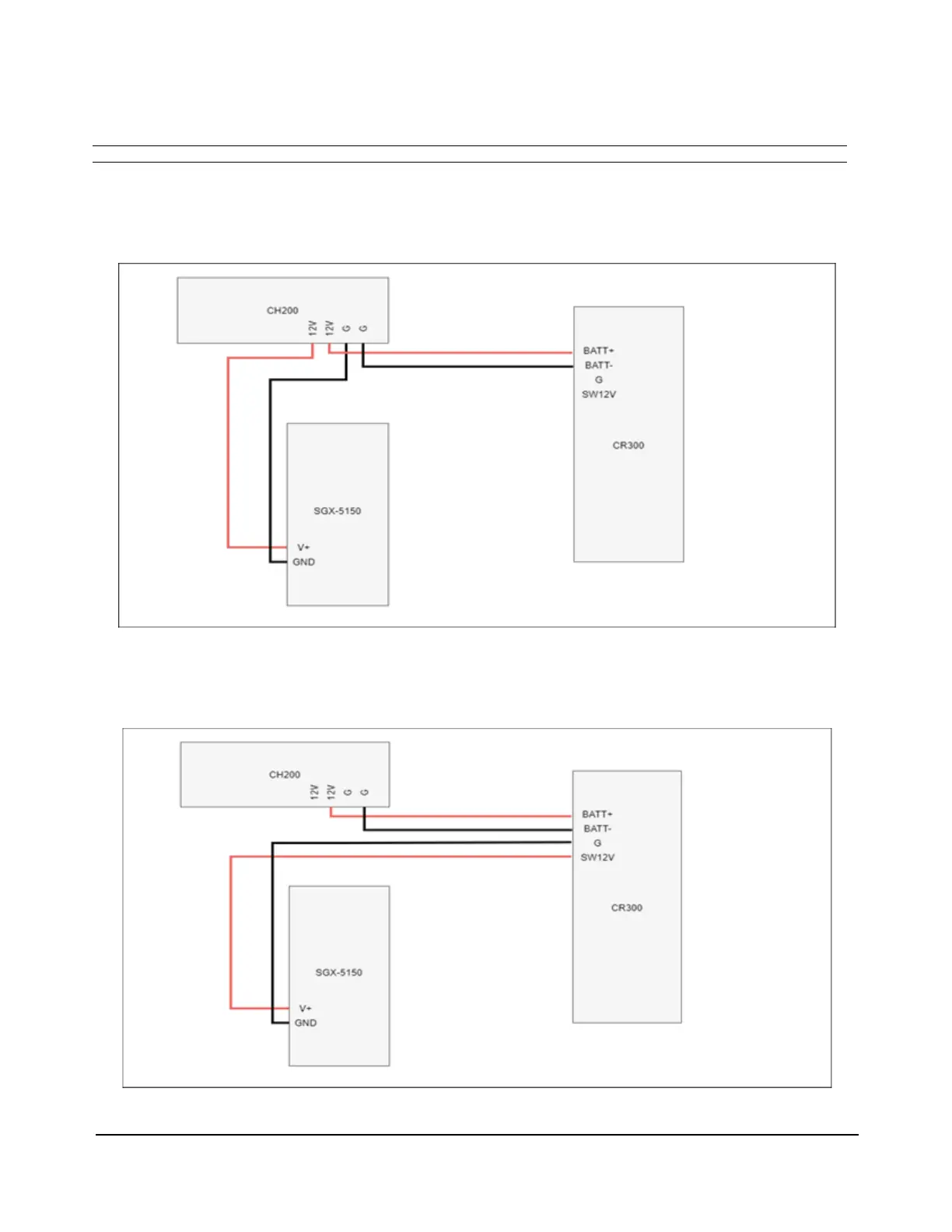

The first figure depicts the wire configuration when the MCLOG is shipped, with both the SGX 5150 and the
datalogger connecting to the charge controller.
(Figure 38)
In the next figure, the wires previously connecting the SGX 5150 to the charge controller have been
disconnected from the CH200 and reconnected directly to the SW12 port of the CR300, sending power to the
SGX 5150 through SW12.
(Figure 39)

Lantronix SGX 5150 Specifications

General

Certification	FCC ICES-003:2012 RED 2014/53/EU, EMCD 2014/30/EU, EN 300 328 V1.9.1, EN 301 489-1 V1.9.2, EN301 489-17 V2.2.1, EN 301 893 V1.8.1, EN 62311: 2008 AS/NZS CISPR 22, AS/NZS 4268: A1: 2013, AS/NZS 2772.2VCCI EN 55022:2010, EN 55024:2010, EN 61000-3-2:A2 2009, EN 61000-3-3: 2008 UL 60950/CSA 22.2 No. 60950, IEC 60950 CE LVD 2014/35/EU
LED indicators	Yes
Power requirements	9 - 30 VDC
Power over Ethernet (PoE)	No
Power consumption (typical)	1.9 W
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Security algorithms	802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-TLS, EAP-TTLS, FIPS 140-2, MSCHAPv2, TKIP, WPA, WPA2, WPA2-PSK, WPS
Authentication method	RADIUS
Ethernet LAN (RJ-45) ports	1
Supported protocols	IPv4/IPv6, TCP, UDP, ICMP, ARP, Auto-IP, DNS, (S)FTP
Frequency band	2.4 / 5 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s

Weight and Dimensions

Weight	350 g
Dimensions (WxDxH)	110 x 89 x 26 mm
