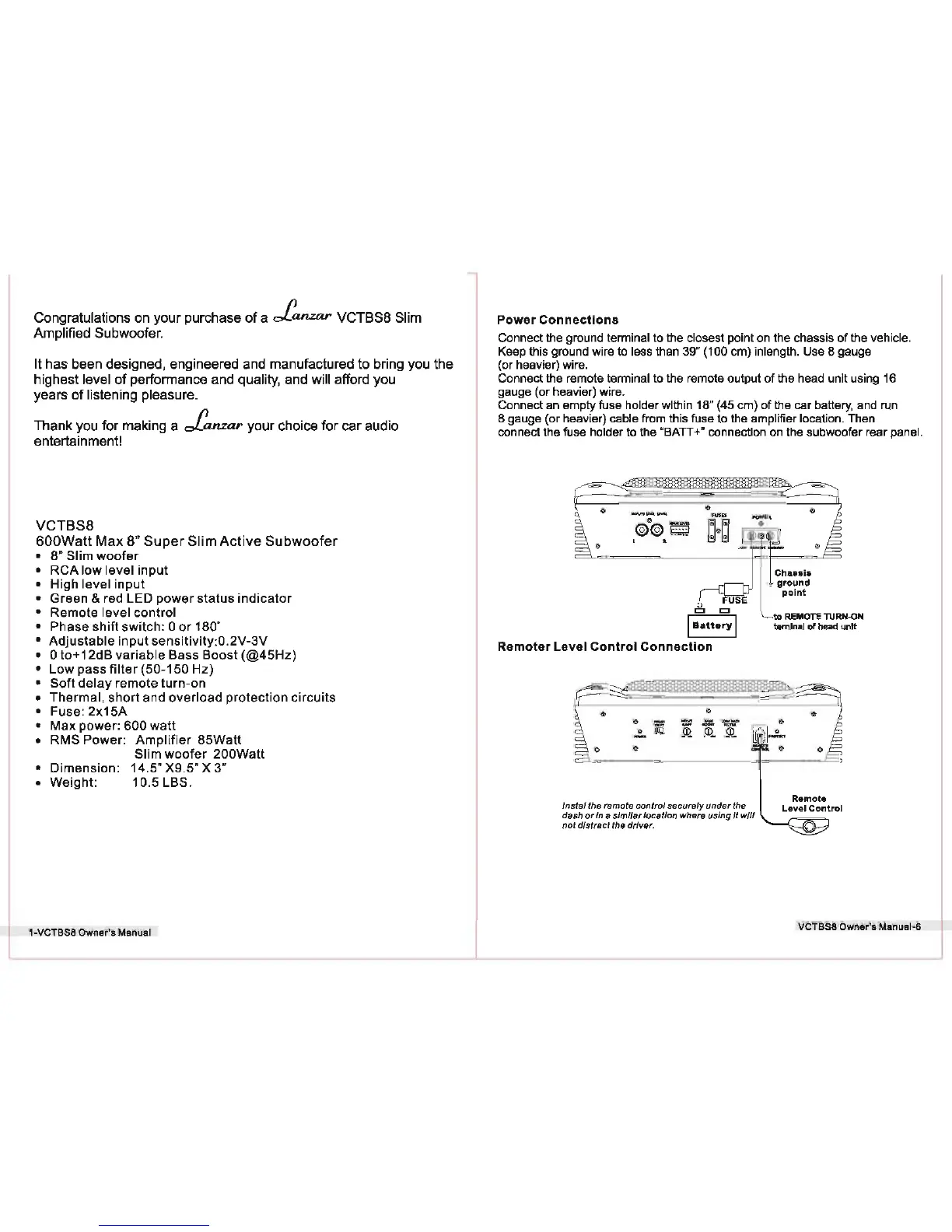

Congratulations on
your
purchase
of
a
cl!anzar
VCTBS8
Slim
Amplified Subwoofer.
It has been designed, engineered and manufactured
to
bring you
the
highest level
of
performance and quality, and will afford you
years
of
listening pleasure.
Thank
you
for
making a
cl!anzar
your
choice
for
car
audio
entertainment!
VCTBS8
600WaU
Max
8"
Super
Slim
Active
Subwoofer
• 8" Slim
woofer
• RCA low level
input
• High level
input
• Green & red LED
power
status
indicator
• Remote level control
• Phase
shift
switch: 0
or
180'
•
Adjustable
input
sensitivity:0.2V-3V
• 0 to+12dB variable Bass Boost (@45Hz)
• Low pass
filter
(50-150 Hz)
• Soft
delay
remote turn-on
• Thermal, short and overload protection circuits
•
Fuse:2x15A
•
Max
power: 600 watt
• RMS Power:
Amplifier
85Watt
Slim
woofer
200Watt
• Dimension: 14.5" X9.5" X 3"
• Weight: 10.5 LBS.
1-VCTBS8
Owne,·.
Manual
Power
Connections
Connect
the
ground
terminal
to
the
closest point
on
the
chassis of
the
vehicle.
Keep
this
ground
wire
to
less
than
39"
(100
cm)
inlength.
Use
8
gauge
(or heavier)
wire.
Connect
the
remote
terminal
to
the
remote
output of
the
head
unit
using
16
gauge
(or heavier)
wire.
Connect
an
empty
fuse
holder
within
18"
(45
cm)
of
the
car
battery,
and
run
8
gauge
(or heavier)
cable
from
this
fuse
to
the
amplifier location.
Then
connect
the
fuse
holder
to
the
"BATT
+"
connection
on
the
subwoofer
rear
panel.
•
•
•
FUSES
Ml
_
..
•
•
~
c c
I
Battery
I
Remoter Level
Control
Connection
•
•
_.
-
.=.
--
0
~
9l.
iID_
.~~
_ .
•
•
Instal
the
remote
control
securely
under
the
dash or
in
a similar location where using it will
not
distract
the
driver.
Cha
••
is
~
ground
point
•
to REMOTE TURN.()N
temlnal
of
head unit
•
•
•
•
Remote
Level Control
a
VCTBS8
Owne,·.
Manual-6
