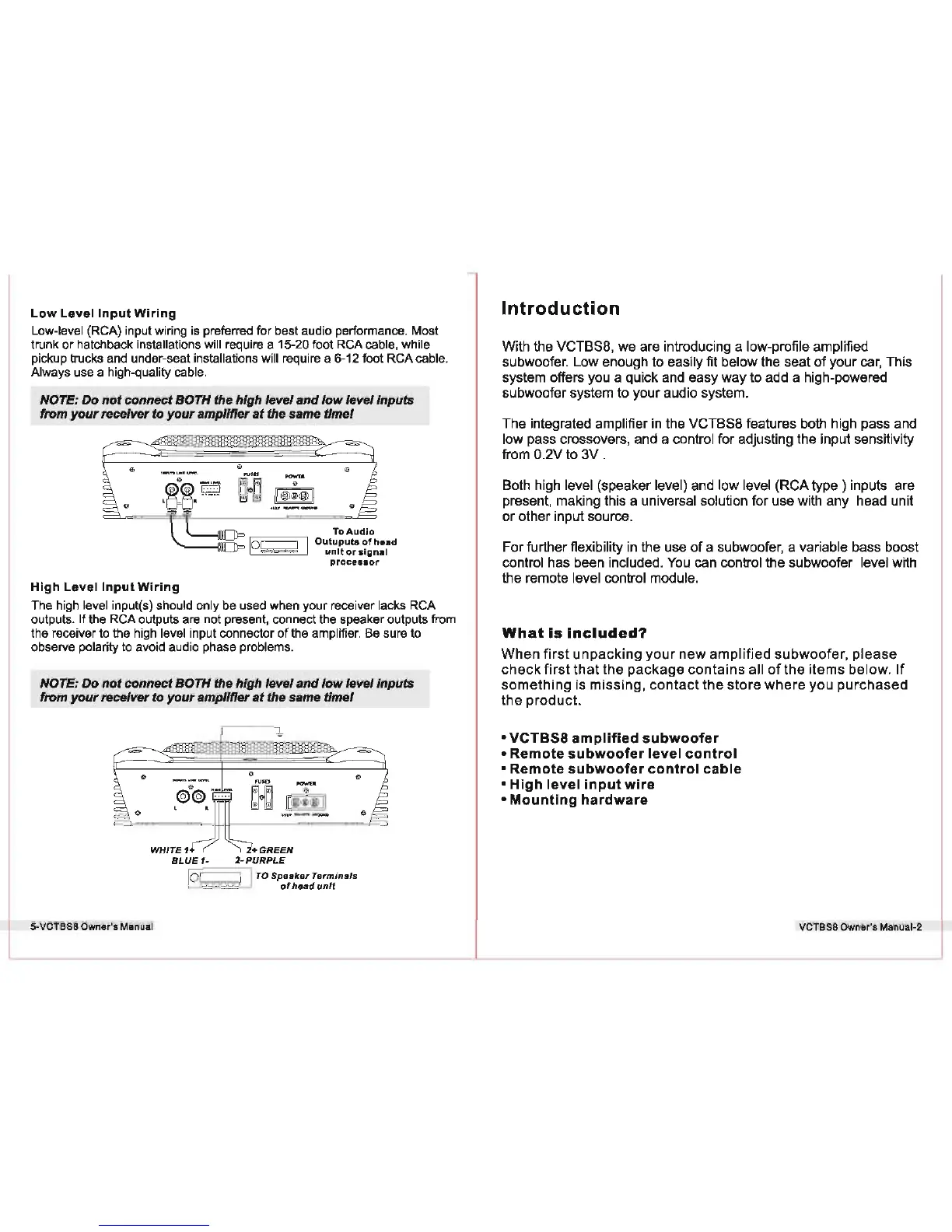

Low
Level
Input
Wiring
Low-level (RCA) input wiring is preferred for best audio performance. Most
trunk
or
hatchback installations will require a 15-20 foot RCA cable, while
pickup trucks and under-seat installations will require a 6-12 foot RCA cable.
Always use a high-quality cable.
NOTE: Do
not
connect BOTH the
high
level
and
low
level
inputs
from
your
receiver to
your
amplifier
at
the same time!
High
Level
Input
Wiring
FUS"
•
~
C
""".
•
I
~
I
•
ToAudio
10
1
I
I Outuputs
of
h.ad
======
,
unit
or
signal
proces.or
The high level input(s) should only be used when your receiver lacks RCA
outputs. If the RCA outputs are not present, connect the speaker outputs from
the receiver to the high level input connector
of
the amplifier. Be sure to
observe polarity to avoid audio phase problems.
NOTE: Do
not
connect BOTH the
high
level
and
low
level
inputs
from
your
receiver to
your
amplifier
at
the same time!
•
FUSES
•
~
·
c
""".
•
I
~
I
WHITE
1+
2+
GREEN
BLUE
1-
2-
PURPLE
f
o~'
~~IJI
TO
Spaakar
Terminals
L=
DDDDDD
,
of
head
unit
5-VCTBSB
Owner·.
Manual
•
Introduction
With the VCTBS8, we are introducing a low-profile amplified
subwoofer. Low enough to easily
fit
below the seat
of
your
car,
This
system offers you a quick and easy way to add a high-powered
subwoofer system to your audio system.
The integrated amplifier
in
the VCTBS8 features both high pass and
low pass crossovers, and a control for adjusting the input sensitivity
from
O.2V
to 3V .
Both high level (speaker level) and low level (RCA
type)
inputs are
present, making this a universal solution for use with any head unit
or other input source.
For further flexibility
in
the use
of
a subwoofer, a variable bass boost
control has been included.
You
can control the subwoofer level with
the remote level control module.
What
is
included?
When
first
unpacking
your
new
amplified
subwoofer, please
check
first
that
the package
contains
all
of
the
items
below.
If
something is missing,
contact
the store
where
you purchased
the product.
·
VCTBS8
amplified
subwoofer
•
Remote
subwoofer
level
control
•
Remote
subwoofer
control
cable
•
High
level
input
wire
•
Mounting
hardware
VCTBSB
Owner·.
Manual-2
