Lanzar Vibe E740V - Page 11

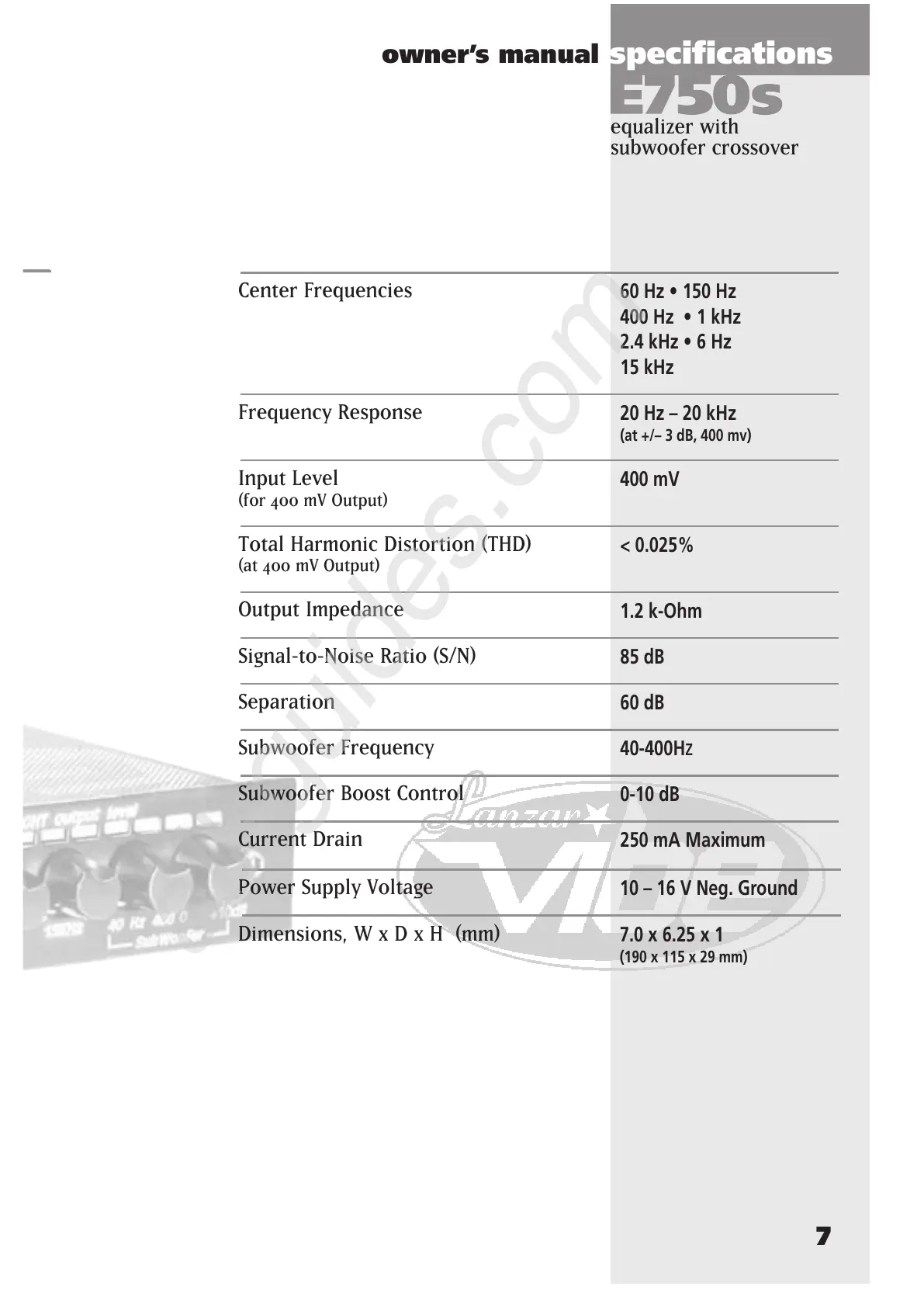

owner’s manual
specifications
Center Frequencies
60 Hz • 150 Hz
400 Hz • 1 kHz
2.4kHz•6Hz
15 kHz
Frequency Response
20 Hz – 20 kHz
(at +/– 3 dB, 400 mv)
Current Drain
250 mA Maximum
Subwoofer Boost Control
0-10 dB
Subwoofer Frequency
40-400H Z
Separation
60 dB
Signal-to-Noise Ratio (S/N)
85 dB
Output Impedance
1.2 k-Ohm
Total Harmonic Distortion (THD)
(at 400 mV Output)
< 0.025%
Input Level
(for 400 mV Output)
400 mV
7
Dimensions,WxDxH (mm)
7.0 x 6.25 x 1
(190 x 115 x 29 mm)
Power Supply Voltage
10 – 16 V Neg. Ground
equalizer with
subwoofer crossover
