owner’s manual

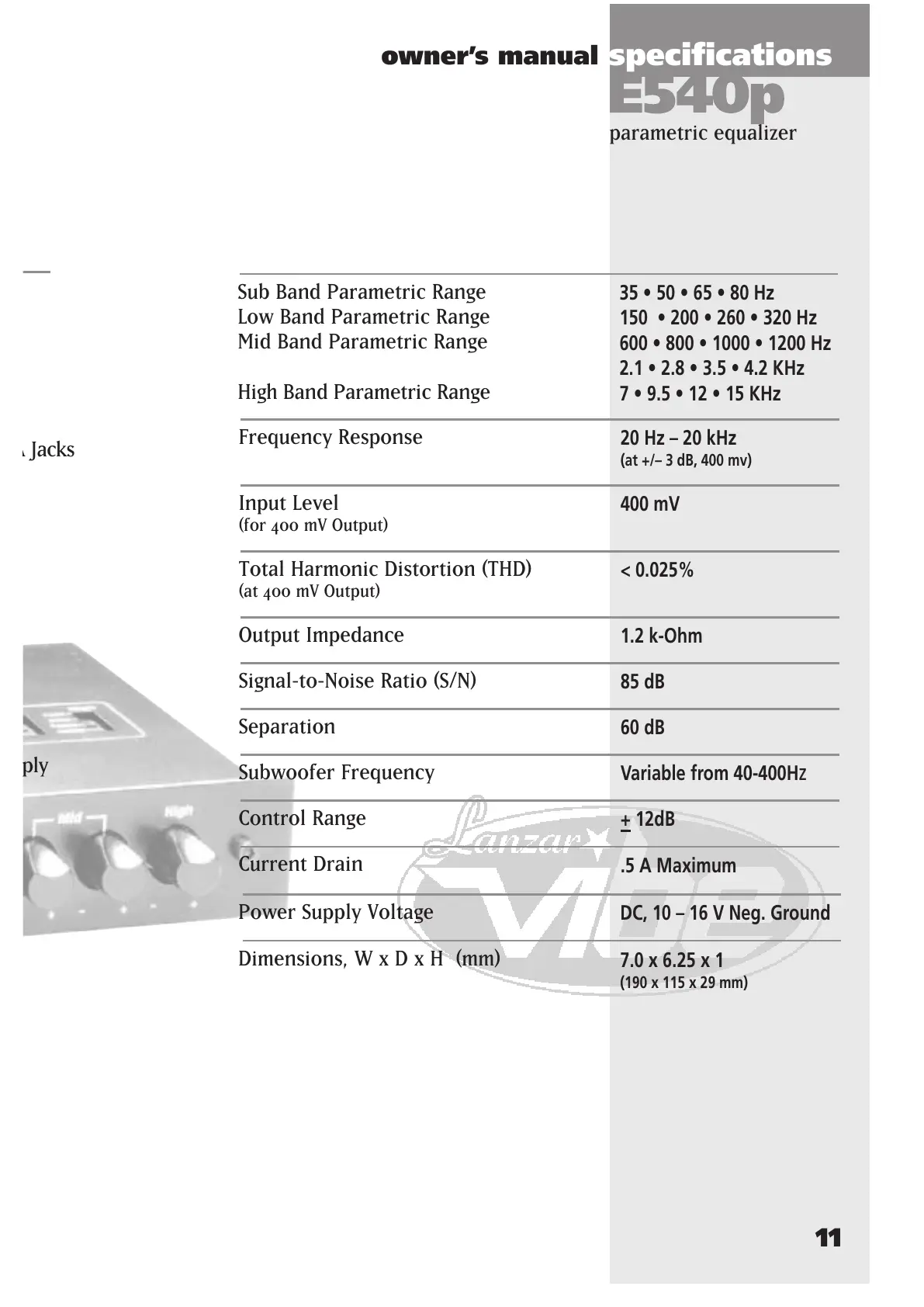

specifications
Sub Band Parametric Range
Low Band Parametric Range
Mid Band Parametric Range
High Band Parametric Range
35•50•65•80Hz
150 • 200 • 260 • 320 Hz
600 • 800 • 1000 • 1200 Hz
2.1 • 2.8 • 3.5 • 4.2 KHz
7•9.5•12•15KHz
Frequency Response
20 Hz – 20 kHz
(at +/– 3 dB, 400 mv)
Current Drain
.5 A Maximum
Control Range
+ 12dB
Subwoofer Frequency
Variable from 40-400H Z
Separation
60 dB
Signal-to-Noise Ratio (S/N)
85 dB
Output Impedance
1.2 k-Ohm
Total Harmonic Distortion (THD)
(at 400 mV Output)
< 0.025%
Input Level
(for 400 mV Output)
400 mV
11
Dimensions,WxDxH (mm)
7.0 x 6.25 x 1
(190 x 115 x 29 mm)
Power Supply Voltage
DC, 10 – 16 V Neg. Ground
parametric equalizer
