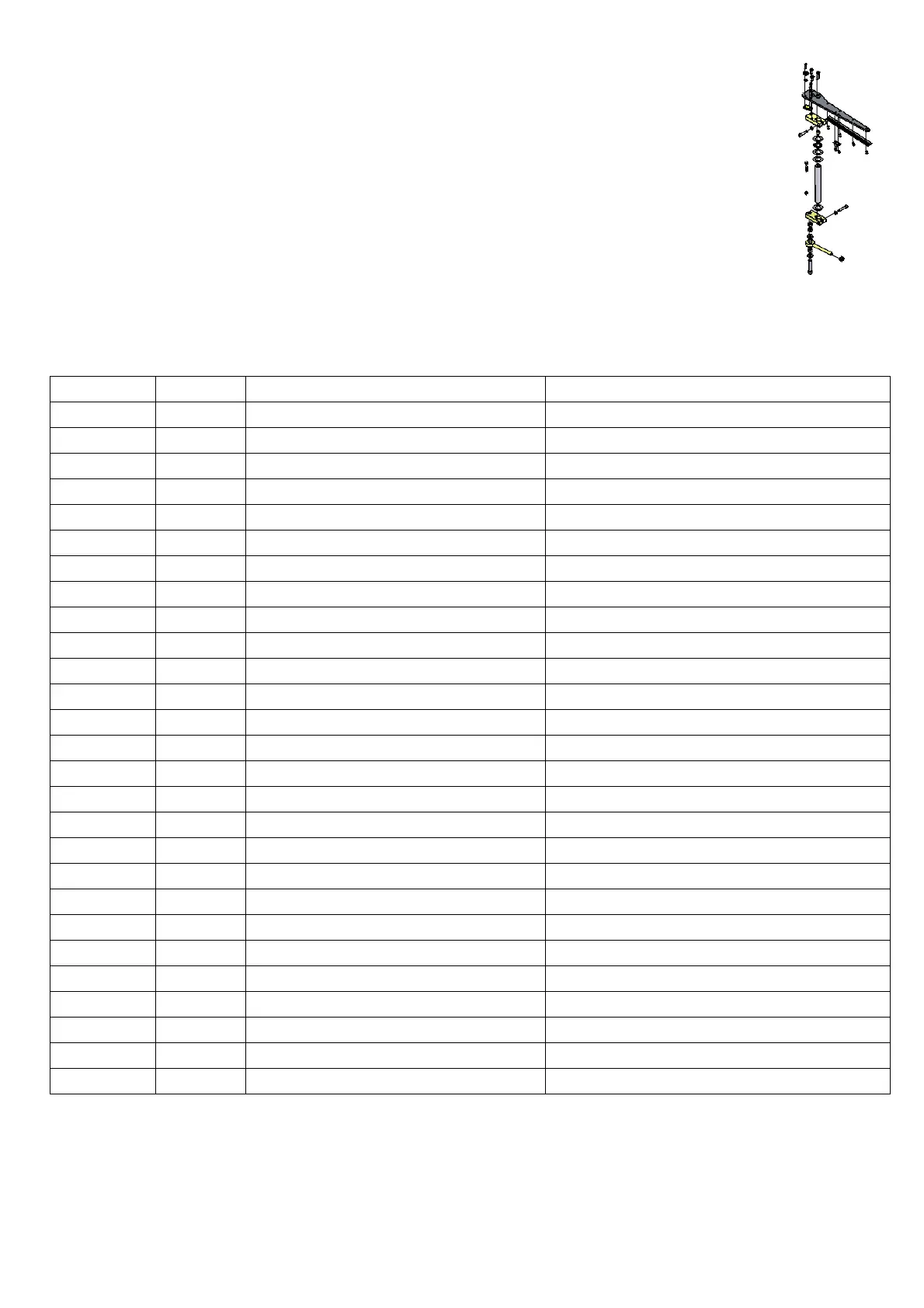

LAPORTE EASYTRAP 75 - Throwing Arm Axis (Axe Armement) Parts; Throwing Arm Axis Components List

No.ARTICLE QUANTITÉ No.PIÈCE DESCRIPTION
1 4 1302265 RD BUTEE AS 25-42-1 THRUST WASHER AS 25-42-1
2 1 1307643 SUPP BRAS L2 B THROW ARM CON BLOCK L2
3 1 1307721 ENTRETOISE AXE ARM SPAGER AXIS ARM MINI PC 75
4 1 1307644 MANETON RESSORT C CRANCK PIN SPRING T65
5 2 1400434 CLAVETTE 8-7-16 2BR KEY 8-7-16 2BR
6 1 1307704 ENTRETOISE L2 A SPACER L2 MINI PC 75
7 1 1400210 VIS TFHC 1Z 08-035 SCREW TFHC 1Z 08-035
8 1 1400431 CLAVETTE 8-7-30 2BR KEY 8-7-30 2BR
9 1 1400374 VIS TCHC 8Z 12-060 SCREW TCHC 8Z 12-060
10 3 1400009 ECROU HU AZ 12-000 NUT HU AZ 12-000
11 3 1400050 RD PLT MOY AZ 12-000 FLAT WASHER MED AZ 12-000
12 2 1400068 RD GROWER AZ 08-000 GROWER WASHER AZ 08-000
13 2 1400187 VIS TCHC 8Z 08-040 SCREW TCHC 8Z 08-040
14 1 1307720 AXE ARMEMENT C MAIN SPINDLE MINI PC75
15 2 1400209 VIS TFHC 1Z 08-020 SCREW TFHC 1Z 08-020
16 1 1400319 VIS TFHC 8Z 06-016 SCREW TFHC 8Z 06-016
17 1 1400047 RD PLT MOY AZ 06-014-1.2 FLAT WASHER MED AZ 06-014-1.2
18 1 1307598 ROUL 608 EE 8x22x7 BEARING 608 EE 8-22-7
19 1 1400208 VIS TFHC 8Z 06-025 SCREW TFHC 8Z 06-025
20 2 1400117 VIS TH6.8 05-008 SCREW TH6.8 05-008
21 4 1400139 VIS TH6.8 05-010 SCREW TH6.8 05-010
22 1 1307722 BRAS DE LANCEMENT E TROWING ARM MINI PC75
23 1 1302070 REGLETTE 185-2001 ARM RUBBER 185-2001
24 1 1307639 PLAQ RENF BRAS B THROWING ARM SUPPORT
25 1 1307727 BALAIS BRAS LANC A ARM BRUSH LANC THROWING MINI PC75
26 1 1308076 TIRANT RES T75 A THREADED EYE ROD MINI PC75
27 1 1306095 PALIER IGLI MFM 12x18x15 BUSHING IGLIDURE
Note: Certain spare parts
are not sold separately.
ATTENTION: Certaines pièces ne peuvent
êtres vendues séparément.
EASYTRAP 75
S ENS AXE ARMEMENT EASYTRAP75
C:\sébastien\Solidworks\ACTUEL\EASY TRAP 75\AXE ARMEMENT T75\
PAGE 2/2
17.07.2005 AS
