7.1.9 RC 05 RELEASE

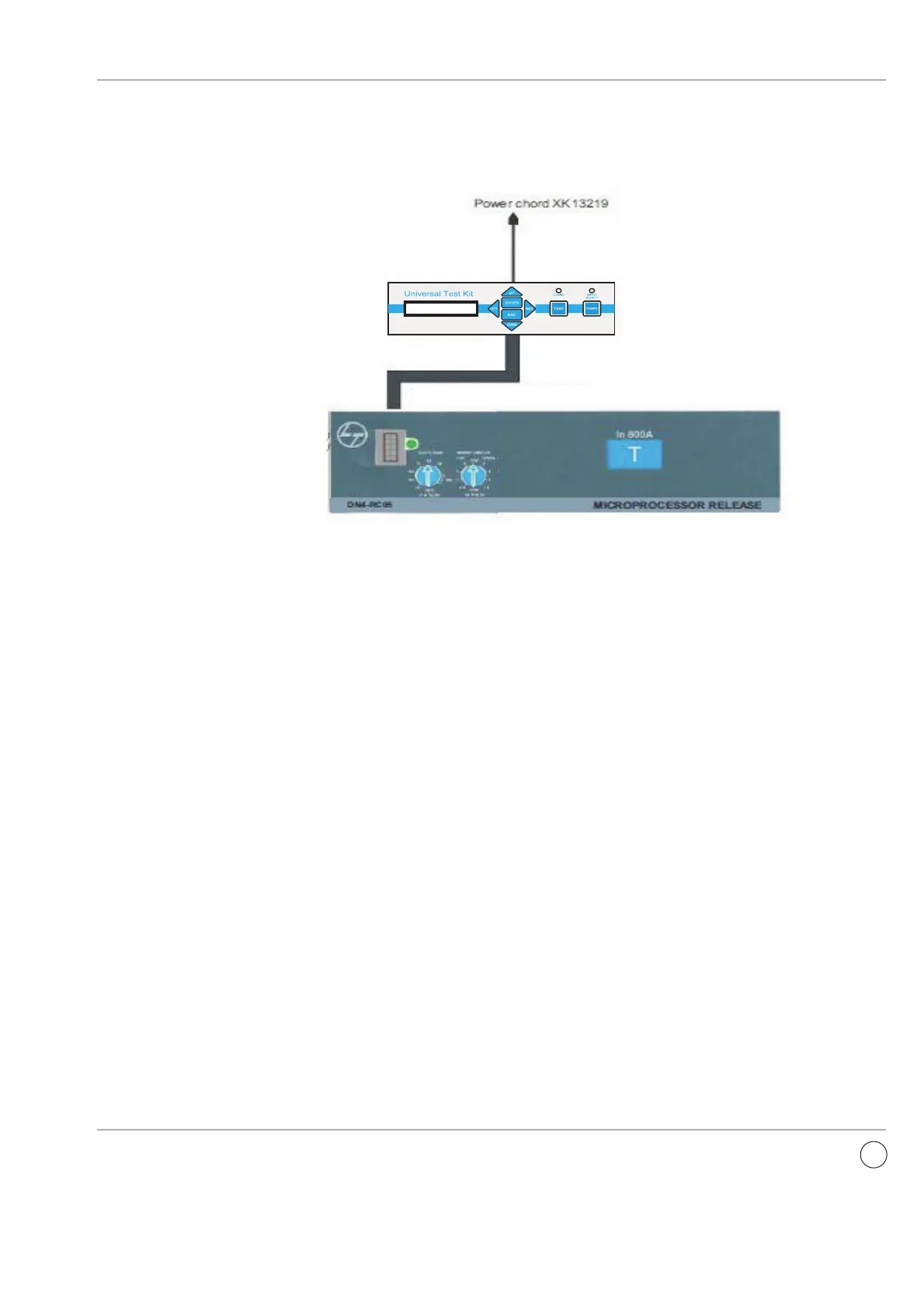

1) Connect CL00038 to release.
2)
3)
Connect the power chord XK13219 to test kit.
4)
Turn on test kit, do the settings of protections to be tested as per
Table 2.
5)
Do the testing.
Reposition the breaker before start of each test to ON condition.
Testkit Connector Cable CL00038
SIM-KIT
