Larsen & Toubro Universal Test Kit User Manual

7 How to connect with each release
7.1 Precautions to be taken while connecting to each release

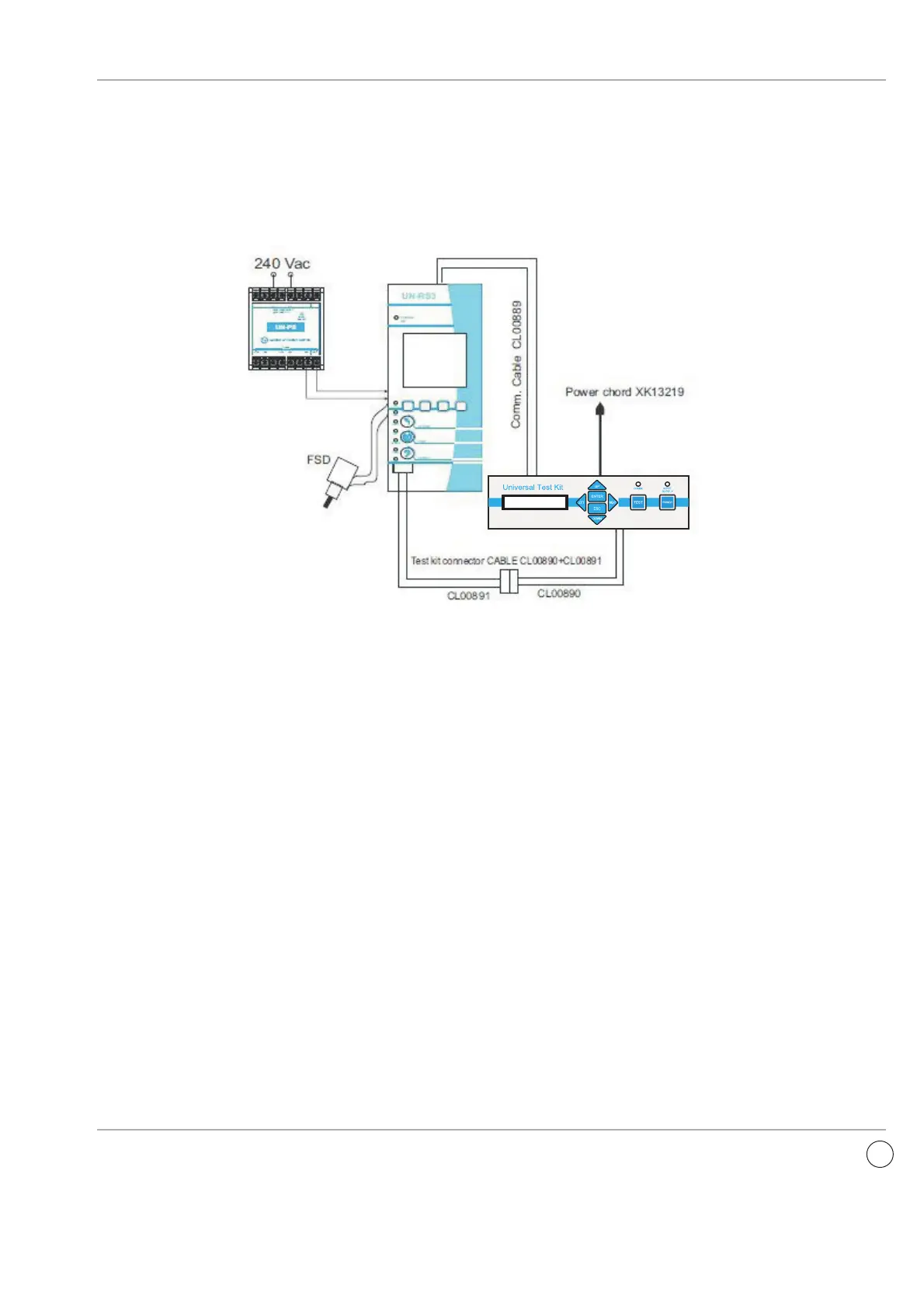

7.1.1 UN-RS3 RELEASE TEST SET UP
1) Connect the UN-PS module (AS+, AS-) to release.
2) Connect CL00889 (comm. Cable) to release.
3) Connect CL00890 & CL00891 back to back & the other end of the
CL00891 to test connector of the release.
4) Connect the Flux Shift Device to release.
5) Short digital i/ps DIO-DI1 on the release to get the fault indication after
every test.
6) Connect power chord XK13219 to Test kit.
7) TURN ON UN-PS module. Check the baud rate & node address of the
release. Set it to 9600 &1 respectively.
8) Turn on Test kit and set the COMM ID as 1. Do the settings of protections to
be tested as per Table1.
15
SIM-KIT
