MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE
INSTALLATION, USE AND MAINTENANCE MANUAL

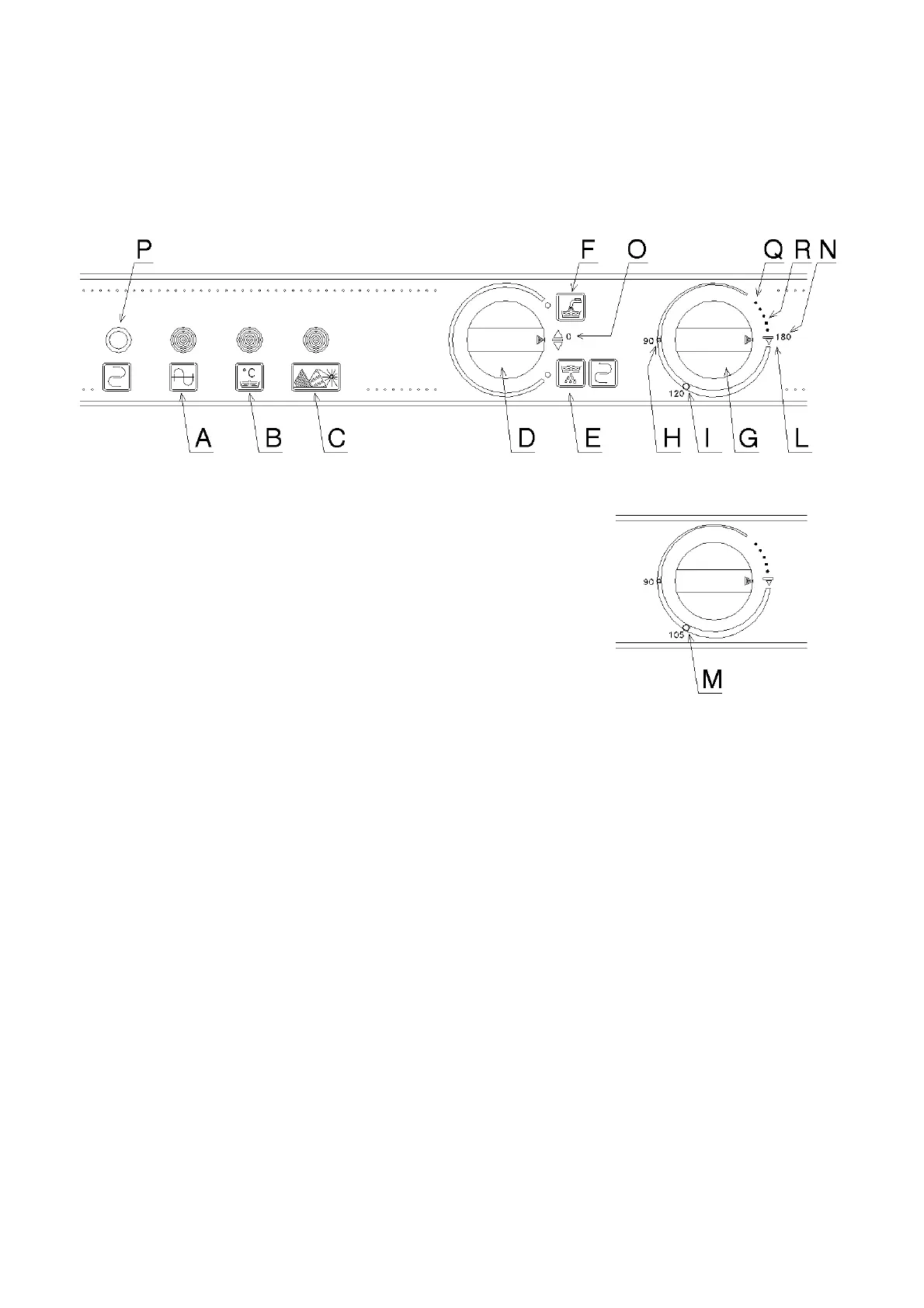

CONTROL PANEL
16
A - Green lamp : appliance powered, water loading and heating cycle.
B - Green lamp : appliance ready to start the washing cycle.
C - Green lamp : cycle or tank draining cycle in progress, for models with drain pump.
D - Main switch knob and tank water loading/draining.
O position - Appliance stop or switching off.
F position - Appliance starting and tank water loading/heating.
E position - Tank water draining for models with drain pump.
Regeneration position for 3-..K 3-1...K models.
G - Washing programme selector knob (see following tables).
The regeneration phases are marked through G knob:
Q (°°) position Dripping pause (5 seconds).
R (> > > >) position Rinsing cycle (15 seconds).
N (180) position End of washing cycle.
P - Regeneration cycle start switch (with in-built lamp).
LS 3 models
Variant for model LS 4
