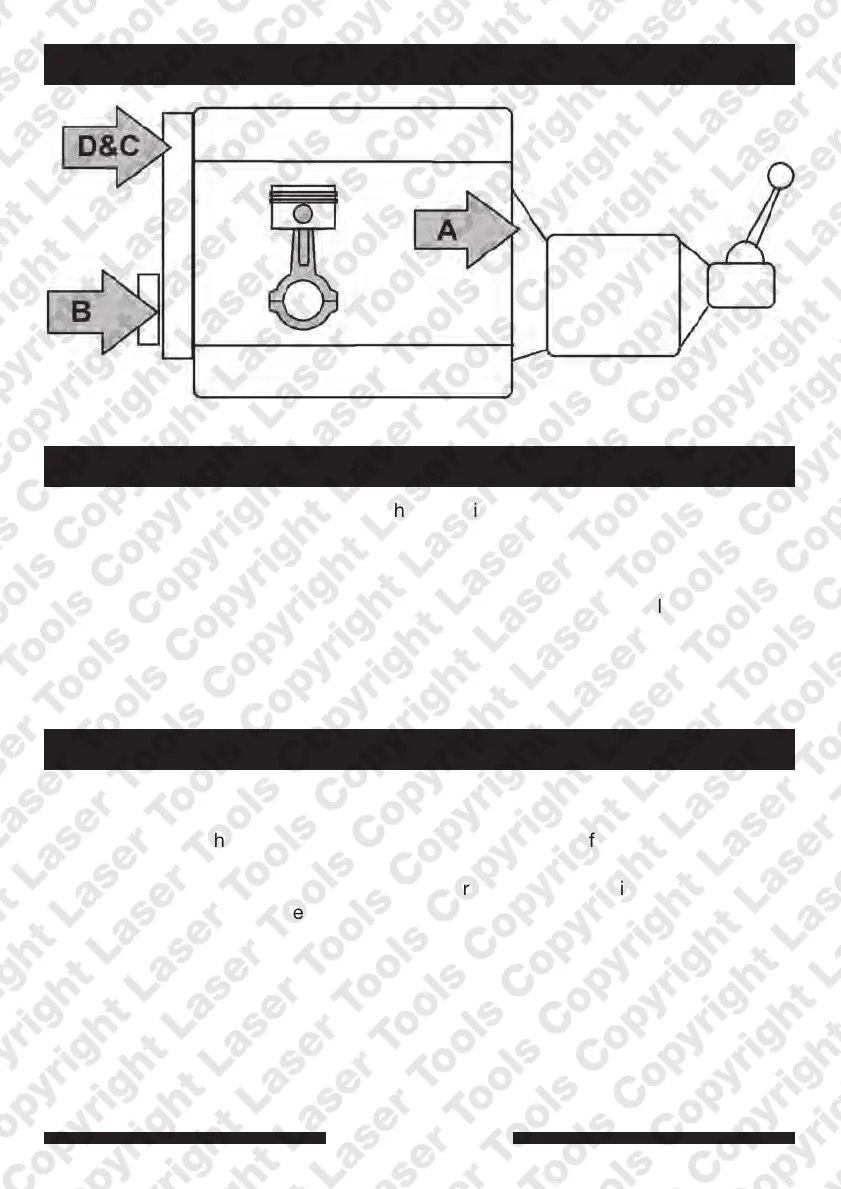

Where Used
Preparation
Important Notes
• Remove starter Motor and install flywheel locking tool
• Remove auxiliary drive belt.
• Remove crankshaft pulley.
• Remove timing belt cover.
• Additional component may need to be removed according to vehicle model.
• Water pump “stretchy” auxiliary drive belt once removed should not be re-used.
• Mark position of RH engine mounting before removal.
• Replacement of the timing belt also requires replacement of the tensioner and
cover.
• Alignment of the crankshaft gear and the intermediate gear timing marks occurs
every fourteenth turn of the crankshaft.
